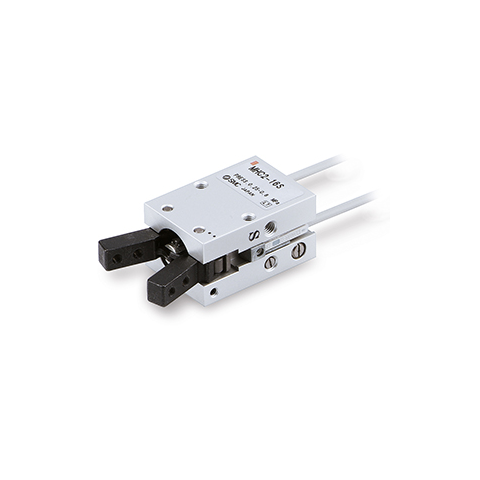

SMC MHC2 Series, Air Gripper, Angular Style , MHC2-10D-M9N

Description

OVERVIEW



Grippers with angular finger opening from 30° to -10° make the MHC2 suitable for workpieces of odd shapes and where space is too tight to accommodate a parallel type gripper.

  • Bore sizes: 6, 10, 16, 20, 25 mm
  • Built-in throttle for speed adjustment
  • Option for NSF-H1, food grade lubricant
  • Auto switch capable





Applicable Auto Switches



Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
 connector		 Applicable load
DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
3-wire (PNP) M9PV M9P O O O o o
2-wire 12 V M9BV M9B O O O o o -
Diagnostic indication
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
3-wire (PNP) M9PWV M9PW O O O o o
2-wire 12 V M9BWV M9BW O O O o o -
Water resistant
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** o o O o o IC Circuit
3-wire (PNP) M9PAV** M9PA** o o O o o
2-wire 12 V M9BAV** M9BA** o o O o o -

Product form

OVERVIEW Grippers with angular finger opening from 30° to -10° make the MHC2 suitable for workpieces of odd shapes and where... Read more

SKU: MHC2-10D-M9N

$168.81 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
