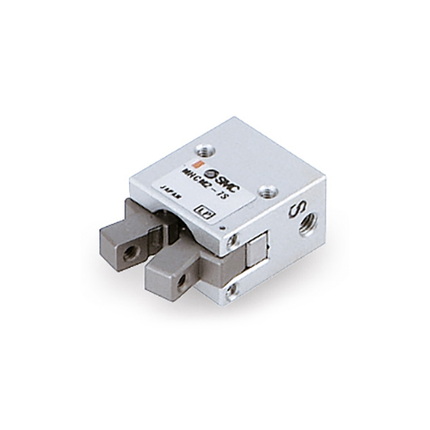

SMC MHCM2 Air Gripper Series, Fulcrum Opening Type, Small Type, MHCM2-7S

Description

OVERVIEW



The finger opening angle ranges from 20° to -7° making the MHCM2 suitable for workpieces of odd shapes and where space is too tight to accommodate a parallel type gripper.

  • Bore sizes: 7 mm
  • Built-in throttle for speed adjustment
  • Option for NSF-H1, food grade lubricant
  • Bore size: ø7mm





Specifications



Fluid Air
Operating pressure 0.4 to 0.6 MPa
Ambient and fluid temperature –10 to 60°C
Repeatability ±0.02 mm
Maximum operating frequency 180 c.p.m.
Lubrication Non-lube
Action Single acting (Normally open)



Model

Action Model Cylinder bore (mm) Gripping moment Note) Opening/Closing angle (Both sides) Weight (g)
(Effective value) Nàm
Single acting (Normally open) MHCM2-7S 7 0.017 20° to –7° 9.5
Product form

OVERVIEW The finger opening angle ranges from 20° to -7° making the MHCM2 suitable for workpieces of odd shapes and... Read more

SKU: MHCM2-7S

$75.00 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW



    The finger opening angle ranges from 20° to -7° making the MHCM2 suitable for workpieces of odd shapes and where space is too tight to accommodate a parallel type gripper.

    • Bore sizes: 7 mm
    • Built-in throttle for speed adjustment
    • Option for NSF-H1, food grade lubricant
    • Bore size: ø7mm





    Specifications



    Fluid Air
    Operating pressure 0.4 to 0.6 MPa
    Ambient and fluid temperature –10 to 60°C
    Repeatability ±0.02 mm
    Maximum operating frequency 180 c.p.m.
    Lubrication Non-lube
    Action Single acting (Normally open)



    Model

    Action Model Cylinder bore (mm) Gripping moment Note) Opening/Closing angle (Both sides) Weight (g)
    (Effective value) Nàm
    Single acting (Normally open) MHCM2-7S 7 0.017 20° to –7° 9.5
