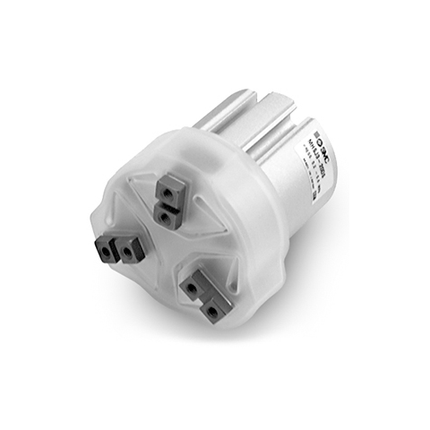

SMC MHSHJ3 Series, Air Gripper, 3 Finger, Through Hole Type, w/Dust Cover, MHSHJ3-50D

Description

OVERVIEW



The MHSHJ3 Series, 3-finger grippers adds a center through-hole to accommodate a push actuator to ensure proper release of work pieces. These are optimal for gripping spherical, cylindrical or round work pieces and loading or unloading of work pieces from the chuck of a machine tool. Its wedge cam design minimizes its overall size while retaining a high holding force making it suitable for end-of-arm (end effector) or space constrained pick and place applications.A dust cover protects from the work environment.

  • Double acting, wedge cam
  • High repeatability: ±0.01 mm
  • Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80 mm
  • Dust cover: chloroprene rubber (CR), fluororubber (FKM), silicone rubber (Si)
  • Option for NSF-H1, food grade lubricant





Applicable Auto Switches



Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
 connector		 Applicable load
DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
3-wire (PNP) M9PV M9P O O O o o
2-wire 12 V M9BV M9B O O O o o -
Diagnostic indication
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
3-wire (PNP) M9PWV M9PW O O O o o
2-wire 12 V M9BWV M9BW O O O o o -
Water resistant
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** o o O o o IC Circuit
3-wire (PNP) M9PAV** M9PA** o o O o o
2-wire 12 V M9BAV** M9BA** o o O o o -
Product form

OVERVIEW The MHSHJ3 Series, 3-finger grippers adds a center through-hole to accommodate a push actuator to ensure proper release of... Read more

SKU: MHSHJ3-50D

$594.09 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW



      The MHSHJ3 Series, 3-finger grippers adds a center through-hole to accommodate a push actuator to ensure proper release of work pieces. These are optimal for gripping spherical, cylindrical or round work pieces and loading or unloading of work pieces from the chuck of a machine tool. Its wedge cam design minimizes its overall size while retaining a high holding force making it suitable for end-of-arm (end effector) or space constrained pick and place applications.A dust cover protects from the work environment.

      • Double acting, wedge cam
      • High repeatability: ±0.01 mm
      • Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80 mm
      • Dust cover: chloroprene rubber (CR), fluororubber (FKM), silicone rubber (Si)
      • Option for NSF-H1, food grade lubricant





      Applicable Auto Switches



      Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
       connector      		 Applicable load
      DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
      Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
      3-wire (PNP) M9PV M9P O O O o o
      2-wire 12 V M9BV M9B O O O o o -
      Diagnostic indication
      (2-color indicator)      		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
      3-wire (PNP) M9PWV M9PW O O O o o
      2-wire 12 V M9BWV M9BW O O O o o -
      Water resistant
      (2-color indicator)      		 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** o o O o o IC Circuit
      3-wire (PNP) M9PAV** M9PA** o o O o o
      2-wire 12 V M9BAV** M9BA** o o O o o -
