Description

OVERVIEW

Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
Small auto switches can be attached in 4 directions
There is no auto switch protrusion
Stroke up to 300mm is possible
Auto switches are attached (MDU series: MDU, MDUW) )

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
size	25	Piston area equivalent to ø25
Types of port screws	-	M screw, Rc
cylinder stroke	20	cylinder stroke 20mm
rod end shape	M	rod end male thread
auto switch	M9B	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without

Product form

OVERVIEW Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple... Read more

SKU: MDUB25-20DMZ-M9B

$160.24 Excl. VAT

Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
Small auto switches can be attached in 4 directions
There is no auto switch protrusion
Stroke up to 300mm is possible
Auto switches are attached (MDU series: MDU, MDUW) )

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
size	25	Piston area equivalent to ø25
Types of port screws	-	M screw, Rc
cylinder stroke	20	cylinder stroke 20mm
rod end shape	M	rod end male thread
auto switch	M9B	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without

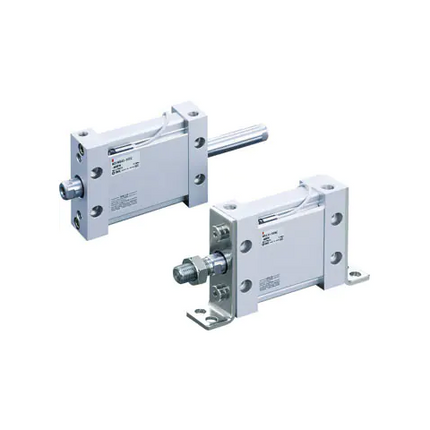

Name: SMC MU Series Plate Cylinder, Double Acting, Single Rod, MDUB25-20DMZ-M9B
Brand: SMC
SKU: MDUB25-20DMZ-M9B
Price: 160.24 USD
