Description

OVERVIEW

Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
Small auto switches can be attached in 4 directions
There is no auto switch protrusion
Stroke up to 300mm is possible
Auto switches are attached (MDU series: MDU, MDUW) )

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
size	40	Piston area equivalent to ø40
Types of port screws	-	M screw, Rc
cylinder stroke	100	cylinder stroke 100mm
rod end shape	M	rod end male thread
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without

Product form

OVERVIEW Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple... Read more

SKU: MDUB40-100DMZ

$90.46 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
Small auto switches can be attached in 4 directions
There is no auto switch protrusion
Stroke up to 300mm is possible
Auto switches are attached (MDU series: MDU, MDUW) )

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
size	40	Piston area equivalent to ø40
Types of port screws	-	M screw, Rc
cylinder stroke	100	cylinder stroke 100mm
rod end shape	M	rod end male thread
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without

Reviews

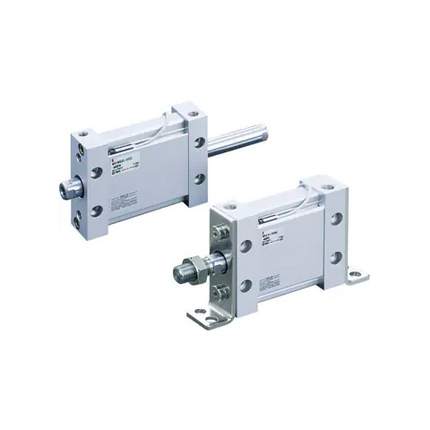

Name: SMC MU Series Plate Cylinder, Double Acting, Single Rod, MDUB40-100DMZ
Brand: SMC
SKU: MDUB40-100DMZ
Price: 90.46 USD
Availability: InStock

SMC MU Series Plate Cylinder, Double Acting, Single Rod, MDUB40-100DMZ
