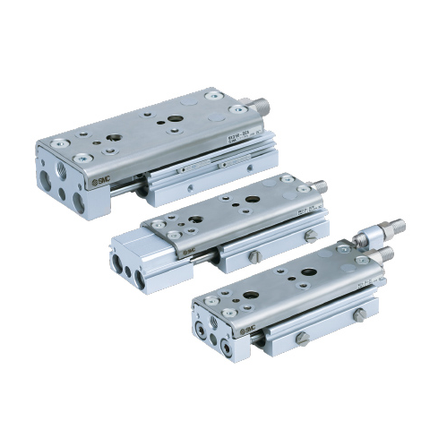

SMC MXQA Series Air Slide Table, Sides Piping Type, MXQ20A-50Z-M9BW

Description

Description

OVERVIEW


The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

  • Overall height reduction: 10% reduction (27mm: conventional 30mm)
  • Product mass: 22% reduction (298g: conventional 380g)
  • Allowable kinetic energy: 64% improvement (0.09J: conventional 0.054J)



Specification item model symbol Specification information
cylinder inner diameter 20 20
body options A Both side piping type
stroke 50 stroke 50mm
adjustment options Z without adjusting unit
function options - no options
auto switch M9BW 2-color display, solid state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol - 2 with or without
Custom made specifications - standard



Product form

OVERVIEW The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing... Read more

SKU: MXQ20A-50Z-M9BW

$590.72 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
      Description

      Description

      OVERVIEW


      The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

      • Overall height reduction: 10% reduction (27mm: conventional 30mm)
      • Product mass: 22% reduction (298g: conventional 380g)
      • Allowable kinetic energy: 64% improvement (0.09J: conventional 0.054J)



      Specification item model symbol Specification information
      cylinder inner diameter 20 20
      body options A Both side piping type
      stroke 50 stroke 50mm
      adjustment options Z without adjusting unit
      function options - no options
      auto switch M9BW 2-color display, solid state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V (DC10 to 28V)
      Auto switch additional symbol - 2 with or without
      Custom made specifications - standard
