Description

OVERVIEW

The MY2 high precision guide cylinder is available in bore sizes 16mm, 25mm and 40mm. This series has been designed with a high precision single or double axis guide to create a compact, low profile cylinder. Maintenance has been simplified by allowing the cylinder to be detached without disturbing the guide unit and work piece.

Compared with the mechanical joint rodless cylinder MY1H series, the height is reduced by up to 30%, and the drive part cylinder can be replaced with the workpiece installed.

Specification item	model symbol	Specification information
Guide additional sign	HT	2 axis linear guide
tube inner diameter	40	tube inner diameter 40mm
Types of port screws	-	M screw, Rc
stroke	450	stroke 450mm
Stroke adjustment unit symbol	-	without adjusting unit
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW The MY2 high precision guide cylinder is available in bore sizes 16mm, 25mm and 40mm. This series has been... Read more

SKU: MY2HT40G-450

$1,015.50 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

OVERVIEW

The MY2 high precision guide cylinder is available in bore sizes 16mm, 25mm and 40mm. This series has been designed with a high precision single or double axis guide to create a compact, low profile cylinder. Maintenance has been simplified by allowing the cylinder to be detached without disturbing the guide unit and work piece.

Compared with the mechanical joint rodless cylinder MY1H series, the height is reduced by up to 30%, and the drive part cylinder can be replaced with the workpiece installed.

Specification item	model symbol	Specification information
Guide additional sign	HT	2 axis linear guide
tube inner diameter	40	tube inner diameter 40mm
Types of port screws	-	M screw, Rc
stroke	450	stroke 450mm
Stroke adjustment unit symbol	-	without adjusting unit
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

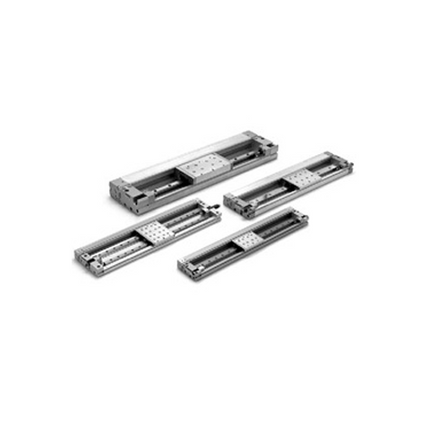

Name: SMC MY2H/HT Series Mechanical Joint Rodless Cylinder, Linear Guide Type, MY2HT40G-450
Brand: SMC
SKU: MY2HT40G-450
Price: 1015.5 USD
Availability: InStock

SMC MY2H/HT Series Mechanical Joint Rodless Cylinder, Linear Guide Type, MY2HT40G-450
