OVERVIEW

For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

Mechanical joint rodless cylinder
Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80, 100 *
Strokes from 100mm through 5000mm depending upon bore size
With one or two stroke adjusters with or without shocks
Variety of switches and lead wire lengths
Five types of guide types are standardized.
A wide selection is possible according to the load mass and required accuracy.

Specification item	model symbol	Specification information
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M thread (ø10 to ø20), Rc (ø25 to ø100)
Piping type	G	centralized piping
cylinder stroke	500	Cylinder stroke 500mm
Stroke adjustment unit symbol	L	Left: With shock absorber for L low load + adjustment bolt Right: With shock absorber for L low load + adjustment bolt
auto switch	M9BL	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution.... Read more

SKU: MY1B20G-500L-M9BL

$350.62 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

Mechanical joint rodless cylinder
Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80, 100 *
Strokes from 100mm through 5000mm depending upon bore size
With one or two stroke adjusters with or without shocks
Variety of switches and lead wire lengths
Five types of guide types are standardized.
A wide selection is possible according to the load mass and required accuracy.

Specification item	model symbol	Specification information
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M thread (ø10 to ø20), Rc (ø25 to ø100)
Piping type	G	centralized piping
cylinder stroke	500	Cylinder stroke 500mm
Stroke adjustment unit symbol	L	Left: With shock absorber for L low load + adjustment bolt Right: With shock absorber for L low load + adjustment bolt
auto switch	M9BL	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

Name: SMC MY1B Series mechanical joint rodless cylinder, MY1B20G-500L-M9BL
Brand: SMC
SKU: MY1B20G-500L-M9BL
Price: 350.62 USD
Availability: InStock

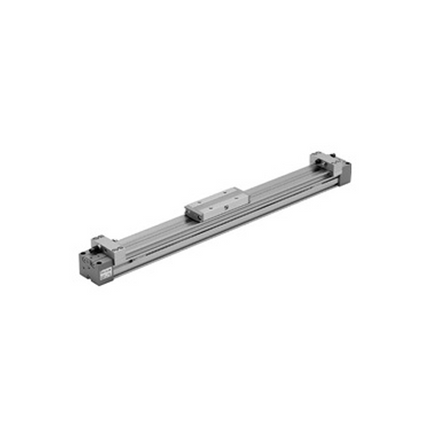

SMC MY1B Series mechanical joint rodless cylinder, MY1B20G-500L-M9BL
