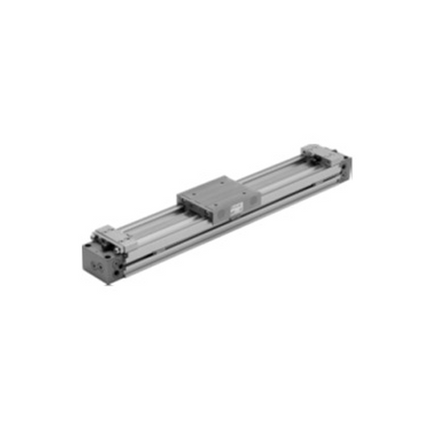

SMC MY1C Series Mechanical Joint Type Rodless Cylinder, High Precision Guide Type, MY1C25G-1400L

Description

OVERVIEW


For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

  • Five types of guide types are standardized
  • A wide range of selections are possible according to the load mass and required accuracy



Specification item model symbol Specification information
tube inner diameter 25 tube inner diameter 25mm
Types of port screws - M thread (ø16 to ø20), Rc (ø25 to ø63)
Piping type G centralized piping
cylinder stroke 1400 Cylinder stroke 1400mm
Stroke adjustment unit symbol L Left: With shock absorber for L low load + adjustment bolt Right: With shock absorber for L low load + adjustment bolt
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard



Product form

OVERVIEW For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution.... Read more

SKU: MY1C25G-1400L

$606.58 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

    • Five types of guide types are standardized
    • A wide range of selections are possible according to the load mass and required accuracy



    Specification item model symbol Specification information
    tube inner diameter 25 tube inner diameter 25mm
    Types of port screws - M thread (ø16 to ø20), Rc (ø25 to ø63)
    Piping type G centralized piping
    cylinder stroke 1400 Cylinder stroke 1400mm
    Stroke adjustment unit symbol L Left: With shock absorber for L low load + adjustment bolt Right: With shock absorber for L low load + adjustment bolt
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
