Description

OVERVIEW

For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

Possible to piping from 4 directions of the head cover
Possible to respond to piping in the field according to the arrangement situation
Easy adjustment of the cushion needle,
improved workability as it is placed on the top surface
Auto switch can be attached to any position (D-M9□ type, D- A9□ type)
Longer service life by adsorption of dust seal band magnets
Installation and performance are the same as conventional products, and weight is reduced

Specification item	model symbol	Specification information
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc
Piping type	-	standard type
cylinder stroke	600	Cylinder stroke 600mm
Stroke adjustment unit symbol	H	Left: With shock absorber + adjustment bolt for H high load, right: With shock absorber + adjustment bolt for H high load
End-lock position	-	No End-Lock
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution.... Read more

SKU: MY1H32-600HZ

$939.03 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

Possible to piping from 4 directions of the head cover
Possible to respond to piping in the field according to the arrangement situation
Easy adjustment of the cushion needle,
improved workability as it is placed on the top surface
Auto switch can be attached to any position (D-M9□ type, D- A9□ type)
Longer service life by adsorption of dust seal band magnets
Installation and performance are the same as conventional products, and weight is reduced

Specification item	model symbol	Specification information
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc
Piping type	-	standard type
cylinder stroke	600	Cylinder stroke 600mm
Stroke adjustment unit symbol	H	Left: With shock absorber + adjustment bolt for H high load, right: With shock absorber + adjustment bolt for H high load
End-lock position	-	No End-Lock
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

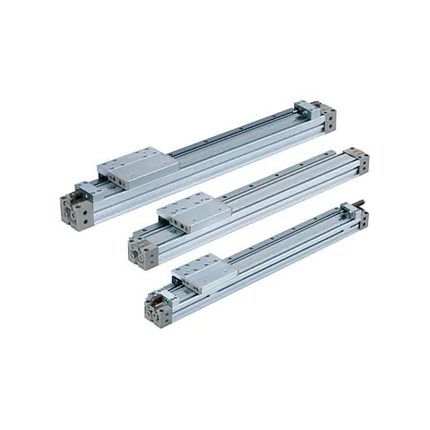

Name: SMC MY1H Series Mechanical Joint Rodless Cylinder, Linear Guide Type, MY1H32-600HZ
