Description

OVERVIEW

Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape enables reduction of the height and length as well as practical arrangement of the common piping passages, cushion mechanism and positioning mechanism. This has achieved drastic miniaturization and weight reduction.

Compared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length

Specification item	model symbol	Specification information
guide format	M	Slide bearing guide type
Stroke adjustment unit symbol	A	stroke adjustment unit
cylinder bore size	25	tube inner diameter 25mm
Unit part no.	H1	Stroke adjustment unit: H unit, mounting position: for left side
Intermediate fixing spacer	6	Short spacer, unit combination

Product form

OVERVIEW Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape... Read more

SKU: MY3M-A25H1-6

$93.93 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Nov 16, 2024 17:00:00 +0900

Description

OVERVIEW

Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape enables reduction of the height and length as well as practical arrangement of the common piping passages, cushion mechanism and positioning mechanism. This has achieved drastic miniaturization and weight reduction.

Compared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length

Specification item	model symbol	Specification information
guide format	M	Slide bearing guide type
Stroke adjustment unit symbol	A	stroke adjustment unit
cylinder bore size	25	tube inner diameter 25mm
Unit part no.	H1	Stroke adjustment unit: H unit, mounting position: for left side
Intermediate fixing spacer	6	Short spacer, unit combination

Reviews

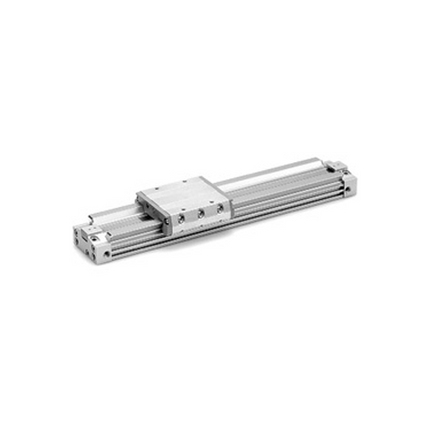

Name: SMC Stroke adjustment unit for MY3M series, MY3M-A25H1-6
