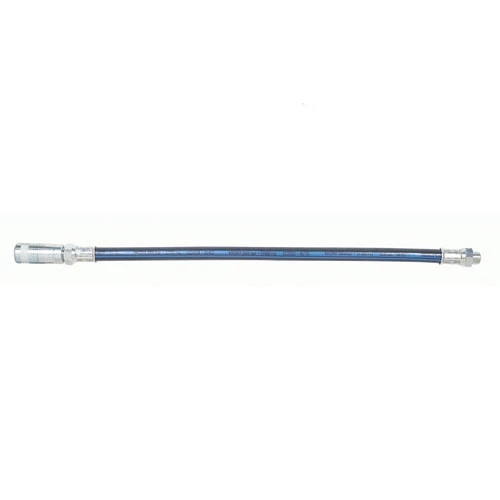

UMETA High pressure hose 360/GLN

  • VendorUmeta

Description

UMETA  High pressure hose 360/GLN

Ø 11 mm according to DIN 1283

are available without nozzle or already assembled with a UMETA nozzle, in the length of 300 mm or 500 mm.

Standard with connection thread M 10 x 1 or G 1/8.
1/8-NPT upon request.

Please be aware of smallest allowable bending radius.
ATTENTION: NEVER FOLD!

inner Ø mm: 4.0 mm
outer Ø mm: 10.2 mm
burst pressure: 1,000 bar / 14,500 PSI
testing pressure: 800 bar / 11,600 PSI
operating pressure max.: 400 bar / 5,800 PSI
temperature range: -20°C - +60°C
allowed bending radius max.: 35 mm
inner layer: polyethylene
reinforcement: 1 polyester insert
outer layer: polyamide
Product form

UMETA  High pressure hose 360/GLN Ø 11 mm according to DIN 1283 are available without nozzle or already assembled with... Read more

SKU: 236-0049

$9.25 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    UMETA  High pressure hose 360/GLN

    Ø 11 mm according to DIN 1283

    are available without nozzle or already assembled with a UMETA nozzle, in the length of 300 mm or 500 mm.

    Standard with connection thread M 10 x 1 or G 1/8.
    1/8-NPT upon request.

    Please be aware of smallest allowable bending radius.
    ATTENTION: NEVER FOLD!

    inner Ø mm: 4.0 mm
    outer Ø mm: 10.2 mm
    burst pressure: 1,000 bar / 14,500 PSI
    testing pressure: 800 bar / 11,600 PSI
    operating pressure max.: 400 bar / 5,800 PSI
    temperature range: -20°C - +60°C
    allowed bending radius max.: 35 mm
    inner layer: polyethylene
    reinforcement: 1 polyester insert
    outer layer: polyamide
