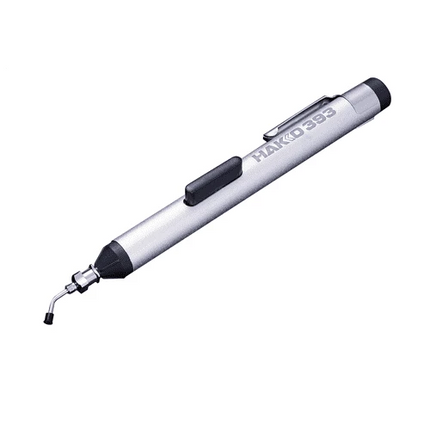

HAKKO Soldering related equipment and materials/Vacuum pick-up tool No.393
■ Portable, easy-to-carry manual dropper-type vacuum pick-up
■ Max. pick-up capacity is 40gf
■ Antistatic material is used
Portable suction pick-up tool
▶ Requires no power or pump
▶ Holds components with vacuum suction
▶ Perfect for precision work
· For handling surface mounted components which tend to be very tinny or irregularly shaped sometime.
· For spherical objects that can not be picked up with tweezers
▶ Slim pen-type body
· Fits in your breast pocket, convenient to carry around
▶ Uses anti-static materials
◎ The pick-up tool is designed to be used for PCBs, etc. and not to absorb dust. If used to absorb dust, it may become inoperable due to clogging of the filters mounted inside.
| Material |
Electrically conductive silicone rubber |
| Heatproof temperature |
Approximately 150°C |
| Resistance value |
104Ω to 106Ω |
| Indication of pad replacement |
When any crack or tear is found during a visual check, or objects cannot be sucked up properly |
Use Nozzle with Pad
|
| Nozzle (The nozzle cannot be used alone. Use it with a pad.) |
|
| Part No. |
A1165 |
A1486 |
| Name/Description |
Bent nozzle /1.1mm |
Straight nozzle /1.1mm |
| Outside Diameter |
1.65mm |
1.65mm |
| Figure |
 |
 |
| Model No. |
393 |
| Pad |
Conductive silicone rubber |
| Dimensions |
Φ13×132mm |
| Weight |
19g |
