HAKKO Soldering iron / Ceramic heater type  Presto 980   ▶ Boost switch can immediately raise power from 20W to normal operation mode to 130W, enabling high-speed heatup▶ The HAKKO Presto can be used for a wide range of applications from simple repair to electric appliances to large components such as transformers▶ Supplied heat-resistant element cover makes it ideal for onsite servicing and repair Features 130W high-speed heatup with a boost switch ▶  20W when used in normal operation, but can be heated up to 130W when the boost switch pressed.  · Press the boost switch when a large amount of heat is temporarily required; for example, when quick heatup is needed (the unit becomes ready for solder within around 20 sec.) or when soldering relays and connectors.  Note The boost switch can be used for up to 30 continuous seconds. ▶ Models with useful caps are also available (No. 984-01 and 985-01). ▶ No.984 / 985 are not available in North America   ≫ SPECIFICATION Item No. 224-0064 Model No. 980 Power consumption 20/130W (While the switch is pushed) Heating element Ceramic heater Total length 205mm  Weight 48g

Read more less

HAKKO Tip cleaner  599B  ■ Wire-type soldering iron tip cleaner best suited for lead-free soldering  FEATURES  Specialized for cleaning tips used for lead-free solder ■ No water required for cleaning, minimizes the drop in tip temperature at each cleaning to ensure better workability. ■ Dome-shaped design reduces solder splash ■ Flux contained in cleaning tips Model No. 599B Dimensions Φ70×71(H)mm

Read more less

HAKKO Desoldering tool No.18G  ■ Light-weight, economical, simplified desoldering tool with high suction power■ Cleaning shaft that allows cleaning■ Nozzles can be replaced with simple operation  FEATURES  Lightweight and economical design.■ Powerful enough for both occasional and heavy-duty desoldering applications efficiently.■ Unique cleaning shaft allows you to clean the nozzle quickly and easily. Model No. 18G Absorption capacity 12cm3 (12cc)

Read more less

HAKKO Maintenance kits FS-150  ■ Chemical paste best suited for the removal of oxidation tips■ Also used for retinning of soldering tips  FEATURES  Chemical Paste■ For retinning soldering tips■ For oxidation removal on soldering tips■ Re-tinning procedure  * Use FS-100 in combination with HAKKO FT-700 for enhanced effectiveness.  * Do not use the chemical paste for other than restoring the soldering tip.  Specifications  Model No. FS-100 Amount 10g Ingredients Flux, tin(Sn) 50wt%(each) * The flux component of chemical paste consists of Alicyclic amine hydrobromate, Aliphatic amine hydrobromate, Petrolatum, Wax. Make sure to clean off FS-100 paste from tip surface after tinning it.  * Do not use the chemical paste for other than restoring the soldering tip.

Read more less

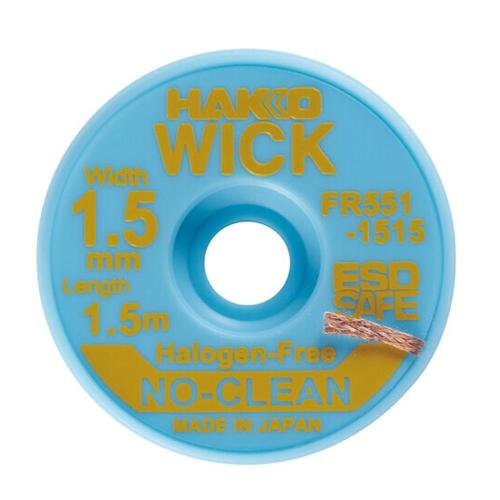

HAKKO Desoldering wire ■ Economical and easy-to-use desoldering wire■ Handy for the removal of solder after dismounting surface-mounted components including BGAs  FEATURES  HAKKO WICK■ Faster thermal transmission for superior performance at lower temperature and with lower wattage soldering irons.■ Three different· Regular type: Rosin flux treated copper braid· Unflux type: Untreated copper braid· No clean type: Low residue flux treated copper braid                          Using ESD SAFE package  Applications  The ball grid array (BGA) has been removed from the surface of the printed circuit board (PCB).   Trick to remove solder well with the desoldering wire  Wrong use of the desoldering wire may tear patterns from a PCB or damage discrete components. In order to prevent these problems, make sure to take the preventive measure below:Apply a bit of solder to the type of solder iron.Apply a bit of solder to the tip of the desoldering wire. Cut the soldered tip of the wire at an angle of 45 degrees. Solder should remain attached.Preliminary soldering improves heat conductance Item No. Part No. Name/Description 224-0453 FR100-01 HAKKO WICK <REGULAR> 1.5MX0.9MM 224-0462 FR100-02 (Discontinued) HAKKO WICK <REGULAR> 1.5MX1.4MM 224-0471 FR100-03 HAKKO WICK <REGULAR> 1.5MX1.9MM 224-0480 FR100-04 (Discontinued) HAKKO WICK <REGULAR> 1.5MX2.5MM 224-0499 FR100-05 HAKKO WICK <REGULAR> 1.5MX3.3MM

Read more less

HAKKO Tester for wrist strap No.498  ■ Easy-to-use, quick-response tester for wrist strap■ Connection status of wrist strap can be checked  FEATURES  Can be used anywhere with a variety of grounding systems.■ Ensures employee safety.■ Eliminates product defects caused by static electricity. Specifications Model No. 498 Power supply 006P 9V dry battery Indication : LOW R<800kΩ Indication : GOOD 800kΩ≤R≤9MΩ Indication : HIGH R>9MΩ Battery life Approximately 50,000times Grounding wire 2.5m Operating environment 0 to 40ºC, 20 to 90%RH (without condensation) Dimensions 80(W)×40(H)×117(D)mm Weight 110g

Read more less

HAKKO Soldering related equipment and materials/Vacuum pick-up tool No.393  ■ Portable, easy-to-carry manual dropper-type vacuum pick-up■ Max. pick-up capacity is 40gf■ Antistatic material is used  FEATURES  Portable suction pick-up tool▶ Requires no power or pump▶ Holds components with vacuum suction▶ Perfect for precision work· For handling surface mounted components which tend to be very tinny or irregularly shaped sometime.· For spherical objects that can not be picked up with tweezers▶ Slim pen-type body· Fits in your breast pocket, convenient to carry around▶ Uses anti-static materials◎ The pick-up tool is designed to be used for PCBs, etc. and not to absorb dust. If used to absorb dust, it may become inoperable due to clogging of the filters mounted inside. Specifications of pad Material Electrically conductive silicone rubber Heatproof temperature Approximately 150°C Resistance value 104Ω to 106Ω Indication of pad replacement When any crack or tear is found during a visual check, or objects cannot be sucked up properly   Use Nozzle with Pad Nozzle (The nozzle cannot be used alone. Use it with a pad.) Part No. A1165 A1486 Name/Description Bent nozzle /1.1mm Straight nozzle /1.1mm Outside Diameter 1.65mm 1.65mm Figure Model No. 393 Pad Conductive silicone rubber Dimensions Φ13×132mm Weight 19g

Read more less

HAKKO Desoldering tool No.DS01P ■ Light-weight, economical, simplified desoldering tool with high suction power■ Cleaning shaft that allows cleaning■ Nozzles can be replaced with simple operation  FEATURES  Lightweight and economical design.■ Powerful enough for both occasional and heavy-duty desoldering applications efficiently.■ Unique cleaning shaft allows you to clean the nozzle quickly and easily. Model No.  DS01P  Absorption capacity 28cm3 (28cc)

Read more less

HAKKO Desoldering tool No.20G  ■ Light-weight, economical, simplified desoldering tool with high suction power■ Cleaning shaft that allows cleaning■ Nozzles can be replaced with simple operation  FEATURES  Lightweight and economical design.■ Powerful enough for both occasional and heavy-duty desoldering applications efficiently.■ Unique cleaning shaft allows you to clean the nozzle quickly and easily. Model No. 20G Absorption capacity 20cm3 (20cc)

Read more less

HAKKO Desoldering tool No.18  ■ Light-weight, economical, simplified desoldering tool with high suction power■ Cleaning shaft that allows cleaning■ Nozzles can be replaced with simple operation  FEATURES  Lightweight and economical design.■ Powerful enough for both occasional and heavy-duty desoldering applications efficiently.■ Unique cleaning shaft allows you to clean the nozzle quickly and easily. Model No. 18 Absorption capacity 12cm3 (12cc)

Read more less

HAKKO Soldering iron/Battery-powered type FX-901  ■ Easy-to-carry battery-powered soldering iron powered by AA alkaline batteries■ Cordless design makes this iron very handy to use virtually anywhere■ Recommended for hobby handicrafts such as stationary models and radio-controlled models  FEATURES  Cool design of cordless soldering iron ■ Quick&easy soldering tip replacement ·The quick-release soldering tip can be easily replaced. ■ Selective battery ·Various batteries including alkaline and nickel-hydrogen batteries can be used by changing the cartridge. ■ Easy soldering not only for hobby but for P.C. board processing ·Powerful cord and handy cordless soldering iron. ·Various soldering application is available such as P.W.B., field service and model or radio-controlled models.  APPLICATIONS  1. INITIAL SET UP  Put the soldering tip through the hole in the nipple, then insert them into the unit as shown in Figure 1.  Turn the nipple approximately 90 degrees clockwise and screw it tightly on the unit. Be sure to secure the tip tightly. Attach the soldering tip while it is cold.2. INSERTING THE BATTERIES  Slide down the release button to the UNLOCK position as shown in Figure 2. Remove the battery cartridge from the unit. Check the polarity and insert the batteries in the proper orientation.  Place the upper side of the battery cartridge onto the guide, slide the cartridge, and set the release button to the LOCK position.3. HOW TO SOLDER  Turn the power switch ON. The LED lamp lights up, and the soldering tip heats up to be soldered after 40 seconds.  After soldering, be sure to turn the power switch OFF and attach the protective cap to the unit. Item No. 224-0198 Model No. FX-901 Power supply AA×4 pcs. (not included) Power consumption Alkaline batteries : 6V (6W) Nickel hydrogen batteries (2150mAh) : 4.8V (5W) Standard tip Shape-B (No.T11-B) Battery life Alkaline batteries : 60 minutes Nickel hydrogen batteries (2150mAh) : 120 minutes Total length 212mm  Weight 76g   [Measurement conditions]  - When using new batteries, performance will vary depending on batteries.  - The operating time was measured from when the temperature reached 300 ° C.  * When using the batteries except specified above, the operation will vary.  * Total length (w / o cap)* Weight (w / o battery)

Read more less

HAKKO Soldering iron / Ceramic heater type  Presto 981  ▶ Boost switch can immediately raise power from 20W to normal operation mode to 130W, enabling high-speed heatup▶ The HAKKO Presto can be used for a wide range of applications from simple repair to electric appliances to large components such as transformers▶ Supplied heat-resistant element cover makes it ideal for onsite servicing and repair Features 130W high-speed heatup with a boost switch ▶  20W when used in normal operation, but can be heated up to 130W when the boost switch pressed.  · Press the boost switch when a large amount of heat is temporarily required; for example, when quick heatup is needed (the unit becomes ready for solder within around 20 sec.) or when soldering relays and connectors.  Note The boost switch can be used for up to 30 continuous seconds. ▶ Models with useful caps are also available (No. 984-01 and 985-01). ▶ No.984 / 985 are not available in North America   ≫ SPECIFICATION Item No. 224-0073 Model No. 981 Power consumption 20/130W (While the switch is pushed) Heating element Ceramic heater Total length 160mm  Weight 92g

Read more less

HAKKO Soldering iron / Ceramic heater type  DASH  Features A HAKKO DASH (FX-650) is an entry model of ceramic heater soldering ironFast Ramp Up! 3 times faster than nichrome heater model Slim handle improves your work efficiency Simple and easy tip replacementQuick change just loosing a screw HAKKO DASH is supplied with a 'B' shape type as standard.There are 6 more different shapes for a variety of works. ≫ SPECIFICATION Item No. 224-2071 Model No. FX-650 Power consumption 15 to 16W Heating element Ceramic heater Total length 224mm (with B tip) Weight 60g (with B tip)
