TECLOCK Small Dial Indicator TM-35-01

Description

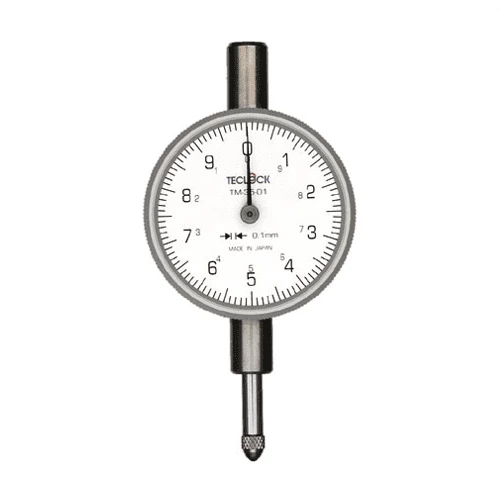

TECLOCK  Small Dial Indicator TM-35-01

Dial Indicator is surely utilized at manufacturing sites where dimensional high accuracy is needed to be confirmed. The graduation (1- graduation )
depends on usage and Teclock offers 6 kinds of graduations, namely 0.0005mm, 0.001mm, 0.005mm, 0.01mm, 0.05mm and 0.1mm. The strokes
are available from 0.08mm (the shortest) up to 150mm. Dial Indicator is normally not used independent but its stem or lug back is fixed to a jig
and holds work piece with the measuring stand and contact point, and displacement volume is read with short hand and pointer. The dial indicator
is applied for direct measurement to measure actual dimension and comparative measurement for measuring displacement volume from a certain
standard dimension.

  • As bezel diameter is small (minimum diameter=36mm), these are suitable to measure at the narrow setting space of production lines and many measuring points by being mounted to the machine.
  • Lifting lever (Option) can be mounted (except for TM-34).
  • In case that flat back is required, add suffix “f” to the end of model number (example =TM-35f).
  • Measuring range 3.5mm, 4mm, 5mm, and 10mm are available in spite of small size.
  • Bezel clamp (Option) can be mounted.
  • Measuring ability can be changed.
Model TM-35-01
Type Long-stroke type
Graduation 0.1mm
Measuring Range 10mm

[TECLOCK] Small Dial Indicator TM-35-01

Dimensions Table
Model A B C D E F G H I J
TM-35-01 32.5 46 39 36.5 10 41.5 19 5 6.2 16.5



Specifications
Graduation (mm) Measuring Range (mm) Repeatability (㎛) Indication Error (μm) Hysteresis (㎛) Standard Contact Point Measuring Force(N) We i g h t (g)
Adjacent Error 1 Revolution Total Range
0.1 5 5 9 ±13 ±15 6 ZS-014 1.3 or less 70
Product form

TECLOCK  Small Dial Indicator TM-35-01 Dial Indicator is surely utilized at manufacturing sites where dimensional high accuracy is needed to... Read more

SKU: k106-0713

$76.84 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      TECLOCK  Small Dial Indicator TM-35-01

      Dial Indicator is surely utilized at manufacturing sites where dimensional high accuracy is needed to be confirmed. The graduation (1- graduation )
      depends on usage and Teclock offers 6 kinds of graduations, namely 0.0005mm, 0.001mm, 0.005mm, 0.01mm, 0.05mm and 0.1mm. The strokes
      are available from 0.08mm (the shortest) up to 150mm. Dial Indicator is normally not used independent but its stem or lug back is fixed to a jig
      and holds work piece with the measuring stand and contact point, and displacement volume is read with short hand and pointer. The dial indicator
      is applied for direct measurement to measure actual dimension and comparative measurement for measuring displacement volume from a certain
      standard dimension.

      • As bezel diameter is small (minimum diameter=36mm), these are suitable to measure at the narrow setting space of production lines and many measuring points by being mounted to the machine.
      • Lifting lever (Option) can be mounted (except for TM-34).
      • In case that flat back is required, add suffix “f” to the end of model number (example =TM-35f).
      • Measuring range 3.5mm, 4mm, 5mm, and 10mm are available in spite of small size.
      • Bezel clamp (Option) can be mounted.
      • Measuring ability can be changed.
      Model TM-35-01
      Type Long-stroke type
      Graduation 0.1mm
      Measuring Range 10mm

      [TECLOCK] Small Dial Indicator TM-35-01

      Dimensions Table
      Model A B C D E F G H I J
      TM-35-01 32.5 46 39 36.5 10 41.5 19 5 6.2 16.5



      Specifications
      Graduation (mm) Measuring Range (mm) Repeatability (㎛) Indication Error (μm) Hysteresis (㎛) Standard Contact Point Measuring Force(N) We i g h t (g)
      Adjacent Error 1 Revolution Total Range
      0.1 5 5 9 ±13 ±15 6 ZS-014 1.3 or less 70
