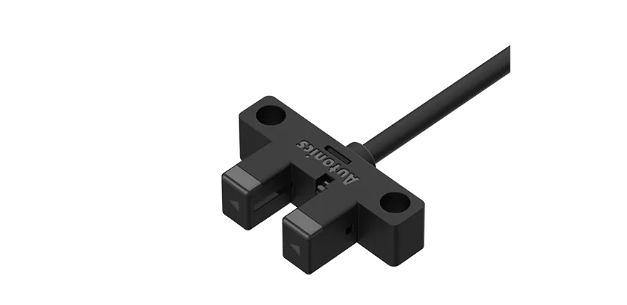

| Sensing type |
Through-beam type |
| Sensing distance |
5mm |
| Sensing target |
Opaque |
| Min. sensing target |
≥ 0.8 mm × 1.8 mm |
| Hysteresis(distance) |
≤0.05mm |
| Response time |
Light ON: Max. 20㎲, Dark ON: Max. 100㎲ |
| Response frequency |
2kHz |
| Light source |
Infrared LED |
| Peak emission wavelength |
940nm |
| Operation mode |
Light ON/Dark ON(set by control wire) |
| Indicator |
Operation indicator (red LED) |
| Weight |
Approx. 50g |
| Power voltage |
5-24VDC  ±10%(ripple P-P : max. 10%) |
| Current consumption |
Max. 15mA |
| Control output |
PNP open collector |
| Load voltage |
≤ 24VDC
|
| Load current |
Max. 50mA |
| Residual voltage |
NPN: ≤1.2VDC, PNP: ≤ 1.2VDC
|
| Protection circuit |
Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit |
| Insulation resistance |
≥20 MΩ (250 VDC megger) |
| Noise immunity |
The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC
|
| Dielectric strength |
1,000VAC 50/60Hz for 1 minute |
| Vibration |
1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours |
| Shock |
15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination |
Fluorescent lamp: Max. 1,000lx(received illumination) |
| Environment_Ambient temperature |
-20 to 55℃, storage : -25 to 85℃ |
| Environment_Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Protection structure |
IP50 (IEC standard) |
| Connection |
Cable type |
| Connection type |
Ø2.5mm, 4-wire, 1m |
| Core |
AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm |
| Material |
Case: PBT, Sensing part: PC |
