Description

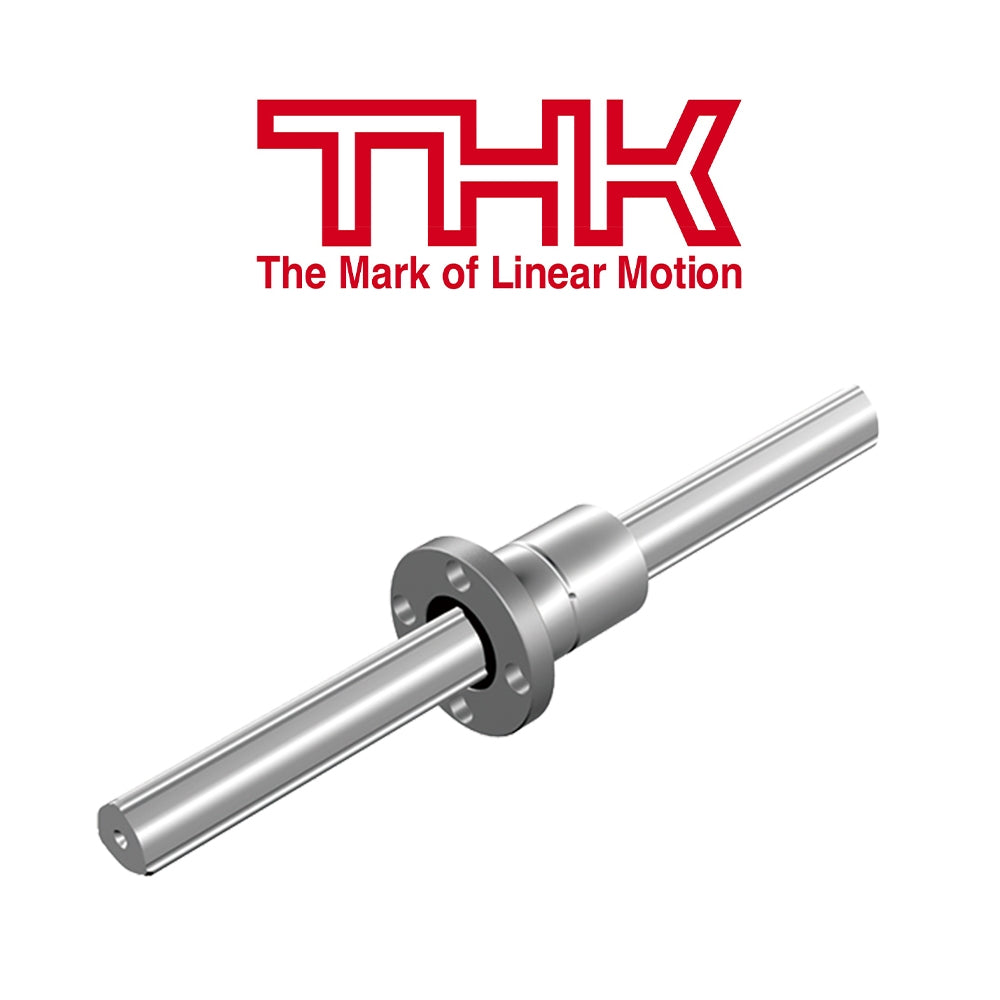

THK LBF20UU — genuine THK Ball Spline (model LBF20UU). This listing covers 5 versions, including [Nut] LBF20UU, [Shaft] LBS20-400L and [Shaft] LBS20-700L.
Order the spline shaft and the nut as matched parts, and confirm the shaft length. Mixing sizes between series will not fit.
A ball spline is a shaft with grooves and a ball-loaded nut that carries torque while allowing the nut to move along the shaft. It is used where a rotating drive has to slide axially, such as in robots, transfer devices and loaders.
Key Features
- Transmits torque and allows axial movement along the same shaft
- Choose by shaft diameter, nut type and the torque required
- Shaft is sold in selectable lengths
- Seals on the nut keep dust out of the ball circuit
Available Models
| Model / Size |
|---|
| [Nut] LBF20UU |
| [Shaft] LBS20-400L |
| [Shaft] LBS20-700L |
| [Shaft] LBS20-1000L |
| [Shaft] LBS20-1800L |
- Brand: THK
- Country of origin: Japan
About THK
THK is a Japanese company that pioneered the LM Guide (linear motion guide) and manufactures ball screws, ball splines and other linear motion components.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
