FTFB-210-05R Type : Flat type/Side view+Top view(bending) Sensing distance : 110mm Min. sensing target : Ø0.04mm Allowable bend radius : R1 Cable length : 1m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃   Type Flat type/Side view+Top view(bending) Sensing distance 110mm Min. sensing target Ø0.04mm Allowable bend radius R1 Cable length 1m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type

Read more less

Sensing type Through-beam type Sensing distance 3m Sensing target Opaque material of min. Ø6mm Response time Max. 1ms Light source Infrared LED Operation mode Dark ON Weight Approx. 105g(approx. 80g) Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Current consumption Emitter/Receiver: Max. 30mA Control output PNP open collector Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Protection structure IP64 Connection type Cable type(Ø3.5, 2m) Material Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate

Read more less

Genuine Autonics TK4S-R4RN high-performance PID temperature controller in a compact 48 × 48 mm housing. Relay control output with one alarm output and a DC 4–20 mA PV transmission output, 50 ms sampling and multi-input support (thermocouple, RTD and analog). Runs on 100–240 VAC. Size 48 × 48 mm (DIN 1/16) Display 4-digit 7-segment LED Control method ON/OFF, P, PI, PD, PID Input – thermocouple K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II Input – RTD DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nickel 120Ω Input – analog 0–100 mV, 0–5 V, 1–5 V, 0–10 V, 0–20 mA, 4–20 mA Sampling cycle 50 ms Control output 1 Relay, 250 VAC 3 A Option input CT, Digital (DI-1) Option output Alarm 1, Transmission (DC 4–20 mA) Power supply 100–240 VAC, 50/60 Hz Protection IP65 (front panel) Display accuracy (RTD / TC) At 23 ℃ ±5 ℃: PV ±0.3% or ±1 ℃, whichever is greater, ±1 digit Display accuracy (analog) At 23 ℃ ±5 ℃: ±0.3% F.S. ±1 digit Proportional band 0.1 to 999.9 ℃/℉ (0.1 to 999.9%) Integral / derivative time 0 to 9999 s Control period Relay / SSR drive output: 0.1 to 120.0 s Ambient temperature −10 to 50 ℃ (storage −20 to 60 ℃) Ambient humidity 35 to 85% RH Weight Approx. 150 g with packaging (approx. 105 g unit only) Image may differ from the actual product. Specifications per Autonics data sheet.

Read more less

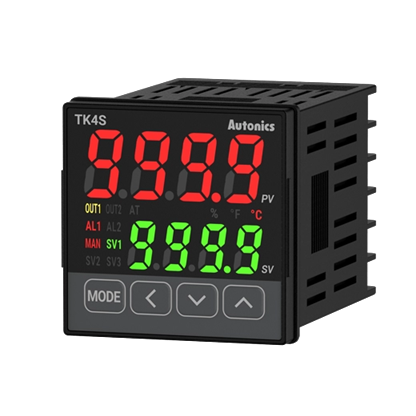

Genuine Autonics TK4S-A4RN high-performance PID temperature controller in a compact 48 × 48 mm housing. Relay control output with two alarm outputs and a DC 4–20 mA PV transmission output, 50 ms sampling and multi-input support (thermocouple, RTD and analog). Runs on 100–240 VAC. Replacement for the discontinued Autonics TZ4ST-R4R (relay output, 2 alarms + PV transmission). Size 48 × 48 mm (DIN 1/16) Display 4-digit 7-segment LED Control method ON/OFF, P, PI, PD, PID Input – thermocouple K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II Input – RTD DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nickel 120Ω Input – analog 0–100 mV, 0–5 V, 1–5 V, 0–10 V, 0–20 mA, 4–20 mA Sampling cycle 50 ms Control output 1 Relay, 250 VAC 3 A Option input CT, Digital (DI-1) Option output Alarm 1 / Alarm 2, Transmission (DC 4–20 mA) Power supply 100–240 VAC, 50/60 Hz Protection IP65 (front panel) Display accuracy (RTD / TC) At 23 ℃ ±5 ℃: PV ±0.3% or ±1 ℃, whichever is greater, ±1 digit Display accuracy (analog) At 23 ℃ ±5 ℃: ±0.3% F.S. ±1 digit Proportional band 0.1 to 999.9 ℃/℉ (0.1 to 999.9%) Integral / derivative time 0 to 9999 s Control period Relay / SSR drive output: 0.1 to 120.0 s Ambient temperature −10 to 50 ℃ (storage −20 to 60 ℃) Ambient humidity 35 to 85% RH Weight Approx. 150 g with packaging (approx. 105 g unit only) Image may differ from the actual product. Specifications per Autonics data sheet.

Read more less

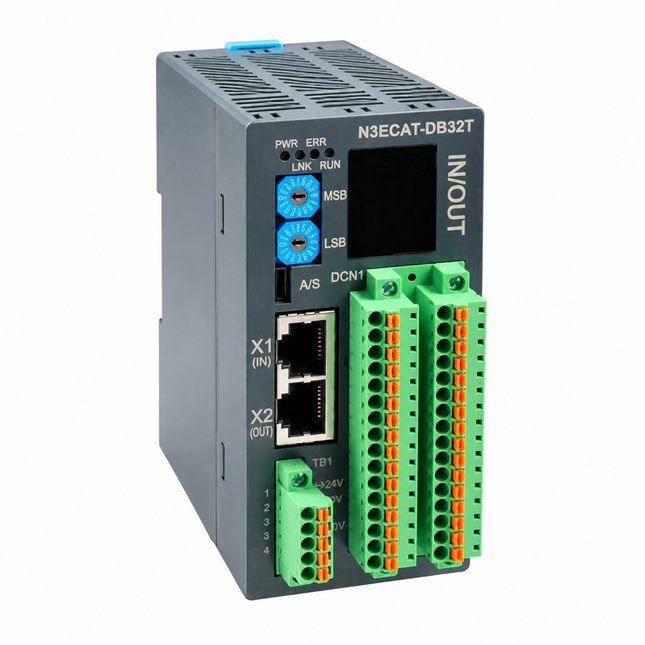

The AJINEXTEK N3ECAT-DB32T is an EtherCAT slave module with 32 channels of 24VDC digital I/O: 16 inputs and 16 outputs. It mounts on a standard 35 mm DIN rail and has built-in status LEDs. Key features 16 digital inputs, photo-coupler isolated (min. 2 mA/ch, 24VDC level) 16 digital outputs, photo-coupler + drive IC (max. 50 mA/ch, 24VDC level) Slave ID set by two hexadecimal rotary switches (00h to FFh) Two RJ45 ports for EtherCAT daisy-chain wiring Status LEDs for power, link, error, run, inputs and outputs Specifications Model N3ECAT-DB32T Network EtherCAT slave Module function 16 ch digital input / 16 ch digital output I/O level 24VDC Input Photo-coupler isolation, min. 2 mA/ch Output Photo-coupler + drive IC, max. 50 mA/ch Slave ID setting Hexadecimal rotary switch x 2 (00h to FFh) LED display Power (yellow), Link (green), Error (red), Run (green), Input (green), Output (red) Communication connector RJ45 LAN x 2 I/O connector DINKLE 16P (ESC381VM-16P) or Phoenix 16P (MC 1,5/16-STF-3,81) x 2 Power connector DINKLE 5P (ECH350RM-05P) x 1 Power supply / consumption 24VDC / 250 mA Mounting Standard 35 mm DIN rail Operating temperature / humidity 0 to 55 °C / 5 to 90% RH (no condensation) Storage temperature -20 to 70 °C Dimensions 112 (H) x 90 (D) x 54 (W) mm Weight 203 g

Read more less

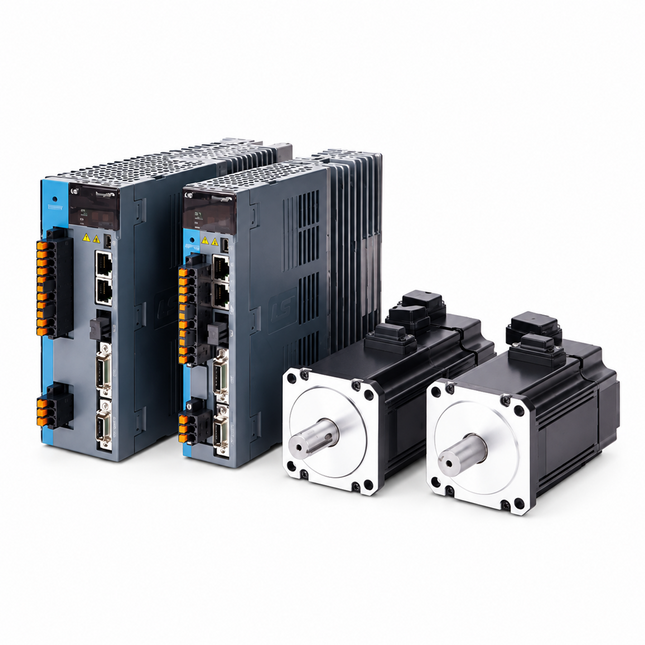

The LS ELECTRIC L7NHA002U is a 200 W AC servo drive with EtherCAT communication. It supports distributed-clock synchronisation down to 250 µs and a frequency response of about 1 kHz. It drives rotary, direct-drive and linear motors, including third-party motors. Key features EtherCAT with CoE, EoE and FoE; minimum DC cycle 250 µs Frequency response up to 1 kHz (with 19-bit serial encoder) Encoder support: Quadrature, BiSS-B/C, Tamagawa serial, EnDat 2.2, sinusoidal, analog Hall 4-stage notch filter, real-time vibration suppression and real-time gain tuning Safe Torque Off (STO1, STO2) with EDM output USB 2.0 port for firmware update, parameter setup and tuning Specifications Model L7NHA002U Rated output 200 W Main power 3-phase 200–230VAC (-15% to +10%), 50/60 Hz Control power Single-phase 200–230VAC (-15% to +10%), 50/60 Hz Rated current 1.7 A Peak current 5.1 A Speed control range Up to 1:5000 Frequency response 1 kHz or more (19-bit serial encoder) Speed regulation ±0.01% or less (load 0–100%), ±0.1% or less (25 ±10 °C) Torque control repeatability Within ±1% Communication EtherCAT — CoE (IEC 61158 Type 12, IEC 61800-7 CiA 402), EoE, FoE Physical layer 100BASE-TX (IEEE 802.3), RJ45 x 2, max. 100 m between nodes CiA 402 modes PP, PV, PT, CSP, CSV, CST, Homing Digital inputs 8 channels, 12–24VDC, 12 assignable functions Digital outputs 4 channels, 24VDC ±10%, 120 mA, assignable Safety STO (2 inputs), EDM (1 output) Braking Dynamic brake built in; regenerative brake built in, external resistor optional Display 5-digit 7-segment Node address Set by rotary switch Protection Overcurrent, overload, current limit, overheat, overvoltage, undervoltage, overspeed, encoder error, following error, current sensing error Operating / storage temperature 0 to 50 °C / -20 to 70 °C Operating / storage humidity 80% RH or less / 90% RH or less (no condensation)

Read more less

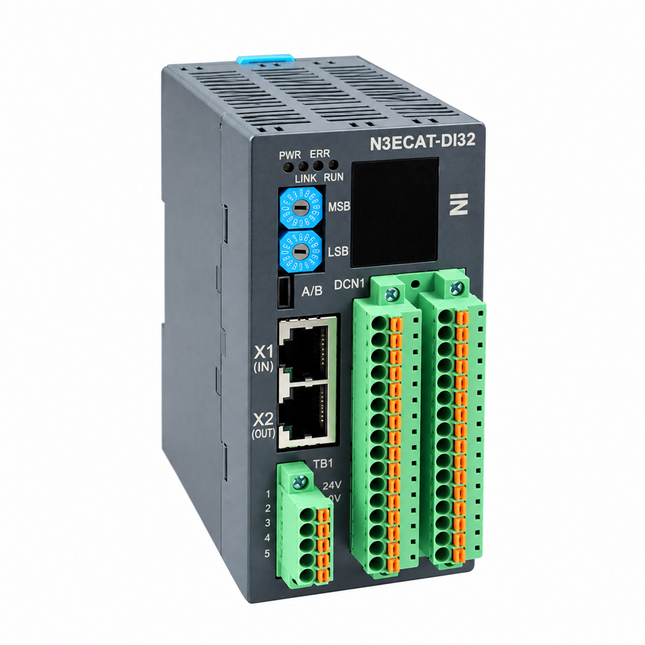

The AJINEXTEK N3ECAT-DI32 is an EtherCAT slave module with 32 channels of 24VDC digital input. It mounts on a standard 35 mm DIN rail and has built-in status LEDs. Key features 32 digital inputs, photo-coupler isolated (min. 2 mA/ch, 24VDC level) Slave ID set by two hexadecimal rotary switches (00h to FFh) Two RJ45 ports for EtherCAT daisy-chain wiring Status LEDs for power, link, error, run and inputs Specifications Model N3ECAT-DI32 Network EtherCAT slave Module function 32 ch digital input Input level 24VDC Input Photo-coupler isolation, min. 2 mA/ch Slave ID setting Hexadecimal rotary switch x 2 (00h to FFh) LED display Power (yellow), Link (green), Error (red), Run (green), Input (green) Communication connector RJ45 LAN x 2 Input connector DINKLE 16P (ESC381VM-16P) or Phoenix 16P (MC 1,5/16-STF-3,81) x 2 Power connector DINKLE 5P (ECH350RM-05P) x 1 Power supply / consumption 24VDC / 300 mA Mounting Standard 35 mm DIN rail Operating temperature / humidity 0 to 55 °C / 5 to 90% RH (no condensation) Storage temperature -20 to 70 °C Dimensions 112 (H) x 90 (D) x 54 (W) mm Weight 205 g

Read more less

YASKAWA CIMR-JT4A0004BAA — Compact V/f Control AC Drive from the Yaskawa J1000 series, 400 V class, 3-phase, for 0.75 kW motors.Specification — CIMR-JT4A0004BAA Model CIMR-JT4A0004BAA Series Yaskawa J1000 Voltage class 400 V class Input 3-phase Motor capacity 0.75 kW Region code T (Asia) Shipping weight 2,200 g (estimated) Asia-region model (T in the model code). Please confirm that the supply voltage, frequency and certification requirements at your site match this model before ordering. The rated capacity above is as stated by our supplier; check the heavy-duty and normal-duty ratings in the Yaskawa manual for your application.Series statusYaskawa has moved the J1000 range to the GA500 series. Remaining J1000 stock suits like-for-like replacement where parameter files and panel cut-outs are already set up.Supply from KoreaGenuine YASKAWA, sourced through Korean distribution. Normally held in stock by our Korean distributor; availability is reconfirmed when you order.Need a different capacity, a successor model or a mixed list of drives? Send the model numbers and quantities and we will quote them.

Read more less

YASKAWA CIMR-JT4A0005BAA — Compact V/f Control AC Drive from the Yaskawa J1000 series, 400 V class, 3-phase, for 1.5 kW motors.Specification — CIMR-JT4A0005BAA Model CIMR-JT4A0005BAA Series Yaskawa J1000 Voltage class 400 V class Input 3-phase Motor capacity 1.5 kW Region code T (Asia) Shipping weight 2,200 g (estimated) Asia-region model (T in the model code). Please confirm that the supply voltage, frequency and certification requirements at your site match this model before ordering. The rated capacity above is as stated by our supplier; check the heavy-duty and normal-duty ratings in the Yaskawa manual for your application.Series statusYaskawa has moved the J1000 range to the GA500 series. Remaining J1000 stock suits like-for-like replacement where parameter files and panel cut-outs are already set up.Supply from KoreaGenuine YASKAWA, sourced through Korean distribution. Normally held in stock by our Korean distributor; availability is reconfirmed when you order.Need a different capacity, a successor model or a mixed list of drives? Send the model numbers and quantities and we will quote them.

Read more less

YASKAWA CIMR-VT4A0002BAA — Compact Vector Control AC Drive from the Yaskawa V1000 series, 400 V class, 3-phase, for 0.4 kW motors.Specification — CIMR-VT4A0002BAA Model CIMR-VT4A0002BAA Series Yaskawa V1000 Voltage class 400 V class Input 3-phase Motor capacity 0.4 kW Region code T (Asia) Shipping weight 1,700 g (based on catalog mass) Asia-region model (T in the model code). Please confirm that the supply voltage, frequency and certification requirements at your site match this model before ordering. The rated capacity above is as stated by our supplier; check the heavy-duty and normal-duty ratings in the Yaskawa manual for your application.Series statusYaskawa has moved the V1000 range to the GA500 series. Remaining V1000 stock suits like-for-like replacement on existing machines.Supply from KoreaGenuine YASKAWA, sourced through Korean distribution. Normally held in stock by our Korean distributor; availability is reconfirmed when you order.Need a different capacity, a successor model or a mixed list of drives? Send the model numbers and quantities and we will quote them.

Read more less

YASKAWA CIMR-VT4A0011BAA — Compact Vector Control AC Drive from the Yaskawa V1000 series, 400 V class, 3-phase, for 3.7 kW motors.Specification — CIMR-VT4A0011BAA Model CIMR-VT4A0011BAA Series Yaskawa V1000 Voltage class 400 V class Input 3-phase Motor capacity 3.7 kW Region code T (Asia) Shipping weight 3,000 g (based on catalog mass) Asia-region model (T in the model code). Please confirm that the supply voltage, frequency and certification requirements at your site match this model before ordering. The rated capacity above is as stated by our supplier; check the heavy-duty and normal-duty ratings in the Yaskawa manual for your application.Series statusYaskawa has moved the V1000 range to the GA500 series. Remaining V1000 stock suits like-for-like replacement on existing machines.Supply from KoreaGenuine YASKAWA, sourced through Korean distribution. Normally held in stock by our Korean distributor; availability is reconfirmed when you order.Need a different capacity, a successor model or a mixed list of drives? Send the model numbers and quantities and we will quote them.

Read more less

YASKAWA CIPR-GA50TB004BAA — Microdrive (AC Drive) from the Yaskawa GA500 series, 200 V class, single-phase input, for 0.4 kW motors.Specification — CIPR-GA50TB004BAA Model CIPR-GA50TB004BAA Series Yaskawa GA500 Voltage class 200 V class Input single-phase input Motor capacity 0.4 kW Region code T (Asia) Shipping weight 1,500 g (estimated) Asia-region model (T in the model code). Please confirm that the supply voltage, frequency and certification requirements at your site match this model before ordering. The rated capacity above is as stated by our supplier; check the heavy-duty and normal-duty ratings in the Yaskawa manual for your application.Supply from KoreaGenuine YASKAWA, sourced through Korean distribution. Supplied to order — current lead time is up to about three months. Please request a quote to confirm timing before ordering.Checkout is disabled for this item. Please use the quote form on this page and we will confirm price, availability and shipping before you order.Need a different capacity, a successor model or a mixed list of drives? Send the model numbers and quantities and we will quote them.

Read more less

YASKAWA CIPR-GA50TB006BAA — Microdrive (AC Drive) from the Yaskawa GA500 series, 200 V class, single-phase input, for 0.75 kW motors.Specification — CIPR-GA50TB006BAA Model CIPR-GA50TB006BAA Series Yaskawa GA500 Voltage class 200 V class Input single-phase input Motor capacity 0.75 kW Region code T (Asia) Shipping weight 1,800 g (estimated) Asia-region model (T in the model code). Please confirm that the supply voltage, frequency and certification requirements at your site match this model before ordering. The rated capacity above is as stated by our supplier; check the heavy-duty and normal-duty ratings in the Yaskawa manual for your application.Supply from KoreaGenuine YASKAWA, sourced through Korean distribution. Supplied to order — current lead time is up to about three months. Please request a quote to confirm timing before ordering.Checkout is disabled for this item. Please use the quote form on this page and we will confirm price, availability and shipping before you order.Need a different capacity, a successor model or a mixed list of drives? Send the model numbers and quantities and we will quote them.

Read more less

YASKAWA CIPR-GA50TB010BAA — Microdrive (AC Drive) from the Yaskawa GA500 series, 200 V class, single-phase input, for 1.5 kW motors.Specification — CIPR-GA50TB010BAA Model CIPR-GA50TB010BAA Series Yaskawa GA500 Voltage class 200 V class Input single-phase input Motor capacity 1.5 kW Region code T (Asia) Shipping weight 2,300 g (estimated) Asia-region model (T in the model code). Please confirm that the supply voltage, frequency and certification requirements at your site match this model before ordering. The rated capacity above is as stated by our supplier; check the heavy-duty and normal-duty ratings in the Yaskawa manual for your application.Supply from KoreaGenuine YASKAWA, sourced through Korean distribution. Supplied to order — current lead time is four months or more. Please request a quote to confirm timing before ordering.Checkout is disabled for this item. Please use the quote form on this page and we will confirm price, availability and shipping before you order.Need a different capacity, a successor model or a mixed list of drives? Send the model numbers and quantities and we will quote them.

Read more less

YASKAWA CIMR-AT4A0018FAA — High Performance Vector Control AC Drive from the Yaskawa A1000 series, 400 V class, 3-phase, for 5.5 kW motors.Specification — CIMR-AT4A0018FAA Model CIMR-AT4A0018FAA Series Yaskawa A1000 Voltage class 400 V class Input 3-phase Motor capacity 5.5 kW Region code T (Asia) Shipping weight 7,500 g (estimated) Asia-region model (T in the model code). Please confirm that the supply voltage, frequency and certification requirements at your site match this model before ordering. The rated capacity above is as stated by our supplier; check the heavy-duty and normal-duty ratings in the Yaskawa manual for your application.Series statusYaskawa has moved the A1000 range to the GA700 series. Remaining A1000 stock suits like-for-like replacement on existing machines.Supply from KoreaGenuine YASKAWA, sourced through Korean distribution. Normally held in stock by our Korean distributor; availability is reconfirmed when you order.Checkout is disabled for this item. Please use the quote form on this page and we will confirm price, availability and shipping before you order.Need a different capacity, a successor model or a mixed list of drives? Send the model numbers and quantities and we will quote them.

Read more less

YASKAWA CIMR-AT4A0031FAA — High Performance Vector Control AC Drive from the Yaskawa A1000 series, 400 V class, 3-phase, for 11 kW motors.Specification — CIMR-AT4A0031FAA Model CIMR-AT4A0031FAA Series Yaskawa A1000 Voltage class 400 V class Input 3-phase Motor capacity 11 kW Region code T (Asia) Shipping weight 8,500 g (estimated) Asia-region model (T in the model code). Please confirm that the supply voltage, frequency and certification requirements at your site match this model before ordering. The rated capacity above is as stated by our supplier; check the heavy-duty and normal-duty ratings in the Yaskawa manual for your application.Series statusYaskawa has moved the A1000 range to the GA700 series. Remaining A1000 stock suits like-for-like replacement on existing machines.Supply from KoreaGenuine YASKAWA, sourced through Korean distribution. Normally held in stock by our Korean distributor; availability is reconfirmed when you order.Checkout is disabled for this item. Please use the quote form on this page and we will confirm price, availability and shipping before you order.Need a different capacity, a successor model or a mixed list of drives? Send the model numbers and quantities and we will quote them.

Read more less

YASKAWA CIMR-AT4A0023FAA — High Performance Vector Control AC Drive from the Yaskawa A1000 series, 400 V class, 3-phase, for 7.5 kW motors.Specification — CIMR-AT4A0023FAA Model CIMR-AT4A0023FAA Series Yaskawa A1000 Voltage class 400 V class Input 3-phase Motor capacity 7.5 kW Region code T (Asia) Shipping weight 7,500 g (estimated) Asia-region model (T in the model code). Please confirm that the supply voltage, frequency and certification requirements at your site match this model before ordering. The rated capacity above is as stated by our supplier; check the heavy-duty and normal-duty ratings in the Yaskawa manual for your application.Series statusYaskawa has moved the A1000 range to the GA700 series. Remaining A1000 stock suits like-for-like replacement on existing machines.Supply from KoreaGenuine YASKAWA, sourced through Korean distribution. Normally held in stock by our Korean distributor; availability is reconfirmed when you order.Checkout is disabled for this item. Please use the quote form on this page and we will confirm price, availability and shipping before you order.Need a different capacity, a successor model or a mixed list of drives? Send the model numbers and quantities and we will quote them.

Read more less

Code SRJ Info Table connect type in unused key Durability improvement by built in wearing Low rotation resistance through using low-friction packing Ease to adjust angle by stopper (possible to attach absorber) Economical rotary cylinder of rack & pinion structure Possible to select absorber   ORDERING CODE SPECIFICATION

Read more less

Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 10 Sensing height 360mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)

Read more less

Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 16 Sensing height 600mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)

Read more less

Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 20 Sensing height 760mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)

Read more less

Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 80mm Number of optical axes 14 Sensing height 1,040mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø90mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 5m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 16 Sensing height/Total length 300/350mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø3.5, 3m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø30mm Response time Max. 6ms(frequency B selection is max. 7ms) Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) Weight Approx. 620g(approx. 360g)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 16 Sensing height/Total length 600/640mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 22 Sensing height/Total length 840/880mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 12 Sensing height/Total length 220/240mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 20 Sensing height/Total length 380/400mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 28 Sensing height/Total length 540/560mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 32 Sensing height/Total length 620/640mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 36 Sensing height/Total length 700/720mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 44 Sensing height/Total length 860/880mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 48 Sensing height/Total length 940/960mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl

Read more less

Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl

Read more less

Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl

Read more less

Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl

Read more less

Type Through beam Model NPN PAN20-T□N PAN40-T□N PNP PAN20-T□P PAN40-T□P Sensing distance 7 m Sensing object Opaque object over Ø32 ㎜ Opaque object over Ø52 ㎜ Optical axis pitch 20 ㎜ 40 ㎜ Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% max Current consumption Max. 170 ㎃ Max. 100 ㎃ Control output • NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Transmitter - M/S MODE switch-return type (Master / Slave) Receiver - D/L MODE switch-return type (Dark ON / Light ON) Operation LED Transmitter : Power indicator(Green LED), M/S display(Red LED) Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit Power reverse connection protection, Output short-circuit over-current protection, Mutual interference prevation function Response Time Max. 15 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500㎨ , X·Y·Z each direction 3 times Ambient illumination • Sunlight : Max. 10,000 Lux • Incandescent lamp : Max. 3,000 Lux Ambient temperature During operation : -10 ~ +55 ℃, During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP65 (IEC standard) Approval Connection method Relay connector type (Code length : 200 ㎜, Number of wires : 4P, Dimension : Ø5.5 ㎜) Material Case Aluminum front cover Acryl lens Acryl

Read more less

 PAN20 series Type A B C D1 E1 PAN20-T8 227 214.2 197 7 140 PAN20-T12 307 294.2 277 11 220 PAN20-T16 387 374.2 357 15 300 PAN20-T20 467 454.2 437 19 380 PAN20-T24 547 534.2 517 23 460 PAN20-T28 627 614.2 597 27 540 PAN20-T32 707 694.2 677 31 620 PAN20-T36 787 774.2 757 35 700 PAN20-T40 867 854.2 837 39 780 PAN20-T44 947 934.2 917 43 860 PAN20-T48 1027 1014.2 997 47 940 ■ PAN40 series Type A B C D2 E2 PAN40-T4 227 214.2 197 3 120 PAN40-T6 307 294.2 277 5 200 PAN40-T8 387 374.2 357 7 280 PAN40-T10 467 454.2 437 9 360 PAN40-T12 547 534.2 517 11 440 PAN40-T14 627 614.2 597 13 520 PAN40-T16 707 694.2 677 15 600 PAN40-T18 787 774.2 757 17 680 PAN40-T20 867 854.2 837 19 760 PAN40-T22 947 934.2 917 21 840 PAN40-T24 1027 1014.2 997 23 920 Production formation + PAN20 - Detection : Through Beam - Sensiong Distance : 7 m Model Number of optical axes Detecting Current Consumption (mA max) Detectable object PAN20-T8 8 EA 140 mm 70 mA Opaque object above Ø32 mm PAN20-T12 12 EA 220 mm 80 mA PAN20-T16 16 EA 300 mm 90 mA PAN20-T20 20 EA 380 mm 100 mA PAN20-T24 24 EA 460 mm 110 mA PAN20-T28 28 EA 540 mm 120 mA PAN20-T32 32 EA 620 mm 130 mA PAN20-T36 36 EA 700 mm 140 mA PAN20-T40 40 EA 780 mm 150 mA PAN20-T44 44 EA 860 mm 160 mA PAN20-T48 48 EA 940 mm 170 mA ※ Output types (NPN, PNP) are omitted. + PAN40 - Detection : Through Beam - Sensiong Distance : 7 m Model Number of optical axes Detecting Current Consumption (mA max) Detectable object PAN40-T4 4 EA 120 mm 50 mA Opaque object above Ø52 mm PAN40-T6 6 EA 200 mm 55 mA PAN40-T8 8 EA 280 mm 60 mA PAN40-T10 10 EA 360 mm 65 mA PAN40-T12 12 EA 440 mm 70 mA PAN40-T14 14 EA 520 mm 75 mA PAN40-T16 16 EA 600 mm 80 mA PAN40-T18 18 EA 680 mm 85 mA PAN40-T20 20 EA 760 mm 90 mA PAN40-T22 22 EA 840 mm 95 mA PAN40-T24 24 EA 920 mm 100 mA ※ Output types (NPN, PNP) are omitted.

Read more less

PAN20 series Type A B C D1 E1 PAN20-T8 227 214.2 197 7 140 PAN20-T12 307 294.2 277 11 220 PAN20-T16 387 374.2 357 15 300 PAN20-T20 467 454.2 437 19 380 PAN20-T24 547 534.2 517 23 460 PAN20-T28 627 614.2 597 27 540 PAN20-T32 707 694.2 677 31 620 PAN20-T36 787 774.2 757 35 700 PAN20-T40 867 854.2 837 39 780 PAN20-T44 947 934.2 917 43 860 PAN20-T48 1027 1014.2 997 47 940 ■ PAN40 series Type A B C D2 E2 PAN40-T4 227 214.2 197 3 120 PAN40-T6 307 294.2 277 5 200 PAN40-T8 387 374.2 357 7 280 PAN40-T10 467 454.2 437 9 360 PAN40-T12 547 534.2 517 11 440 PAN40-T14 627 614.2 597 13 520 PAN40-T16 707 694.2 677 15 600 PAN40-T18 787 774.2 757 17 680 PAN40-T20 867 854.2 837 19 760 PAN40-T22 947 934.2 917 21 840 PAN40-T24 1027 1014.2 997 23 920 Production formation + PAN20 - Detection : Through Beam - Sensiong Distance : 7 m Model Number of optical axes Detecting Current Consumption (mA max) Detectable object PAN20-T8 8 EA 140 mm 70 mA Opaque object above Ø32 mm PAN20-T12 12 EA 220 mm 80 mA PAN20-T16 16 EA 300 mm 90 mA PAN20-T20 20 EA 380 mm 100 mA PAN20-T24 24 EA 460 mm 110 mA PAN20-T28 28 EA 540 mm 120 mA PAN20-T32 32 EA 620 mm 130 mA PAN20-T36 36 EA 700 mm 140 mA PAN20-T40 40 EA 780 mm 150 mA PAN20-T44 44 EA 860 mm 160 mA PAN20-T48 48 EA 940 mm 170 mA ※ Output types (NPN, PNP) are omitted. + PAN40 - Detection : Through Beam - Sensiong Distance : 7 m Model Number of optical axes Detecting Current Consumption (mA max) Detectable object PAN40-T4 4 EA 120 mm 50 mA Opaque object above Ø52 mm PAN40-T6 6 EA 200 mm 55 mA PAN40-T8 8 EA 280 mm 60 mA PAN40-T10 10 EA 360 mm 65 mA PAN40-T12 12 EA 440 mm 70 mA PAN40-T14 14 EA 520 mm 75 mA PAN40-T16 16 EA 600 mm 80 mA PAN40-T18 18 EA 680 mm 85 mA PAN40-T20 20 EA 760 mm 90 mA PAN40-T22 22 EA 840 mm 95 mA PAN40-T24 24 EA 920 mm 100 mA ※ Output types (NPN, PNP) are omitted.

Read more less

odel NPN PAS-T4NL PAS-T8NL PAS-T12NL PAS-T16NL PAS-T20NL PAS-T4ND PAS-T8ND PAS-T12ND PAS-T16ND PAS-T20ND PNP PAS-T4PL PAS-T8PL PAS-T12PL PAS-T16PL PAS-T20PL PAS-T4PD PAS-T8PD PAS-T12PD PAS-T16PD PAS-T20PD Number of optical axis 4 8 12 16 20 Sensing width 60 mm 140 mm 220 mm 300 mm 380 mm Sensing distance 5 m Sensing object Opaque object over Ø30 ㎜ Optical axis pitch 20 mm Light source IR (860nm) Power voltage 12 - 24 VDC ±10% Ripple(p-p)10% Max Current consumption Max. 80 ㎃ Max. 90 ㎃ Max. 100 ㎃ Max. 110 ㎃ Max. 120 ㎃ Control output NPN / PNP open collector output • Load Current: Max. 100mA (26.4VDC standard) • Residual voltage - NPN: Max. 1 V, PNP:Max. 1 V Operation mode Light On or Dark On Operation LED • Transmitter : Power indicator(Green LED), M/S display(Red LED) • Receiver : Light on stability display(Green LED), output Display(Red LED), E1 display(Red LED), E2 display(Blue LED) Protection circuit • Power reverse connection protection, • Output short-circuit over-current protection, • Mutual interference prevation function Response Time Max. 7 ㎳ Insulation resistance Min. 20 ㏁ (500 VDC mega standard) Noise immunity Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V Dielectric strength 1,000 VAC (50/60 Hz 1min) Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z in each direction for 2 hours Shock resistance 500 m/s², X·Y·Z each direction 3 times Ambient illumination Sunlight : Max. 10,000 Lux, Incandescent lamp : Max. 3,000 Lux Ambient temperature • During operation : -10 ~ +55 ℃, • During storage : -25 ~ +70 ℃ (Without condensation or icing) Ambient humidity 35 ~ 85 % R.H. (Without condensation) Degree of protection IP40 (IEC standard) Approval Connection method cable withdrawal type (Number of wires : 5P, Code length : 3m , Dimension : Ø4mm) Material Case ABS front cover Acryl lens Acryl weight 160g 180g 200g 220g 240g

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 8 Sensing height/Total length 140/160mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 12 Sensing height/Total length 220/240mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 16 Sensing height/Total length 300/320mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 20 Sensing height/Total length 380/400mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 24 Sensing height/Total length 460/480mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 28 Sensing height/Total length 540/560mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 36 Sensing height/Total length 700/720mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 40 Sensing height/Total length 780/800mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)
