Description
Use spiral point taps in through holes (or holes with room below); in blind holes choose a spiral flute tap.

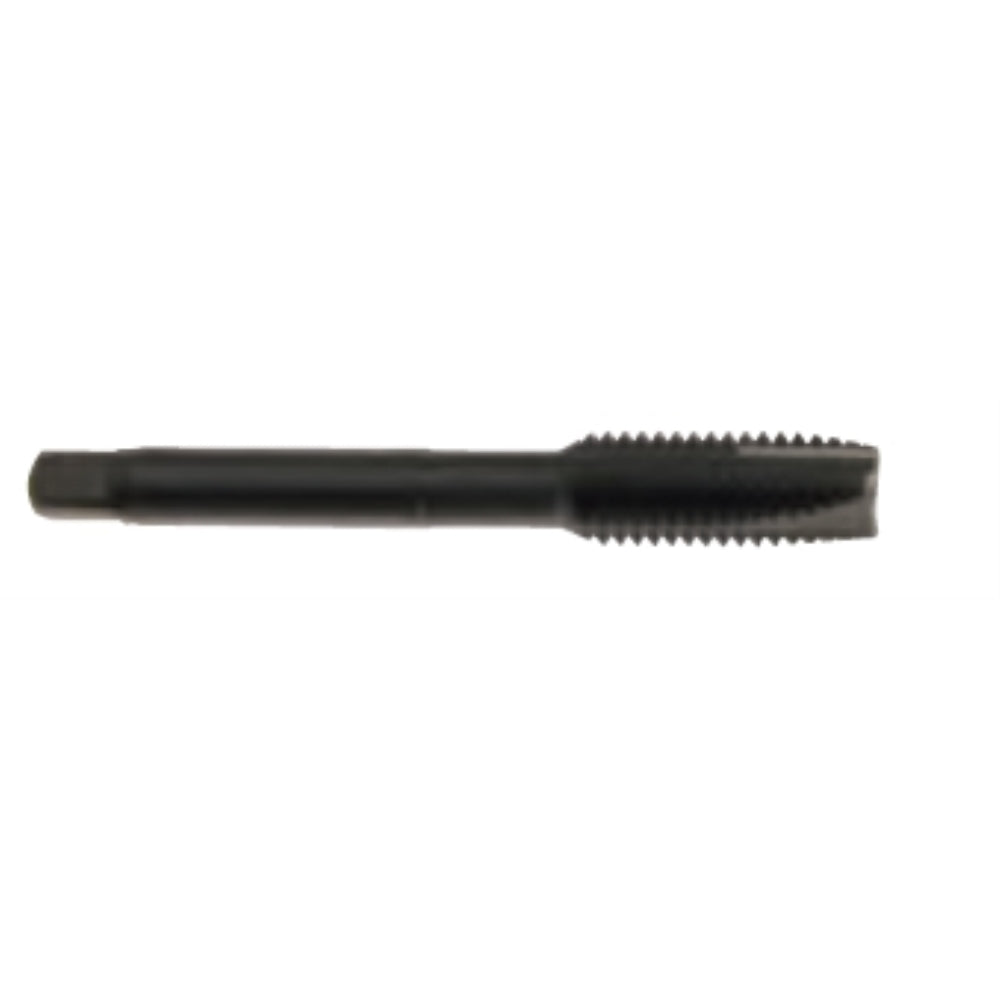

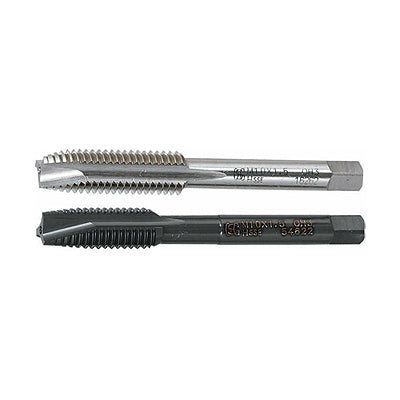

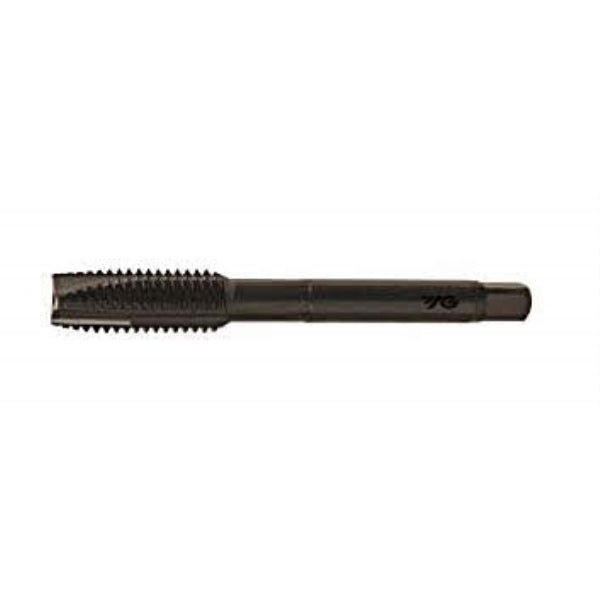

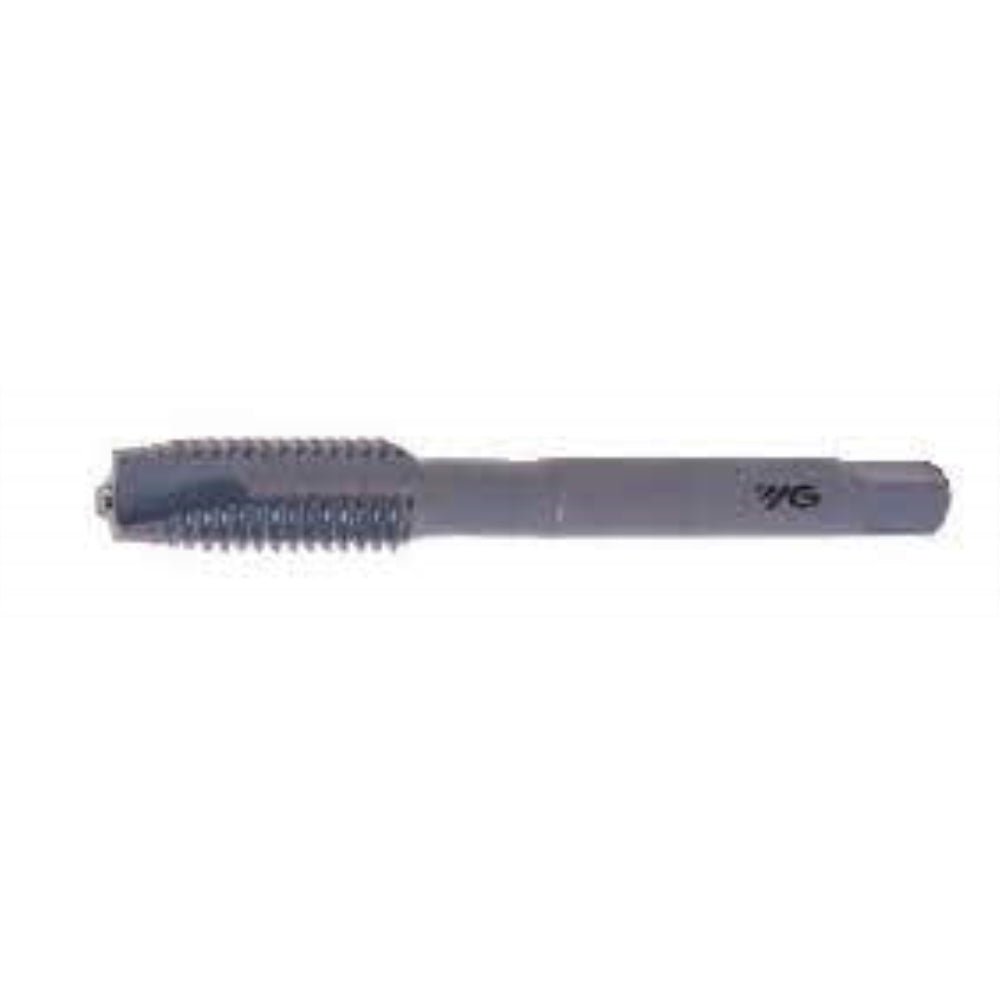

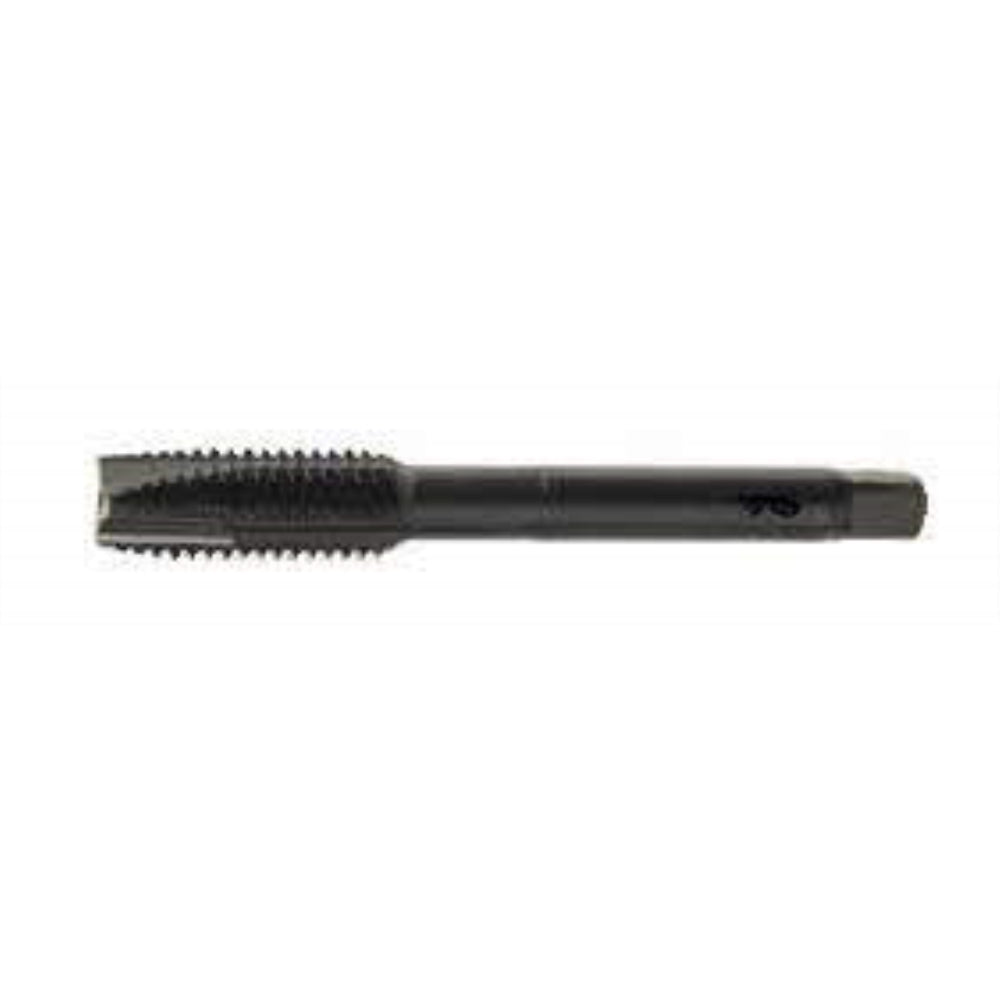

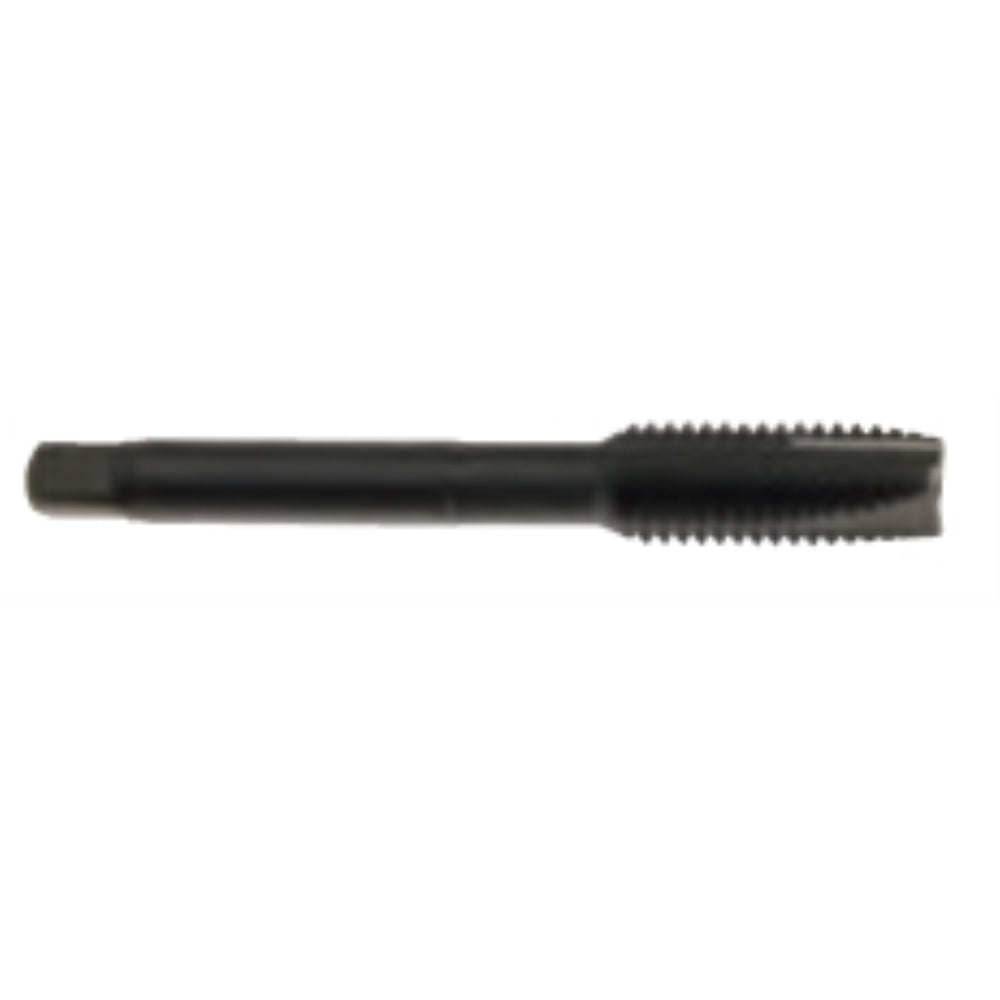

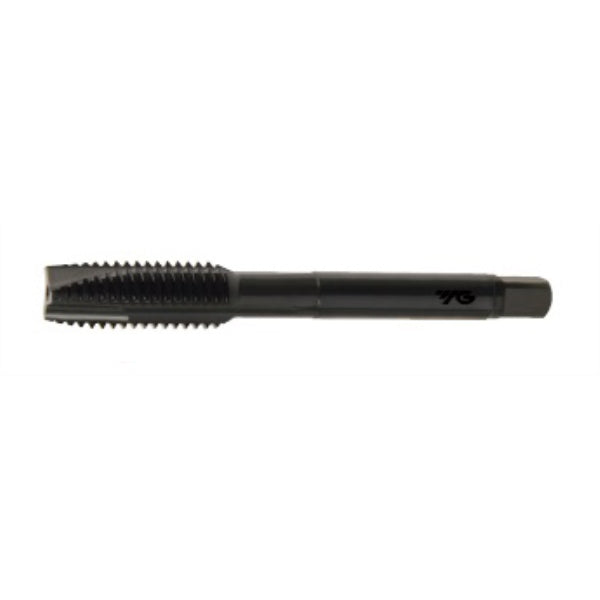

YG-1 Spiral Point Tap, Steam Oxide
A spiral point (gun) tap for cutting internal threads in through holes on machining centers and tapping machines. The angled flute ejects chips forward, ahead of the tap.
Key Features
- Angled point pushes chips ahead of the tap, so use it in through holes.
- Not recommended for blind holes, where chips can jam at the bottom.
- Match thread size, pitch and tolerance class to your gauge.
Specifications
| Model |
Specification |
Sold as |
| POT020-040 |
M2X0.4 (T1829132) |
1 pc |
| POT023-040 |
M2.3X0.4 |
1 pc |
| POT025-045 |
M2.5X0.45(T1829172) |
1 pc |
| POT026-045 |
M2.6X0.45(T1829492) |
1 pc |
| POT030-035 |
M3X0.35 (T1829212) |
1 pc |
| POT030-050 |
M3X0.5 (T1829202) |
1 pc |

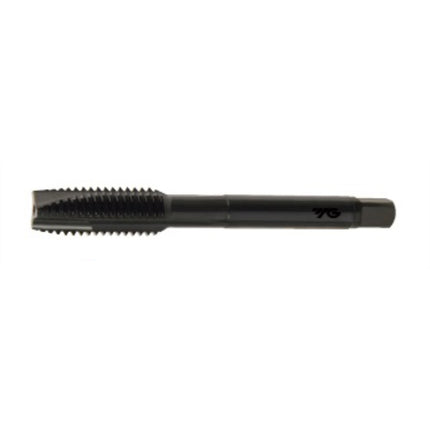

| POT035-060 |
M3.5X0.6(T1829222) |
1 pc |
| POT040-050 |
M4X0.5 (T1829252) |
1 pc |
| POT040-070 |
M4X0.7(T1829242) |
1 pc |
| POT050-050 |
M5X0.5 |
1 pc |
| POT050-080 |
M5X0.8 (T1829282) |
1 pc |
| POT060-075 |
M6X0.75 (T1829322) |
1 pc |
| POT060-100 |
M6X1.0 (T1829312) |
1 pc |
| POT070-100 |
M7X1.0(T1829342) |
1 pc |
| POT080-100 |
M8X1.0(T1829373) |
1 pc |
| POT080-125 |
M8X1.25(T1829363) |
1 pc |
| POT100-100 |
M10X1.0 (T1829443) |
1 pc |
| POT100-125 |
M10X1.25 (T1829433) |
1 pc |
| POT100-150 |
M10X1.5 (T1829423) |
1 pc |
| POT120-125 |
M12X1.25 |
1 pc |
| POT120-150 |
M12X1.5(T1829513) |
1 pc |
| POT120-175 |
M12X1.75 (T1829504) |
1 pc |
| POT140-150 |
M14X1.5 |
1 pc |
| POT140-200 |
M14X2.0 YH4 88.0L (T1829544) |
1 pc |
| POT160-150 |
M16X1.5(T1829613) |
1 pc |
| POT160-200 |
M16X2.0(T1829604) |
1 pc |
| POT180-150 |
M18X1.5(T1829674) |
1 pc |
| POT180-250 |
M18X2.5 (T1829654) |
1 pc |
| POT200-100 |
M20X1.0 |
1 pc |
| POT200-150 |
M20X1.5(T1829724) |
1 pc |
| POT200-200 |
M20X2.0 |
1 pc |
| POT200-250 |
M20X2.5(T1829704) |
1 pc |
| POT220-150 |
M22X1.5 |
1 pc |
| POT220-250 |
M22X2.5(T1829744) |
1 pc |
| POT240-300 |
M24X3.0 (T1829784) |
1 pc |
| POT270-300 |
M27X3.0(T1829864) |
1 pc |
| POT300-200 |
M30X2.0 |
1 pc |
| POT300-350 |
M30X3.5(T1829945) |
1 pc |
| POT180-100 |
M18X1.0(T1829683) |
1 pc |
| POT300-300 |
M30X3.0 |
1 pc |
| POT180-200 |
M18X2.0 |
1 pc |
| POT220-100 |
M22X1.0(T1829773) |
1 pc |
| POT220-200 |
M22X2.0 |
1 pc |
| POT240-100 |
M24X1.0 |
1 pc |
| POT240-200 |
M24X2.0 (T1829794) |
1 pc |
| POT250-150 |
M25X1.5(T1829834) |
1 pc |
| POT250-200 |
M25X2.0 |
1 pc |
| POT260-150 |
M26X1.5(T1829854) |
1 pc |
| POT260-200 |
M26X2.0 |
1 pc |
| POT270-150 |
M27X1.5 |
1 pc |
| POT270-200 |
M27X2.0 |
1 pc |
| POT300-150 |
M30X1.5(T1829974) |
1 pc |
| POT300-300 |
M30X3.0 |
1 pc |
| POT330-150 |
M33X1.5 (T1829A74) |
1 pc |
| POT360-300 |
M36X3.0 (T1829B44) |
1 pc |
| POT014-030 |
M1.4X0.3 YH1 34.0L (T1829071) |
1 pc |
| POT016-035 |
M1.6X0.35 |
1 pc |
| POT018-035 |
M1.8X0.35 |
1 pc |
| POT022-045 |
M2.2X0.45(T1829152) |
1 pc |
| POT150-150 |
M15X1.5 |
1 pc |
15 more sizes are available in the option selector.
- Brand: YG-1
- Country of origin: Korea
About YG-1
YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.
