YG-1 4G MILLS Ball End Mill, 2F

Description

Confirm the radius as well as the diameter, because variants in the same line are specified by both.

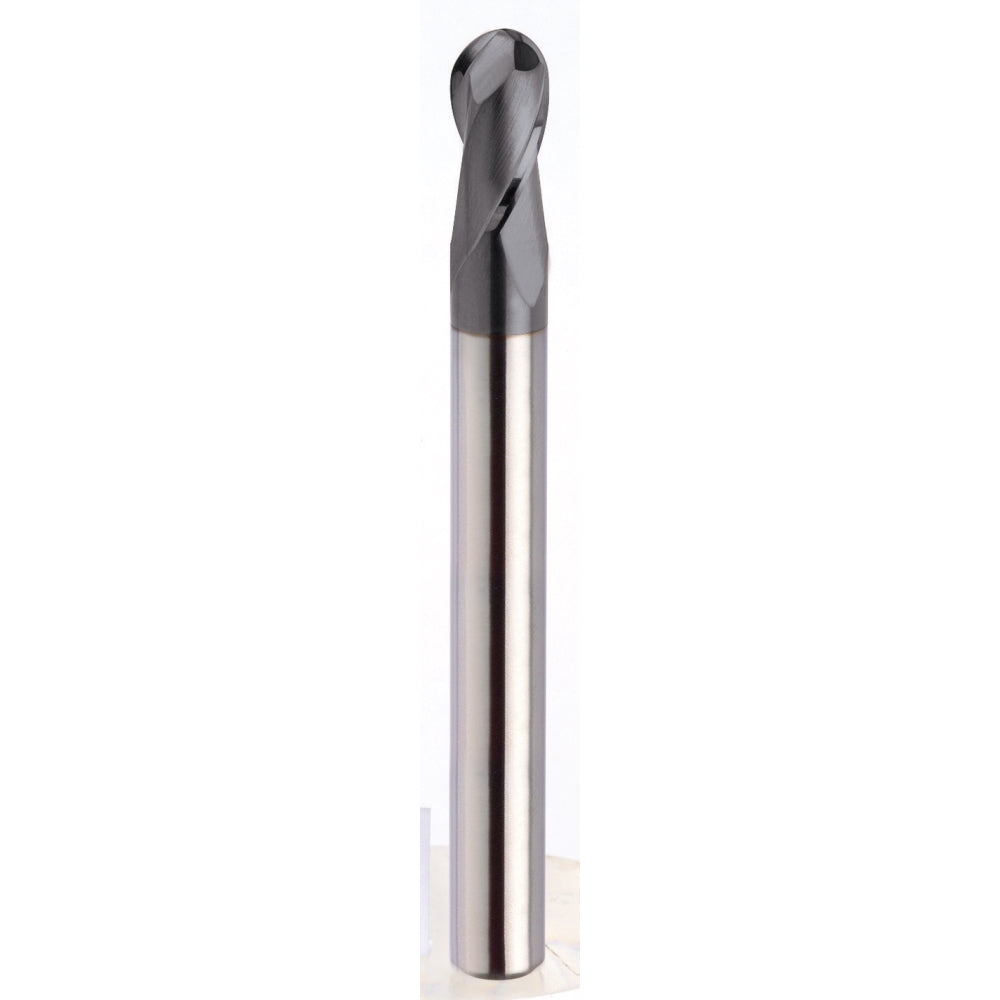

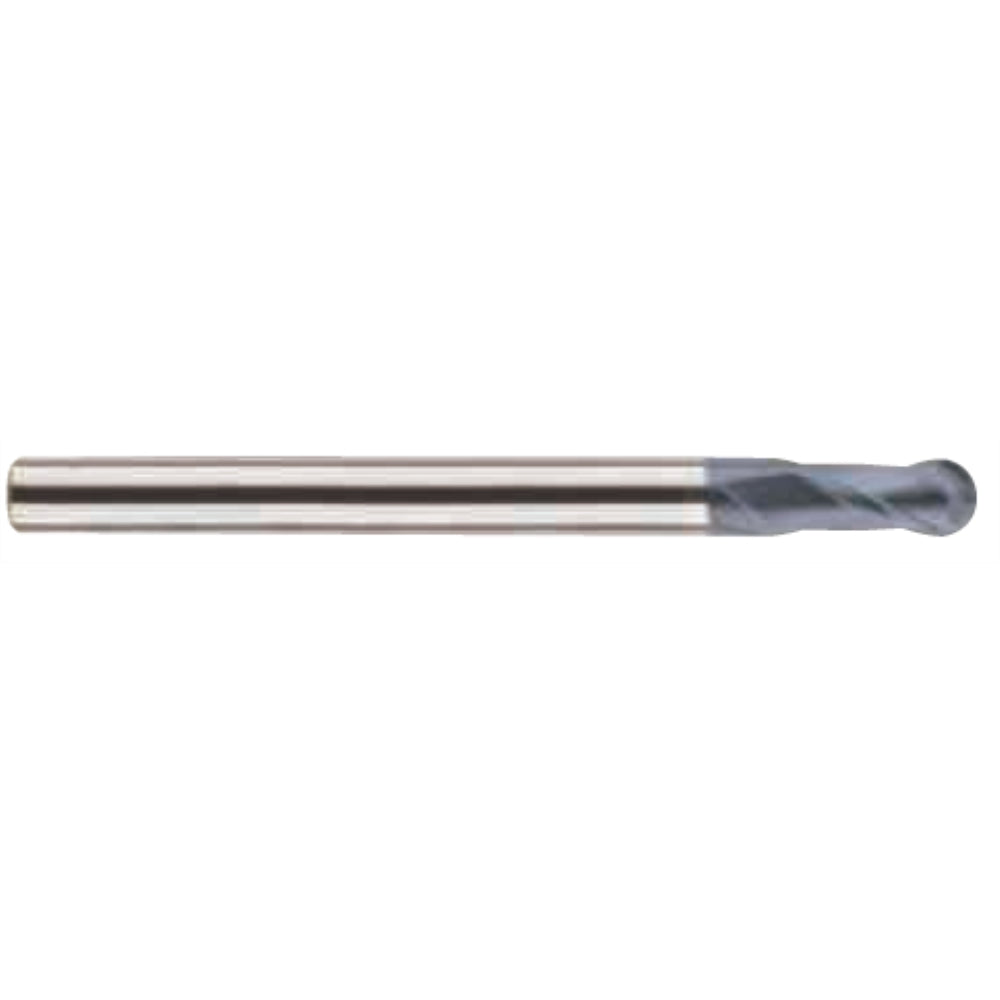

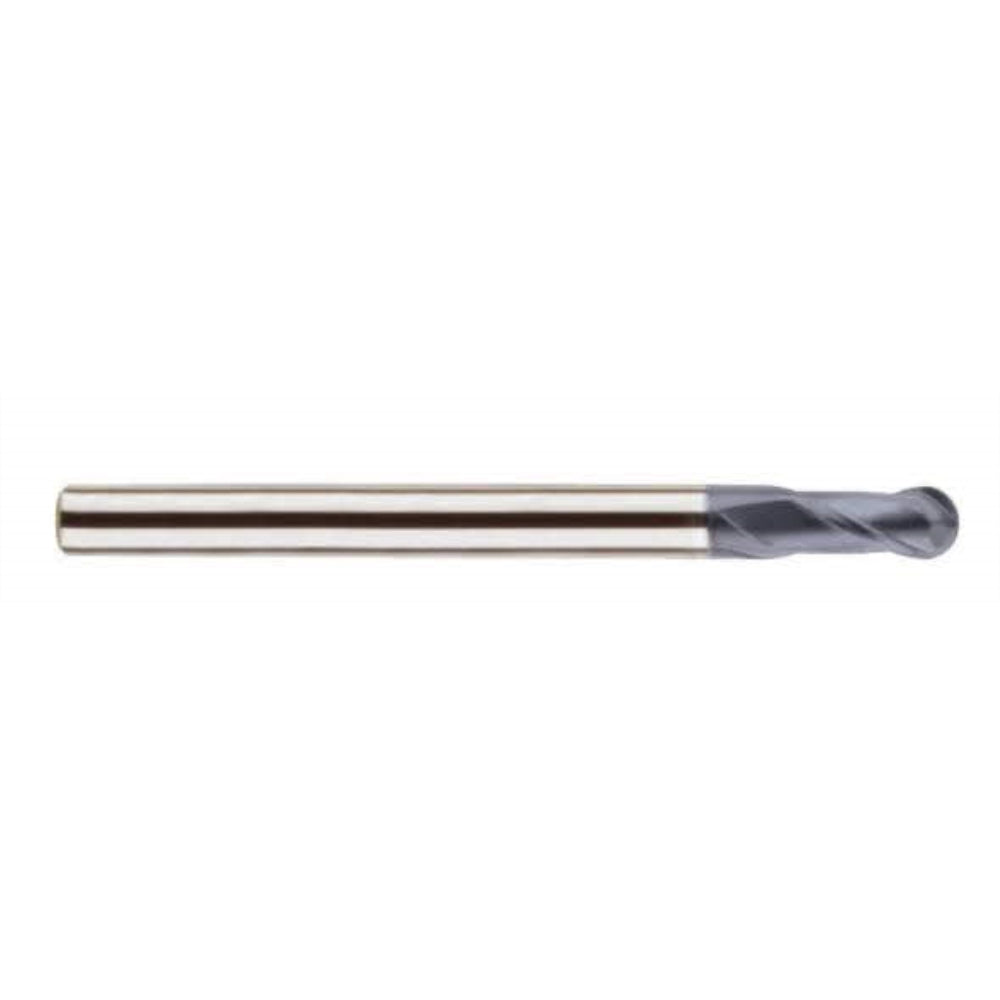

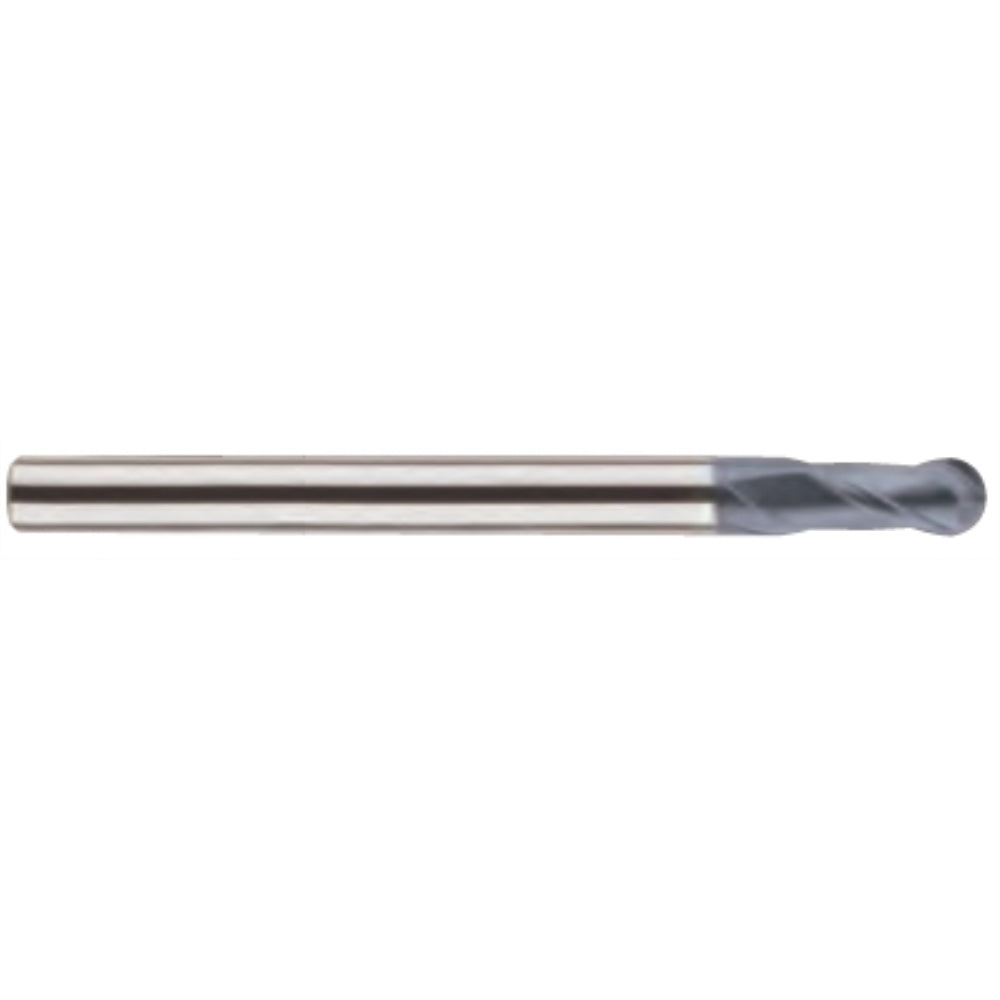

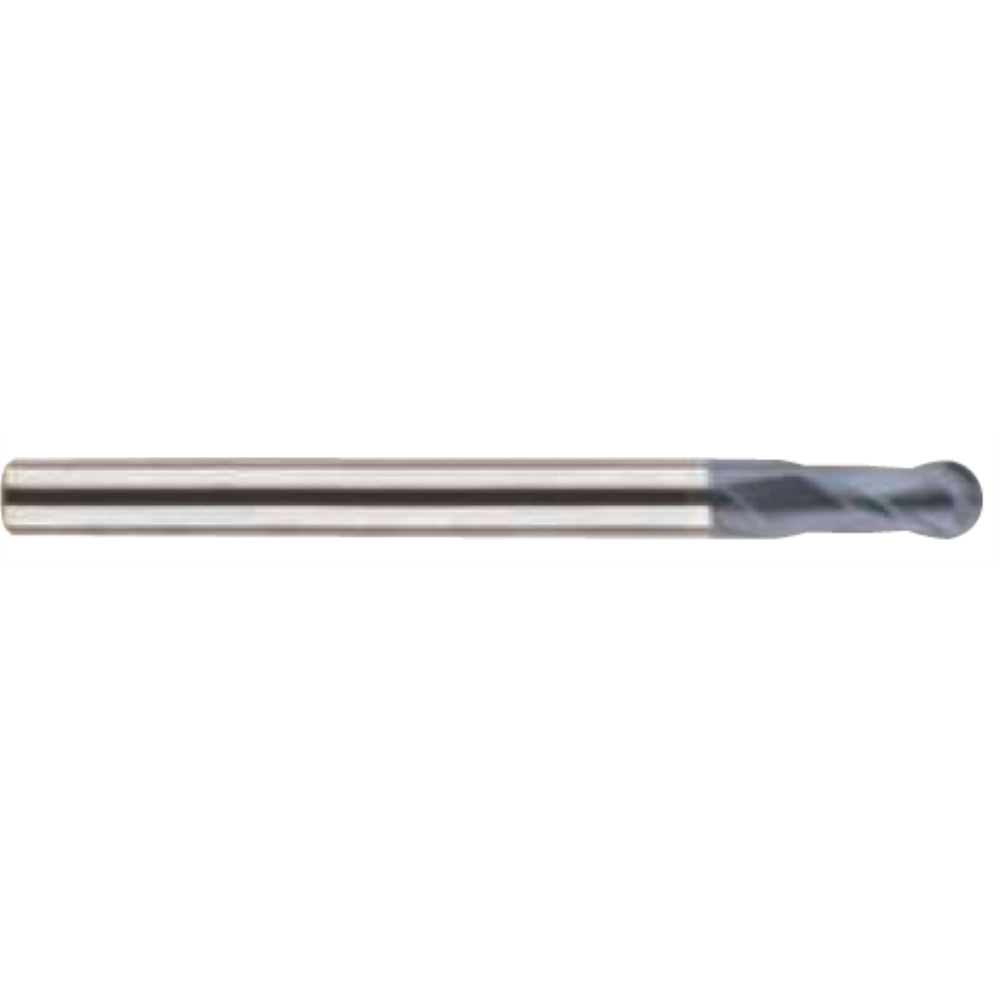

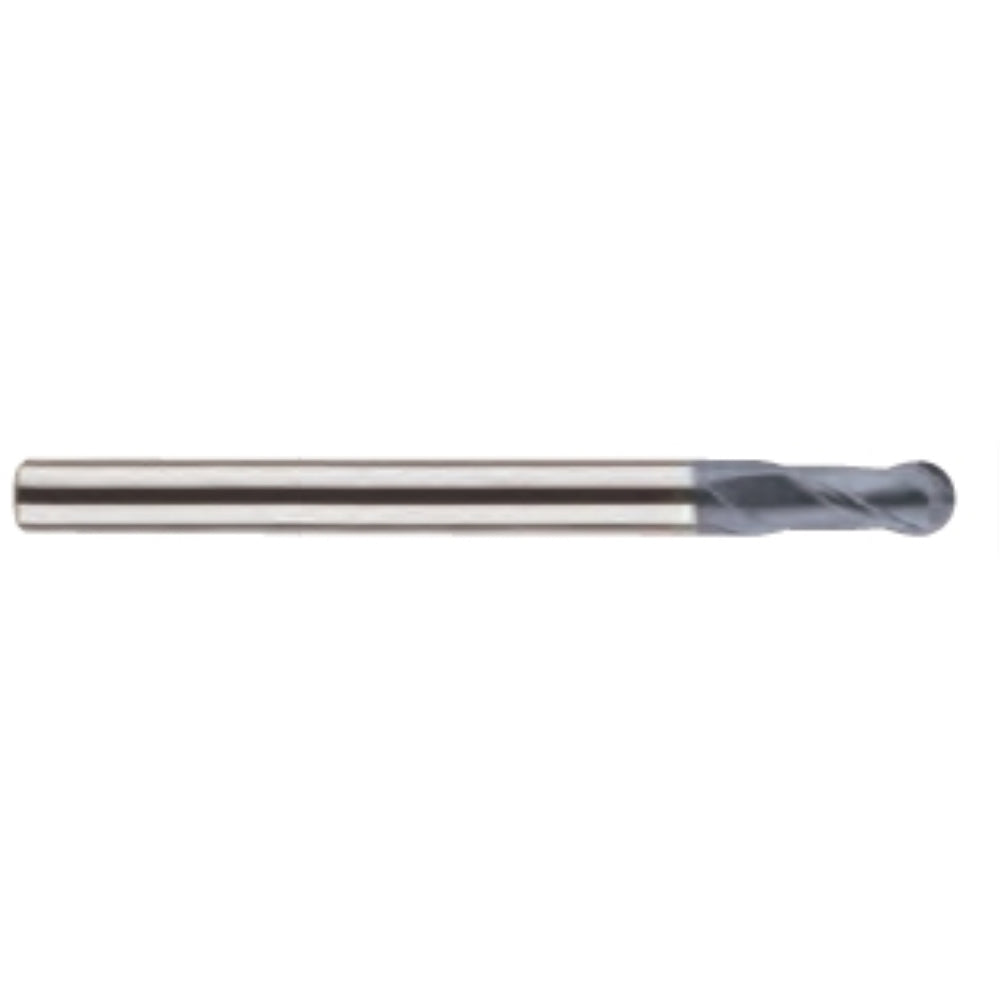

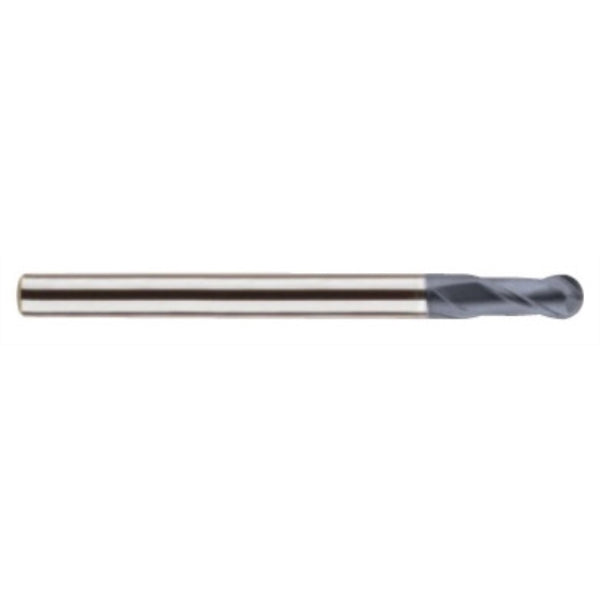

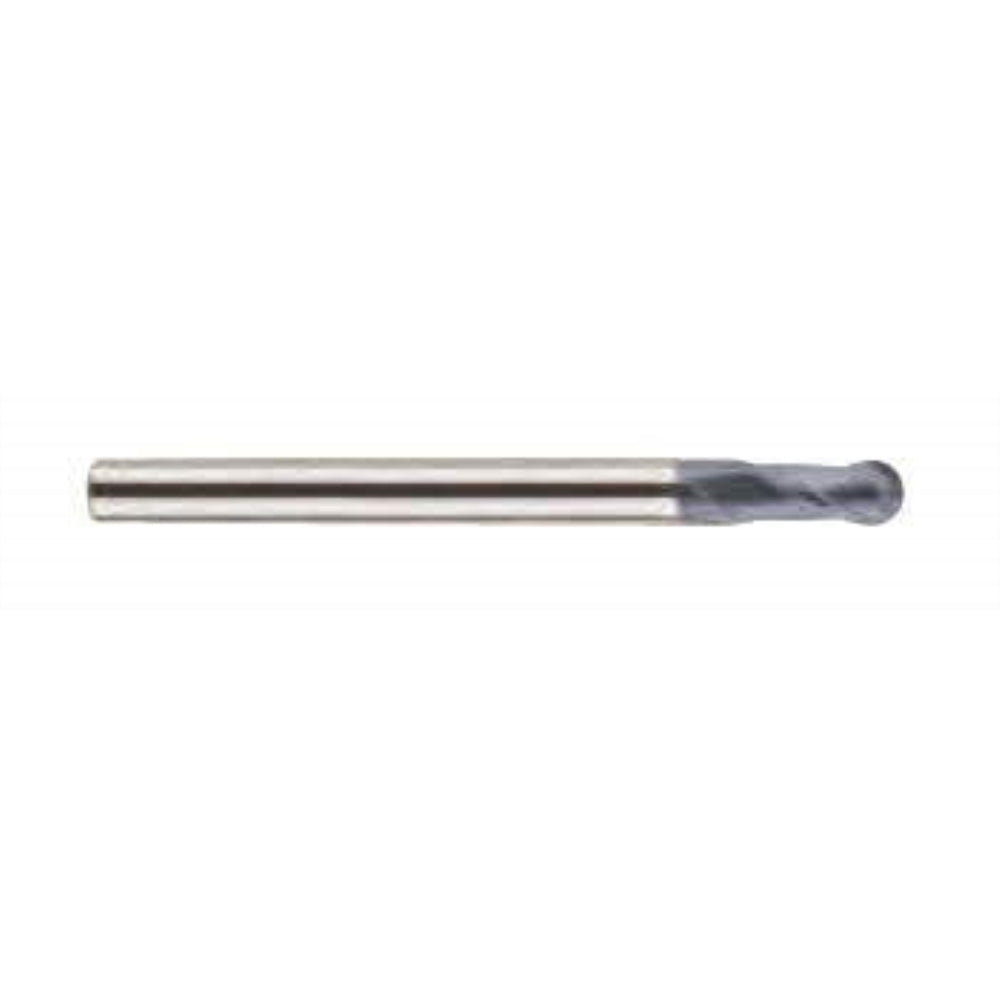

YG-1 4G MILLS Ball End Mill, 2F

A ball end mill for 3D contouring, mold and die surfaces, and rounded pocket floors. Used on milling machines and machining centers in mold shops, job shops and production plants.

Key Features

  • Ball nose leaves a full-radius profile; stepover sets the scallop height on curved surfaces.
  • Cutting speed is lowest at the tip, so keep the tool engaged off dead center.
  • Flute count varies by size; fewer flutes give chip room, more give a finer finish.
  • Match the shank diameter to your collet or holder before ordering.

Specifications

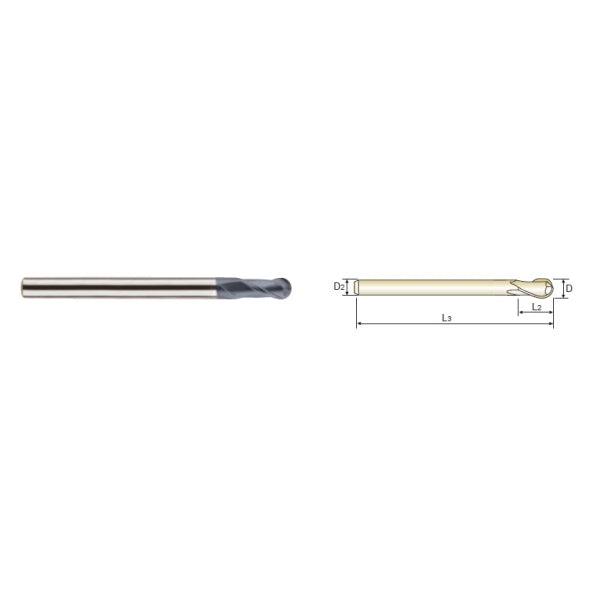

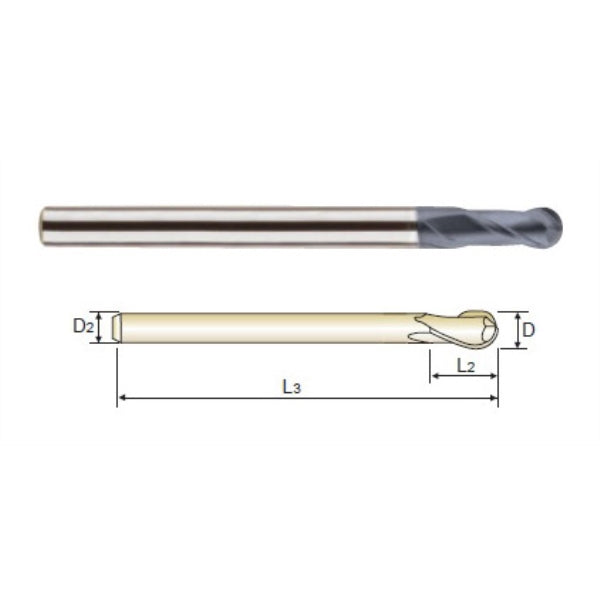

Model Specification Sold as
4SBE-0425R D8.5X10X16X100 (SEMD98085) 1 pc
4SBE-0325R D6.5X8X13X90 (SEMD98065) 1 pc
4SBE-040R-50 D8.0X8X12X50 (SEMD98080050) 1 pc
4SBE-0015R D3.0X4X6X60 (SEMD980304S) 1 pc
4SBE-040R-090 D8X8X12X90 (SEMD98080090) 1 pc
4SBE-0005R D0.1X4X0.2X40 (SEMD98001) 1 pc
4SBE-070R D14X12X26X100 (SEMD98140) 1 pc
4SBE-015R-3 D3.0X3X6X60 (SEMD980303S) 1 pc
4SBE-0015R D0.3X4X0.6X40 (SEMD98003) 1 pc
4SBE-001R D0.2X4X0.4X40 (SEMD98002) 1 pc
4SBE-020R-4S D4X4X8X100 (SEMD980401004S) 1 pc
4SBE-070R-14S D14X14X26X100 (SEMD9814014S) 1 pc
4SBE-020R-50 D4X6X6X50 (SEMD98040050) 1 pc
4SBE-100R D20.0X20X38X150 (SEMD98200) 1 pc
4SBE-100R-100 D20.0X20X30X100 (SEMD98200100) 1 pc
4SBE-050R-90 D10.0X10X15X90 (SEMD98100090) 1 pc
4SBE-0225R D4.5X6X9X80 (SEMD98045) 1 pc
4SBE-0035R D0.7X4X1.4X40 (SEMD98007) 1 pc
4SBE-0275R D5.5X6X11X90 (SEMD98055) 1 pc
4SBE-025R-60 D5.0X6X7.5X60 (SEMD98050060) 1 pc
4SBE-050R-60 D10.0X10X15X60 (SEMD98100060) 1 pc
4SBE-060R-80 D12.0X12X18X80 (SEMD98120080) 1 pc
4SBE-080R-100 D16.0X16X24X100 (SEMD98160100) 1 pc
4SBE-002R D0.4X4X0.8X40 (SEMD98004) 1 pc
4SBE-100R-200 D20X20X38X200 (SEMD98200200) 1 pc
4SBE-050R-200 D10X10X18X200 (SEMD98100200) 1 pc
4SBE-060R-60 D12X12X18X60 (SEMD98120060) 1 pc
4SBE-025R-5S D5X5X10X80 (SEMD980505S) 1 pc
4SBE-090R D18X16X34X150 (SEMD98180) 1 pc
4SBE-015R-80 D3.0X6X6X80 (SEMD98030080) 1 pc
4SBE-060R-100 D12X12X18X100 (SEMD98120100 ) 1 pc
4SBE-060R-200 D12X12X22X200 (SEMD98120220) 1 pc
4SBE-010R-40 D2X6X3X40 (SEMD98020040) 1 pc
4SBE-015R-40 D3X6X4.5X40 (SEMD98030040) 1 pc
4SBE-005R-3S D1.0X3X2.5X50 (SEMD980103S) 1 pc
4SBE-060R-90 12X12X18X90 (SEMD98120090) 1 pc
4SBE-080R-180 D16.0X16X30X180 (SEMD98160180) 1 pc
4SBE-080R-200 D16X16X30X200 (SEMD98160200) 1 pc
4SBE-060R-180 D12X12X22X180 (SEMD98120180) 1 pc
4SBE-050R-50 D10.0X10X15X50 (SEMD98100050) 1 pc
4SBE-004R-08 D0.8X4X0.8X40 (SEMD98008S) 1 pc
4SBE-005R-70 D1.0X6X2.5X70 (SEMD98010070) 1 pc
4SBE-0075R D0.15X4X0.3X40 (SEMD980015) 1 pc
  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
