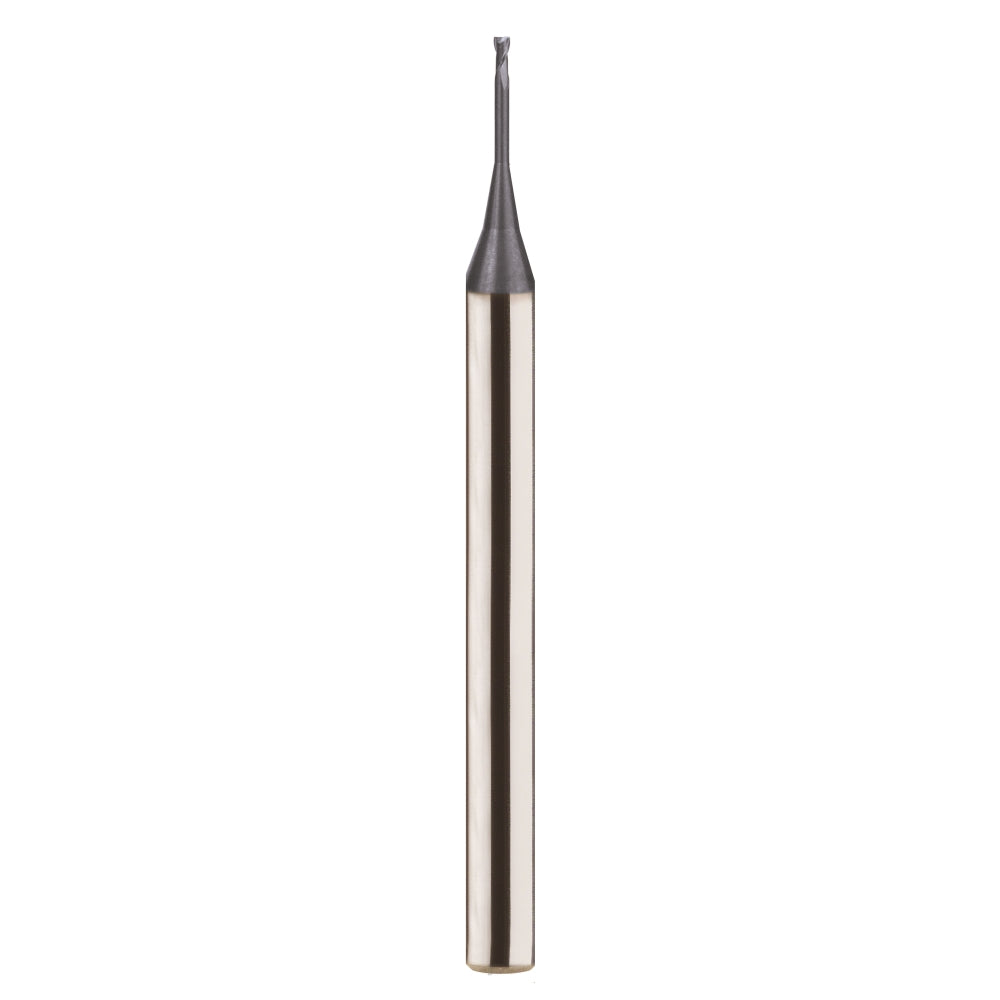

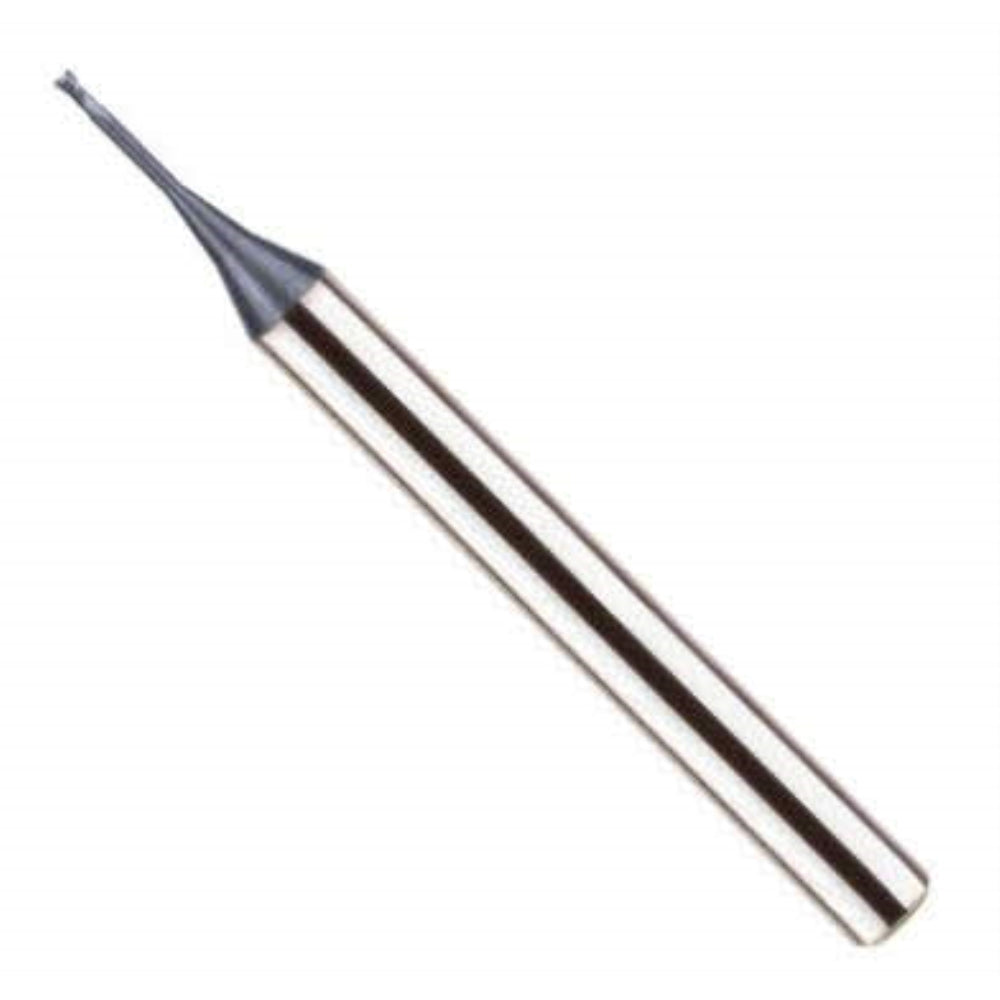

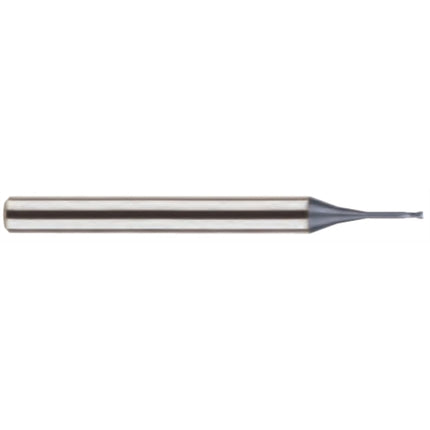

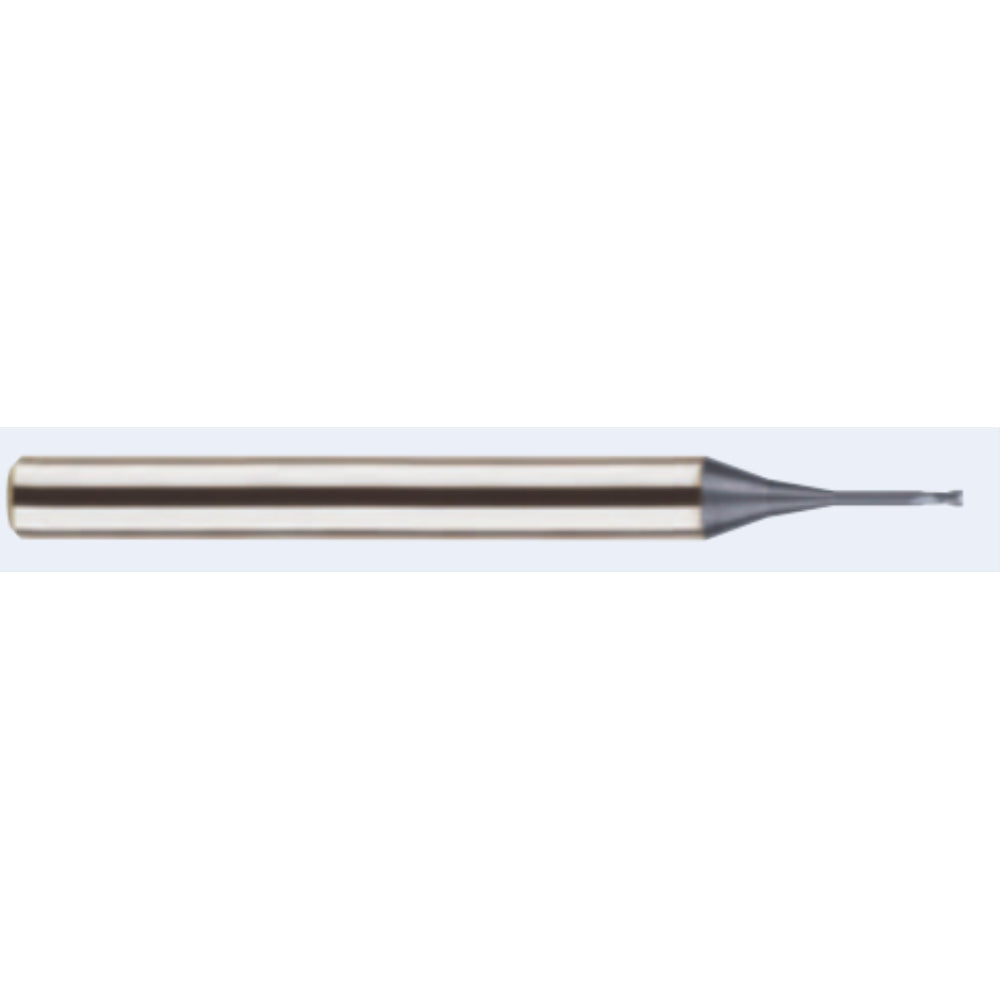

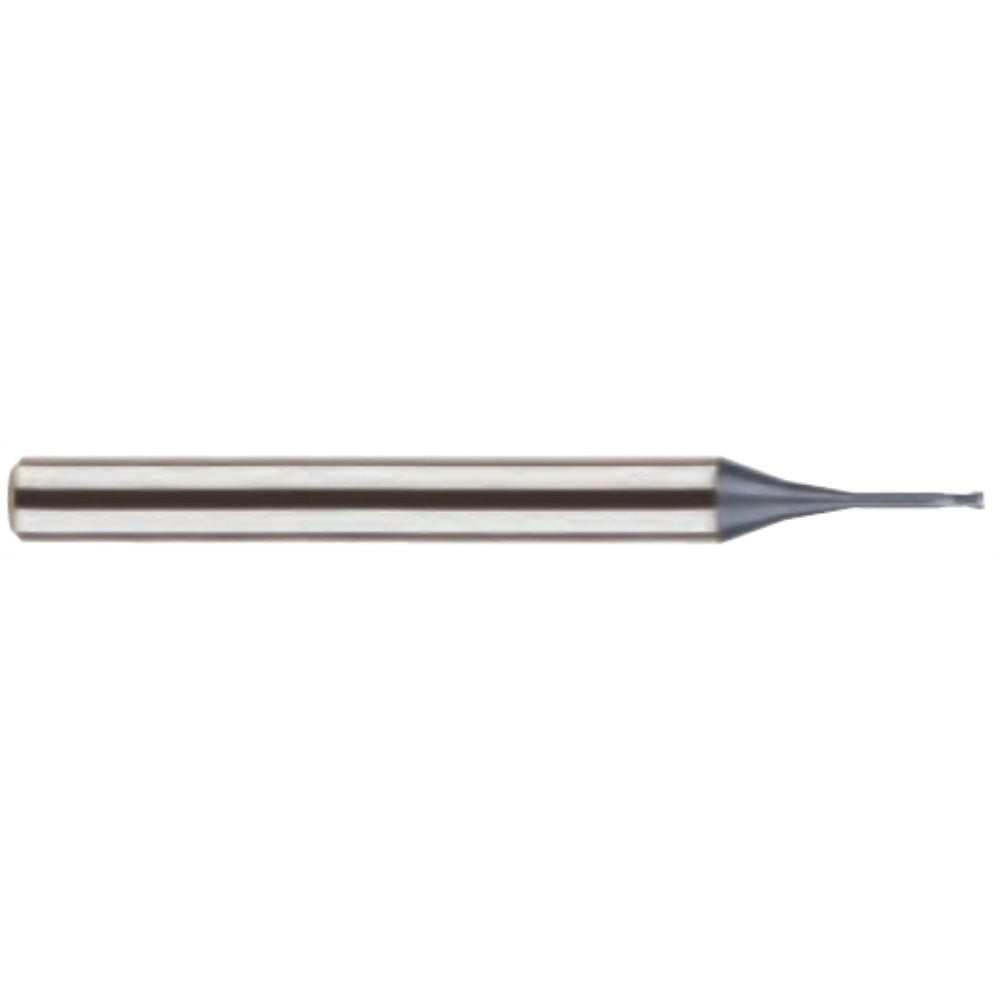

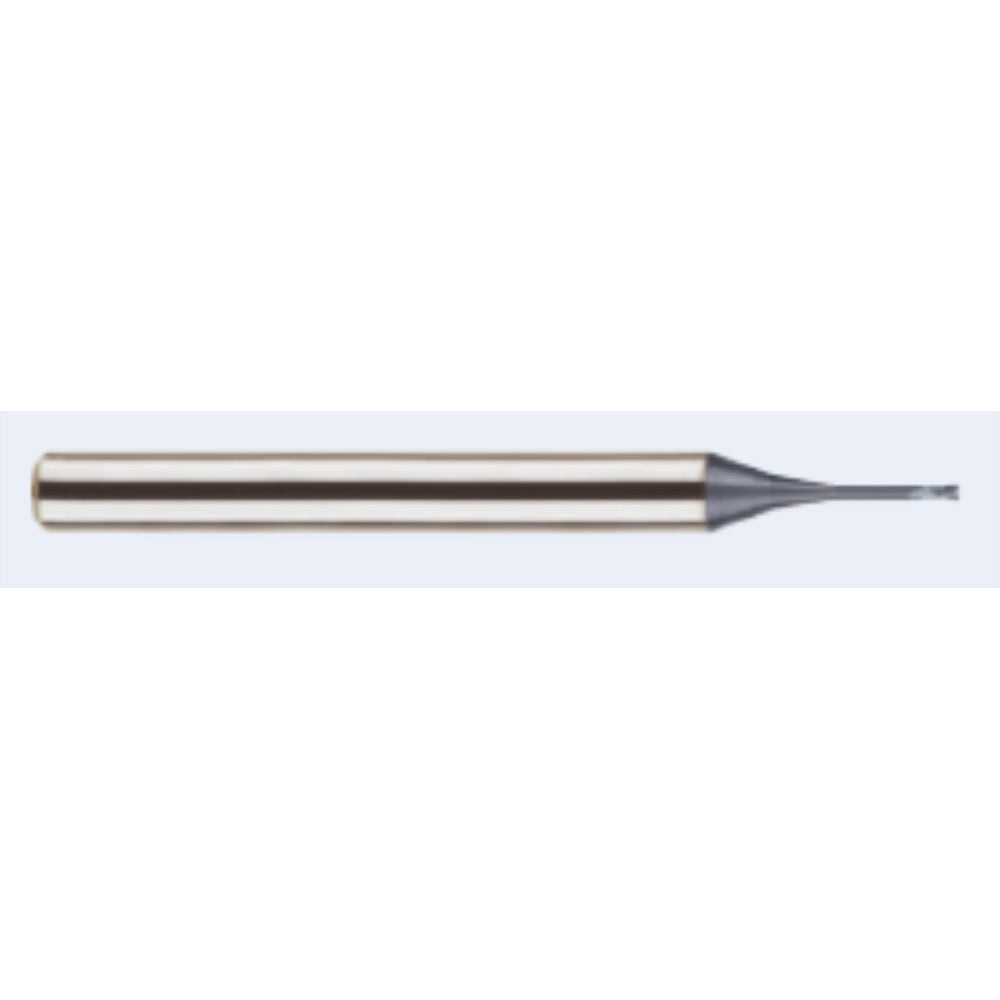

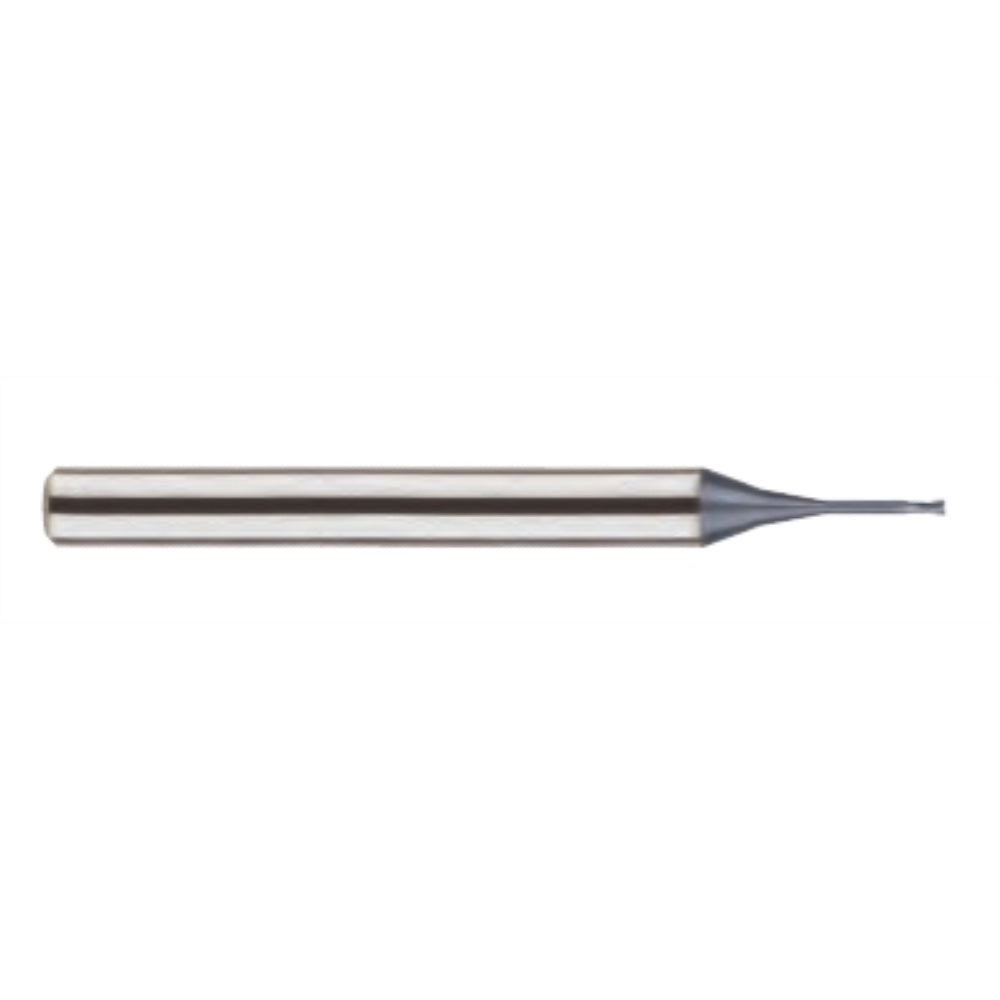

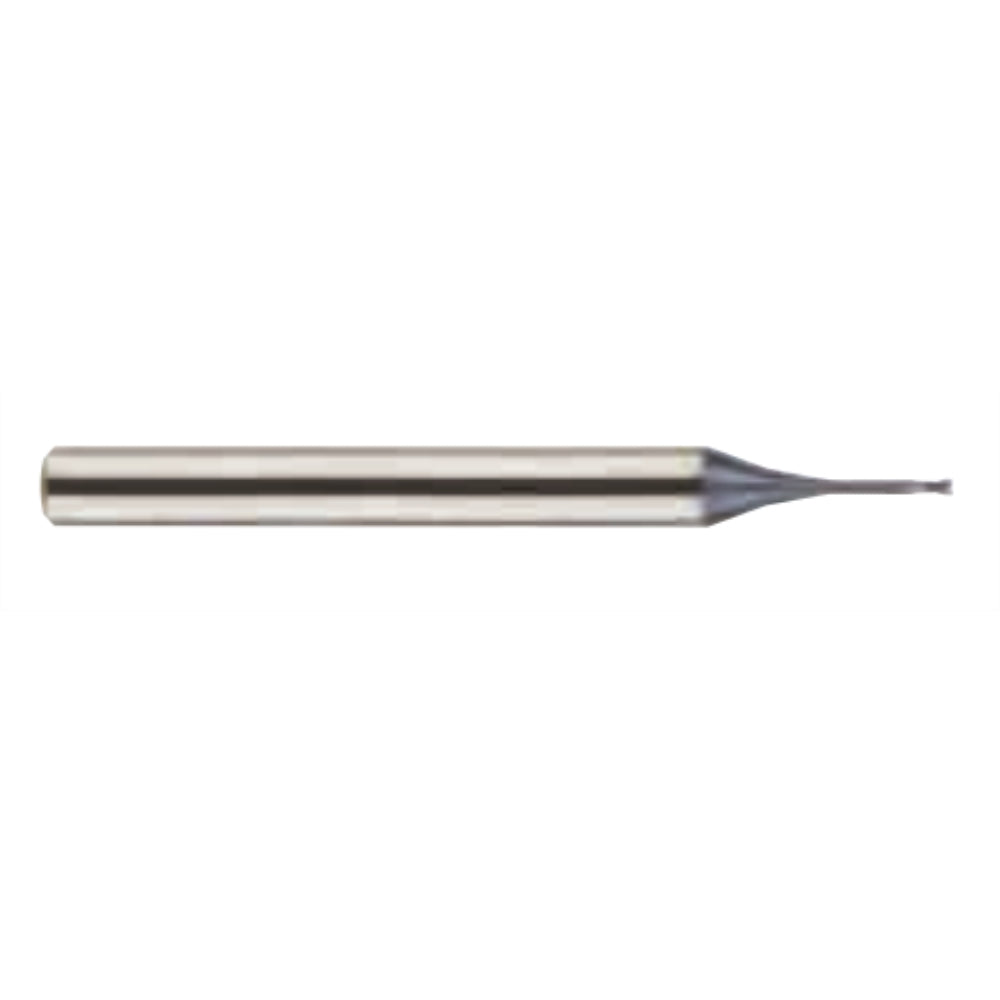

YG-1 4G MILL Long Neck Radius End Mill, 2F

Description

YG-1 4G MILL Long Neck Radius End Mill, 2F

A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

Key Features

  • The corner radius is stronger than a sharp corner and resists chipping.
  • Long neck reaches deep features but flexes more; use lighter cuts.
  • Check the work material and coating the series is made for.
  • Choose by diameter, flute count, length and shank to suit your holder.

Specifications

Model Specification Sold as
4SXCRE2-03R1-20 D3(R1)X6X4.5(20)X60 (SEME610301020) 1 pc
4SXCRE2-01R02-12 D1(R0.2)X4X1.5(12)X50 (SEME610100212) 1 pc
4SXCRE2-02R02-14 D2(R0.2)X4X3(14)X50 (SEME610200214) 1 pc
4SXCRE2-02R05-10 D2(R0.5)X4X3(10)X50 (SEME610200510) 1 pc
4SXCRE2-02R05-12 D2(R0.5)X4X3(12)X50 (SEME610200512) 1 pc
4SXCRE2-02R02-12 D2(R0.2)X4X3(12)X50 (SEME610200212) 1 pc
4SXCRE2-02R03-12 D2(R0.3)X4X3(12)X50 (SEME610200312) 1 pc
4SXCRE2-015R05-10 D1.5(R0.5)X4X2.3(10)X50 (SEME610150510) 1 pc
4SXCRE2-02R03-8 D2(R0.3)X4X3(8)X50 (SEME610200308) 1 pc
4SXCRE2-08R02-10 D0.8(R0.2)X4X1.2(10)X45 (SEME610080210) 1 pc
4SXCRE2-015R02-10 D1.5(R0.2)X4X2.3(10)X50 (SEME610150210) 1 pc
4SXCRE2-01R03-4 D1(R0.3)X4X1.5(4)X50 (SEME610100304) 1 pc
4SXCRE2-01R03-10 D1(R0.3)X4X1.5(10)X50 (SEME610100310) 1 pc
4SXCRE2-015R02-16 D1.5(R0.2)X4X2.3(16)X50 (SEME610150216) 1 pc
4SXCRE2-015R03-16 D1.5(R0.3)X4X2.3(16)X50 (SEME610150316) 1 pc
4SXCRE2-020R03-16 D2.0(R0.3)X4X3(16)X50 (SEME610200316) 1 pc
4SXCRE2-030R1-12 D3.0(R1)X6X4.5(12)X50 (SEME610301012) 1 pc
4SXCRE2-040R1-12 D4.0(R1)X6X6(12)X50 (SEME610401012) 1 pc
4SXCRE2-01R01-4 D1(R0.1)X4X1.5(4)X50 (SEME610100104) 1 pc
4SXCRE2-01R01-6 D1(R0.1)X4X1.5(6)X50 (SEME610100106) 1 pc
4SXCRE2-012R01-4 D1.2(R0.1)X4X1.8(4)X50 (SEME610120104) 1 pc
4SXCRE2-012R01-6 D1.2(R0.1)X4X1.8(6)X50 (SEME610120106) 1 pc
4SXCRE2-02R01-8 D2(R0.1)X4X3(8)X50 (SEME610200108) 1 pc
4SXCRE2-12R1-50 D12(R1)X12X30(50)X110 (SEME6112010110) 1 pc
4SXCRE2-004R005-2 D0.4(R0.05)X4X0.6(2)X40 (SEME6100400502) 1 pc
4SXCRE2-015R03-4 D1.5(R0.3)X4X2.3(4)X50 (SEME610150304) 1 pc
4SXCRE2-012R03-4 D1.2(R0.3)X4X1.8(4)X50 (SEME610120304) 1 pc
4SXCRE2-012R03-6 D1.2(R0.3)X4X1.8(6)X50 (SEME610120306) 1 pc
4SXCRE2-012R03-8 D1.2(R0.3)X4X1.8(8)X50 (SEME610120308) 1 pc
4SXCRE2-02R01-6 D2(R0.1)X4X3(6)X50 (SEME610200106) 1 pc
4SXCRE2-02R02-6 D2(R0.2)X4X3(6)X50 (SEME610200206) 1 pc
4SXCRE2-02R03-22 D2(R0.3)X4X3(22)X60 (SEME610200322) 1 pc
4SXCRE2-015R01-6 D1.5(R0.1)X4X2.3(6)X50 (SEME610150106) 1 pc
4SXCRE2-04R03-10 D4(R0.3)X6X6(10)X50 (SEME610400310) 1 pc
4SXCRE2-04R1-30 D4(R1)X6X6(30)X70 (SEME610401030) 1 pc
4SXCRE2-012R01-8 D1.2(R0.1)X4X1.8(8)X50 (SEME610120108) 1 pc
4SXCRE2-03R01-10 D3(R0.1)X6X4.5(10)X50 (SEME610300110) 1 pc
4SXCRE2-030R1-14 D3(R1)X6X4.5(14)X60 (SEME610301014) 1 pc
4SXCRE2-04R1-35 D4(R1)X6X6(35)X70 (SEME610401035) 1 pc
4SXCRE2-004R01-2 D0.4(R0.1)X4X0.6(2)X40 (SEME610040102) 1 pc
4SXCRE2-005R01-2 D0.5(R0.1)X4X0.7(2)X45 (SEME610050102) 1 pc
4SXCRE2-02R03-14 D2(R0.3)X4X3(14)X50 (SEME610200314) 1 pc
4SXCRE2-03R01-12 D3(R0.1)X6X4.5(12)X50 (SEME610300112) 1 pc
4SXCRE2-012R03-10 D1.2(R0.3)X4X1.8(10)X50 (SEME610120310) 1 pc
4SXCRE2-012R03-12 D1.2(R0.3)X4X1.8(12)X50 (SEME610120312) 1 pc
4SXCRE2-10R05-100 D10(R0.5)X10X25(40)X100 (SEME6110005100) 1 pc
4SXCRE2-015R02-14 D1.5(R0.2)X4X2.3(14)X50 (SEME610150214) 1 pc
4SXCRE2-08R10-35-100 D8(R1)X8X20(35)X100 (SEME6108010100) 1 pc
4SXCRE2-03R01-16 D3(R0.1)X6X4.5(16)X60 (SEME610300116) 1 pc
4SXCRE2-04R02-14 4(R0.2)X6X6(14)X60 (SEME610400214) 1 pc
4SXCRE2-04R01-20 4(R0.1)X6X6(20)X60 (SEME610400120) 1 pc
4SXCRE2-03R01-14 3(R0.1)X6X4.5(14)X60 (SEME610300114) 1 pc
4SXCRE2-01R03-16 D1(R0.3)X4X1.5(16)X50 (SEME610100316) 1 pc
4SXCRE2-02R02-20 D2(R0.2)X4X3(20)X50 (SEME610200220) 1 pc
4SXCRE2-04R01-16 4(R0.1)X6X6(16)X60 (SEME610400116) 1 pc
4SXCRE2-005R01-25 D0.5(R0.1)X4X0.7(2.5)X45 (SEME6100501025) 1 pc
4SXCRE2-004R01-1 D0.4(R0.1)X4X0.6(1)X40 (SEME610040101) 1 pc
4SXCRE2-004R01-3 D0.4(R0.1)X4X0.6(3)X40 (SEME610040103) 1 pc
4SXCRE2-005R01-3 D0.5(R0.1)X4X0.7(3)X45 (SEME610050103) 1 pc
4SXCRE2-004R005-015 D0.4(R0.05)X4X0.6(1.5)X40 (SEME61004005015) 1 pc

40 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

YG-1 4G MILL Long Neck Radius End Mill, 2FA corner-radius end mill has a rounded corner on its flat end,... Read more

SKU: kb-803-0077

$26.24 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    YG-1 4G MILL Long Neck Radius End Mill, 2F

    A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

    Key Features

    • The corner radius is stronger than a sharp corner and resists chipping.
    • Long neck reaches deep features but flexes more; use lighter cuts.
    • Check the work material and coating the series is made for.
    • Choose by diameter, flute count, length and shank to suit your holder.

    Specifications

    Model Specification Sold as
    4SXCRE2-03R1-20 D3(R1)X6X4.5(20)X60 (SEME610301020) 1 pc
    4SXCRE2-01R02-12 D1(R0.2)X4X1.5(12)X50 (SEME610100212) 1 pc
    4SXCRE2-02R02-14 D2(R0.2)X4X3(14)X50 (SEME610200214) 1 pc
    4SXCRE2-02R05-10 D2(R0.5)X4X3(10)X50 (SEME610200510) 1 pc
    4SXCRE2-02R05-12 D2(R0.5)X4X3(12)X50 (SEME610200512) 1 pc
    4SXCRE2-02R02-12 D2(R0.2)X4X3(12)X50 (SEME610200212) 1 pc
    4SXCRE2-02R03-12 D2(R0.3)X4X3(12)X50 (SEME610200312) 1 pc
    4SXCRE2-015R05-10 D1.5(R0.5)X4X2.3(10)X50 (SEME610150510) 1 pc
    4SXCRE2-02R03-8 D2(R0.3)X4X3(8)X50 (SEME610200308) 1 pc
    4SXCRE2-08R02-10 D0.8(R0.2)X4X1.2(10)X45 (SEME610080210) 1 pc
    4SXCRE2-015R02-10 D1.5(R0.2)X4X2.3(10)X50 (SEME610150210) 1 pc
    4SXCRE2-01R03-4 D1(R0.3)X4X1.5(4)X50 (SEME610100304) 1 pc
    4SXCRE2-01R03-10 D1(R0.3)X4X1.5(10)X50 (SEME610100310) 1 pc
    4SXCRE2-015R02-16 D1.5(R0.2)X4X2.3(16)X50 (SEME610150216) 1 pc
    4SXCRE2-015R03-16 D1.5(R0.3)X4X2.3(16)X50 (SEME610150316) 1 pc
    4SXCRE2-020R03-16 D2.0(R0.3)X4X3(16)X50 (SEME610200316) 1 pc
    4SXCRE2-030R1-12 D3.0(R1)X6X4.5(12)X50 (SEME610301012) 1 pc
    4SXCRE2-040R1-12 D4.0(R1)X6X6(12)X50 (SEME610401012) 1 pc
    4SXCRE2-01R01-4 D1(R0.1)X4X1.5(4)X50 (SEME610100104) 1 pc
    4SXCRE2-01R01-6 D1(R0.1)X4X1.5(6)X50 (SEME610100106) 1 pc
    4SXCRE2-012R01-4 D1.2(R0.1)X4X1.8(4)X50 (SEME610120104) 1 pc
    4SXCRE2-012R01-6 D1.2(R0.1)X4X1.8(6)X50 (SEME610120106) 1 pc
    4SXCRE2-02R01-8 D2(R0.1)X4X3(8)X50 (SEME610200108) 1 pc
    4SXCRE2-12R1-50 D12(R1)X12X30(50)X110 (SEME6112010110) 1 pc
    4SXCRE2-004R005-2 D0.4(R0.05)X4X0.6(2)X40 (SEME6100400502) 1 pc
    4SXCRE2-015R03-4 D1.5(R0.3)X4X2.3(4)X50 (SEME610150304) 1 pc
    4SXCRE2-012R03-4 D1.2(R0.3)X4X1.8(4)X50 (SEME610120304) 1 pc
    4SXCRE2-012R03-6 D1.2(R0.3)X4X1.8(6)X50 (SEME610120306) 1 pc
    4SXCRE2-012R03-8 D1.2(R0.3)X4X1.8(8)X50 (SEME610120308) 1 pc
    4SXCRE2-02R01-6 D2(R0.1)X4X3(6)X50 (SEME610200106) 1 pc
    4SXCRE2-02R02-6 D2(R0.2)X4X3(6)X50 (SEME610200206) 1 pc
    4SXCRE2-02R03-22 D2(R0.3)X4X3(22)X60 (SEME610200322) 1 pc
    4SXCRE2-015R01-6 D1.5(R0.1)X4X2.3(6)X50 (SEME610150106) 1 pc
    4SXCRE2-04R03-10 D4(R0.3)X6X6(10)X50 (SEME610400310) 1 pc
    4SXCRE2-04R1-30 D4(R1)X6X6(30)X70 (SEME610401030) 1 pc
    4SXCRE2-012R01-8 D1.2(R0.1)X4X1.8(8)X50 (SEME610120108) 1 pc
    4SXCRE2-03R01-10 D3(R0.1)X6X4.5(10)X50 (SEME610300110) 1 pc
    4SXCRE2-030R1-14 D3(R1)X6X4.5(14)X60 (SEME610301014) 1 pc
    4SXCRE2-04R1-35 D4(R1)X6X6(35)X70 (SEME610401035) 1 pc
    4SXCRE2-004R01-2 D0.4(R0.1)X4X0.6(2)X40 (SEME610040102) 1 pc
    4SXCRE2-005R01-2 D0.5(R0.1)X4X0.7(2)X45 (SEME610050102) 1 pc
    4SXCRE2-02R03-14 D2(R0.3)X4X3(14)X50 (SEME610200314) 1 pc
    4SXCRE2-03R01-12 D3(R0.1)X6X4.5(12)X50 (SEME610300112) 1 pc
    4SXCRE2-012R03-10 D1.2(R0.3)X4X1.8(10)X50 (SEME610120310) 1 pc
    4SXCRE2-012R03-12 D1.2(R0.3)X4X1.8(12)X50 (SEME610120312) 1 pc
    4SXCRE2-10R05-100 D10(R0.5)X10X25(40)X100 (SEME6110005100) 1 pc
    4SXCRE2-015R02-14 D1.5(R0.2)X4X2.3(14)X50 (SEME610150214) 1 pc
    4SXCRE2-08R10-35-100 D8(R1)X8X20(35)X100 (SEME6108010100) 1 pc
    4SXCRE2-03R01-16 D3(R0.1)X6X4.5(16)X60 (SEME610300116) 1 pc

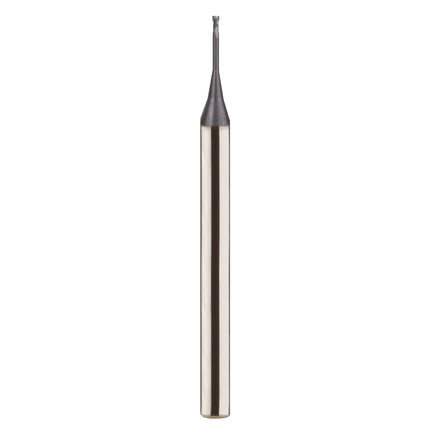

    4SXCRE2-04R02-14 4(R0.2)X6X6(14)X60 (SEME610400214) 1 pc
