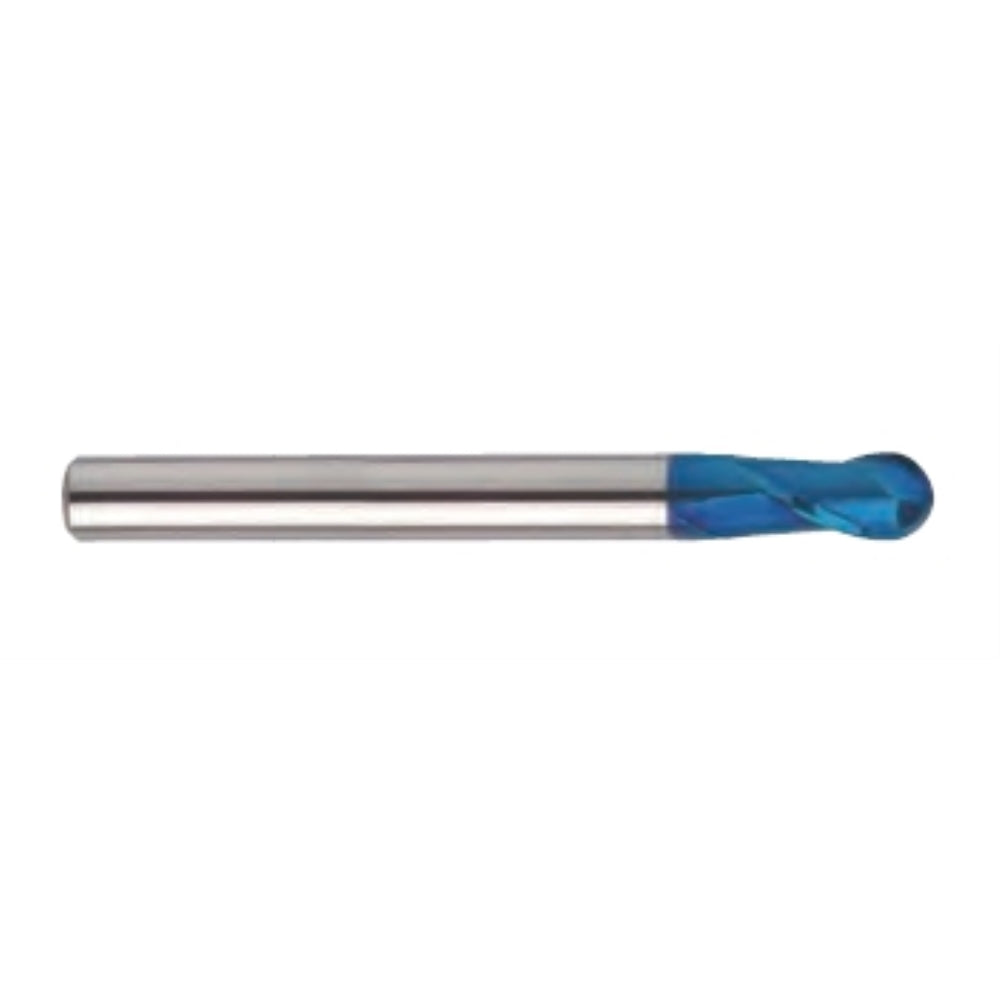

YG-1 E·FORCE Ball End Mill, 2F

Description

YG-1 E·FORCE Ball End Mill, 2F

A ball-nose end mill has a fully rounded tip for contouring curved surfaces, 3D profiling and cutting fillets. It is used on CNC machining centers and milling machines in mold, die and general machining.

Key Features

  • Rounded tip leaves a smooth radius in pockets and 3D surfaces.
  • Check the work material and coating the series is made for.
  • Choose by diameter, flute count, length and shank to suit your holder.

Specifications

Model Specification Sold as
EFBE-0005R D0.1X4X0.2X40 (GNX98001) 1 pc
EFBE-00075R D0.15X4X0.3X40 (GNX980015) 1 pc
EFBE-00075R-S D0.15X4X0.15X40 (GNX980015S) 1 pc
EFBE-0005R-S D0.1X4X0.1X40 (GNX98001S) 1 pc
EFBE-001R D0.2X4X0.4X40 (GNX98002) 1 pc
EFBE-001R-S D0.2X4X0.2X40 (GNX98002S) 1 pc
EFBE-0015R D0.3X4X0.6X40 (GNX98003) 1 pc
EFBE-0015R-S D0.3X4X0.3X40 (GNX98003S) 1 pc
EFBE-002R D0.4X4X0.8X40 (GNX98004) 1 pc
EFBE-002R-S D0.4X4X0.4X40 (GNX98004S) 1 pc
EFBE-0025R D0.5X4X1.0X40 (GNX98005) 1 pc
EFBE-0025R-S D0.5X4X0.5X40 (GNX98005S) 1 pc
EFBE-003R D0.6X4X1.2X40 (GNX98006) 1 pc
EFBE-003R-S D0.6X4X0.6X40 (GNX98006S) 1 pc
EFBE-0035R D0.7X4X1.4X40 (GNX98007) 1 pc
EFBE-0035R-S D0.7X4X0.7X40 (GNX98007S) 1 pc
EFBE-004R D0.8X4X1.6X40 (GNX98008) 1 pc
EFBE-004R-S D0.8X4X0.8X40 (GNX98008S) 1 pc
EFBE-0045R D0.9X4X1.8X40 (GNX98009) 1 pc
EFBE-0045R-S D0.9X4X0.9X40 (GNX98009S) 1 pc
EFBE-005R D1X6X2.5X50 (GNX98010) 1 pc
EFBE-005R-40 D1X6X1.5X40 (GNX98010040) 1 pc
EFBE-005R-40-4S D1X4X1.5X40 (GNX980100404S) 1 pc
EFBE-005R-3S D1X3X2.5X50 (GNX980103S) 1 pc
EFBE-005R-4S D1X4X2.5X50 (GNX980104S) 1 pc
EFBE-006R D1.2X6X3X50 (GNX98012) 1 pc
EFBE-006R-040 D1.2X6X2X40 (GNX98012040) 1 pc
EFBE-006R-40-4S D1.2X4X2X40 (GNX980120404S) 1 pc
EFBE-006R-3S D1.2X3X3X50 (GNX980123S) 1 pc
EFBE-006R-4S D1.2X4X3X50 (GNX980124S) 1 pc
EFBE-0075R D1.5X6X4X50 (GNX98015) 1 pc
EFBE-0075R-40 D1.5X6X2.5X40 (GNX98015040) 1 pc
EFBE-0075R-40-4S D1.5X4X2.5X40 (GNX980150404S) 1 pc
EFBE-0075R-3S D1.5X3X4X50 (GNX980153S) 1 pc
EFBE-0075R-4S D1.5X4X4X50 (GNX980154S) 1 pc
EFBE-010R D2X6X5X50 (GNX98020) 1 pc
EFBE-010R-40 D2X6X3X40 (GNX98020040) 1 pc
EFBE-010R-40-4S D2X4X3X40 (GNX980200404S) 1 pc
EFBE-010R-3S D2X3X5X50 (GNX980203S) 1 pc
EFBE-010R-4S D2X4X5X50 (GNX980204S) 1 pc
EFBE-0125R D2.5X6X6X60 (GNX98025) 1 pc
EFBE-0125R-40 D2.5X6X4X40 (GNX98025040) 1 pc
EFBE-0125R-40-4S D2.5X4X4X40 (GNX980250404S) 1 pc
EFBE-0125R-3S D2.5X3X6X60 (GNX980253S) 1 pc
EFBE-0125R-4S D2.5X4X6X60 (GNX980254S) 1 pc
EFBE-015R D3X6X6X60 (GNX98030) 1 pc
EFBE-015R-40 D3X6X4.5X40 (GNX98030040) 1 pc
EFBE-015R-40-4S D3X4X4.5X40 (GNX980300404S) 1 pc
EFBE-015R-3S D3X3X6X60 (GNX980303S) 1 pc
EFBE-015R-4S D3X4X6X60 (GNX980304S) 1 pc
EFBE-0175R D3.5X6X8X70 (GNX98035) 1 pc
EFBE-020R D4X6X8X70 (GNX98040) 1 pc
EFBE-020R-50 D4X6X6X50 (GNX98040050) 1 pc
EFBE-020R-50-4S D4X4X6X50 (GNX980400504S) 1 pc
EFBE-0225R D4.5X6X9X80 (GNX98045) 1 pc
EFBE-025R-50 D5X6X7.5X50 (GNX98050050) 1 pc
EFBE-025R-60 D5X6X7.5X60 (GNX98050060) 1 pc
EFBE-025R-5S D5X5X10X80 (GNX980505S) 1 pc
EFBE-0275R D5.5X6X11X90 (GNX98055) 1 pc
EFBE-030R D6X6X10X90 (GNX98060) 1 pc

38 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

YG-1 E·FORCE Ball End Mill, 2FA ball-nose end mill has a fully rounded tip for contouring curved surfaces, 3D profiling... Read more

SKU: kb-958-2228

$35.63 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
