Description

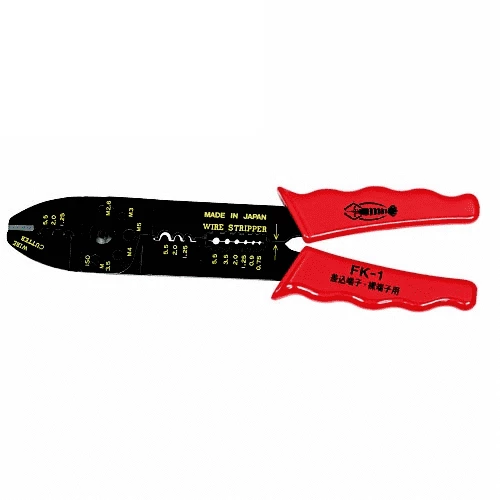

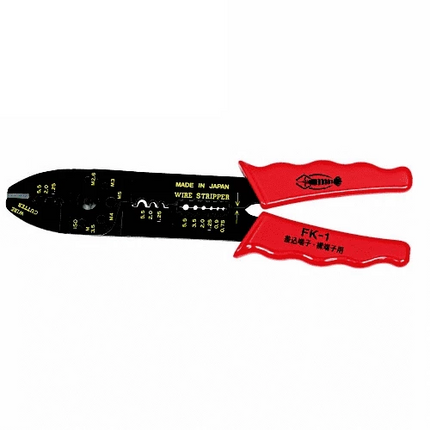

Electric equipment crimping tool FK1 For open barrel terminals, for non-insulated terminals and sleeves
● One tool for crimping open barrel terminals / non-insulated terminals, and bolt / cable cutting and stripping
• Wire cutter
• Open barrel crimp tooth opening (Insertion terminal: 1.25, 2 mm2) * Use dies indicated with INS crimp the insulation area
• Bolt cutter (Applicable sizes: M2.6 to M5)
• Crimp tooth opening for non-insulated terminal and P.B sleeve (1.25, 2, 5.5 sq.)
• Wire stripper (Applicable sizes: 0.75 to 5.5 sq.)
Use / Application• For automobile maintenance
• For telephone and telecommunication cable wiring
• For factory maintenance
• For household appliances (Audio equipment, TVs, etc.)
• For various handcrafts and hobbies
Specifications
| Product Code. |
Model No. |
weight |
size1 |
| 215-0114 |
FK1 |
275g |
235mm |
! IMPORTANT SAFETY INSTRUCTIONS◆ Precautions in use
Do not use this tool on live wires. This may result in electric shock.
Simple tools for automotive repairs and hobbies. Do not use this tool for crimping important parts such as indoor wiring.
! CAUTIONS ON INSCRIBED VALUES※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.
※ Specifications may be changed for improvement without prior notice.
