Description

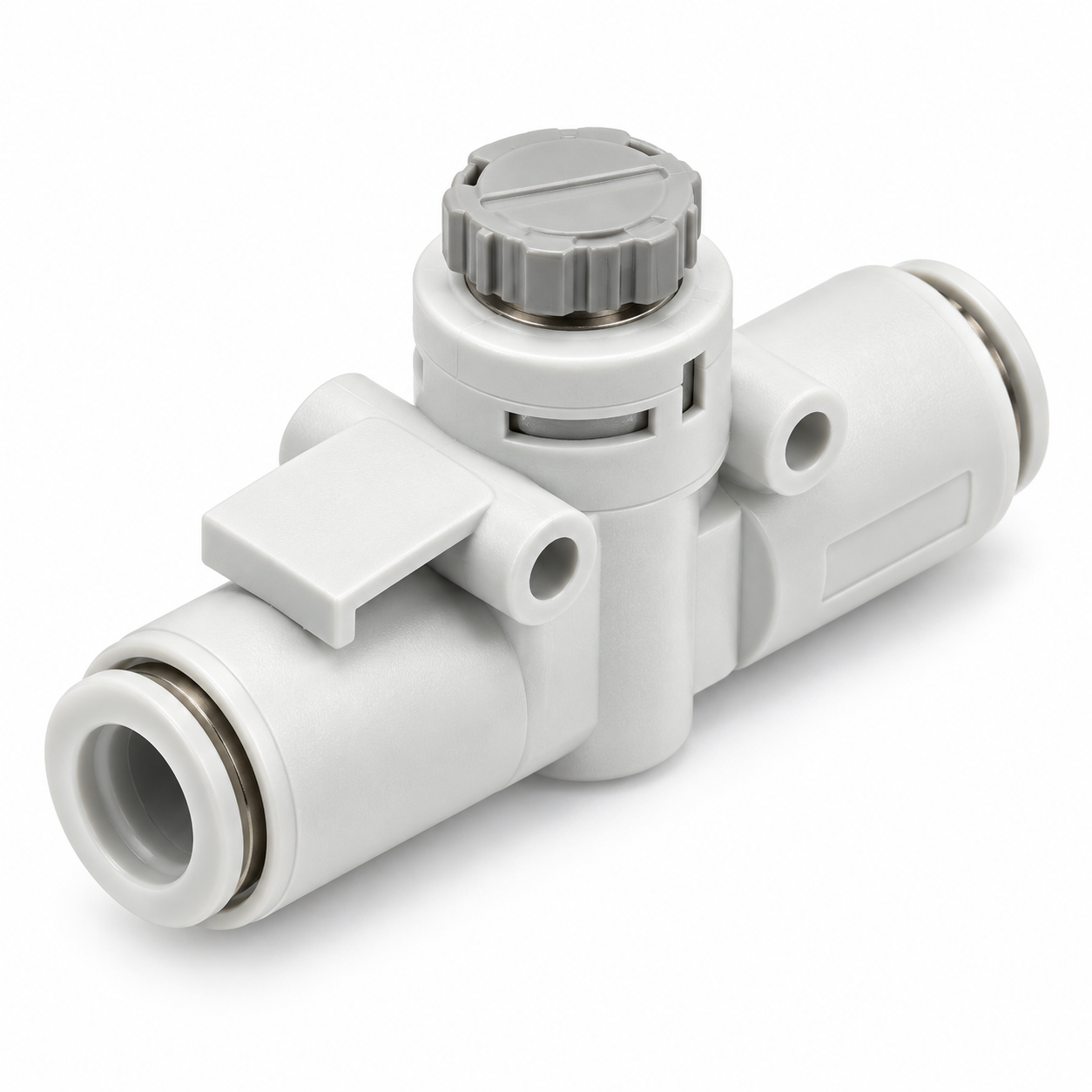

SMC AS1002F-04A — AS series speed controller, in-line type. Meter-out flow control with one-touch fittings at both ends, so it drops into an existing tube run without cutting new ports.
Specification — AS1002F-04A
| Type |
Speed controller, in-line |
| Tube O.D. |
ø4 mm, both ends |
| Control |
Meter-out |
| Surface treatment |
Electroless nickel plated (standard) |
| Product weight |
4 g |
Features
- Push-lock knob — set the speed, push to lock, and the setting holds against vibration
- Knob outside diameter almost doubled, so it turns easily by hand
- Improved flow rate reproducibility, so the same number of turns gives the same speed
- Weight reduced by approximately 27% over the previous model
- Electroless nickel plating is standard, not an option
- Panel mount version now available — no tools needed, which cuts installation time
Typical use
Speed adjustment where the cylinder port is buried or already occupied, or where several cylinders are trimmed from one accessible point. Cut the tube, push both ends in, and adjust.
Ordering
Order by the full code AS1002F-04A. The digits give the body size and tube O.D., and the suffix gives the port and plating type, so one character changes the part. Need another tube size, or the elbow and universal styles in the same range? Send the code and quantity and we will quote it.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
