Description

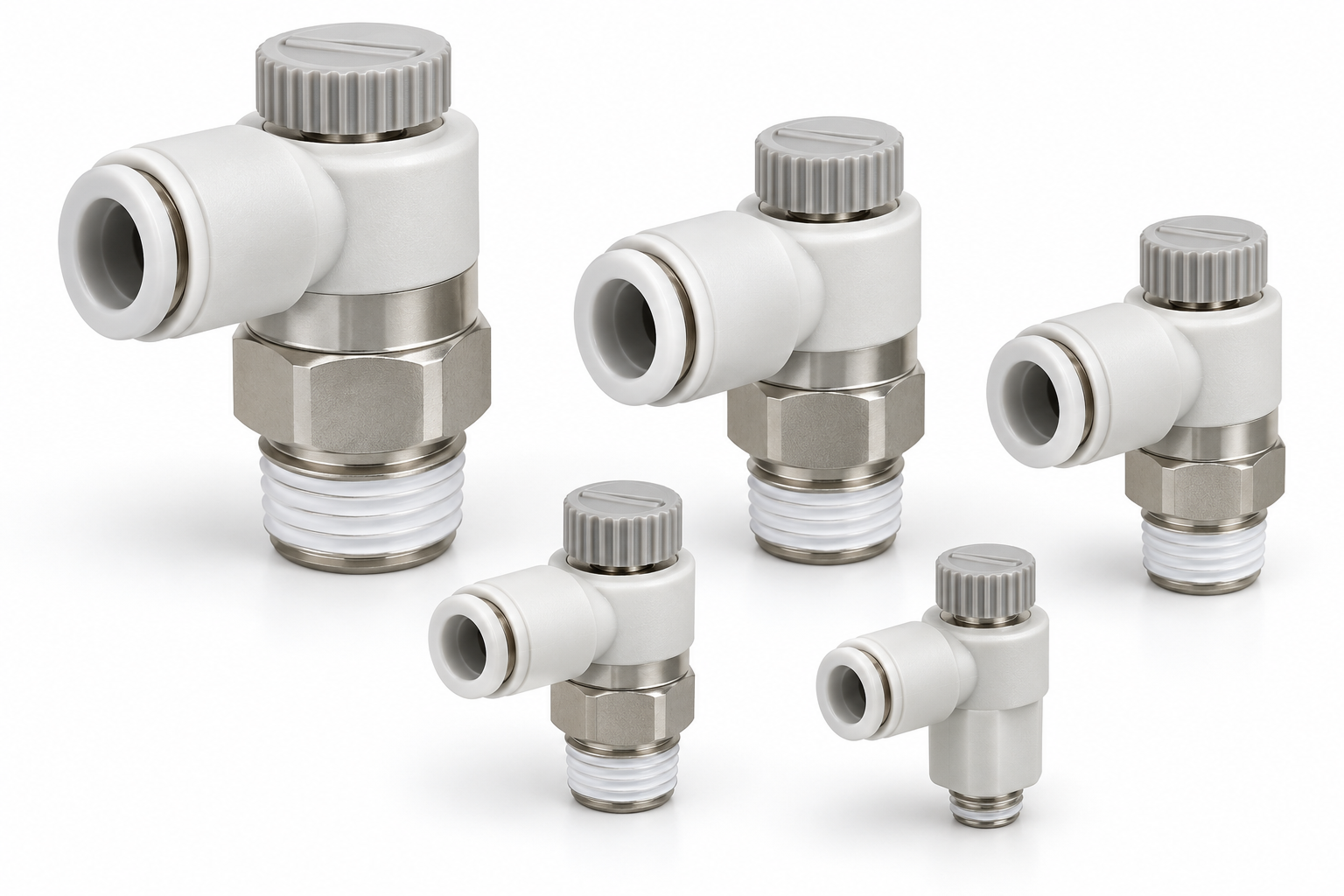

SMC AS1201F-M5-04A — AS series speed controller, elbow type, body size 1. Meter-out flow control with a built-in one-touch fitting, so cylinder speed is set right at the port without extra piping.
Specification — AS1201F-M5-04A
| Type |
Speed controller, elbow, universal |
| Body size |
1 |
| Thread |
M5 x 0.8 |
| Tube O.D. |
ø4 mm |
| Control |
Meter-out |
| Product weight |
5 g |
Features
- Stainless steel type
- Push-lock knob — set the speed, push to lock, and the setting will not drift with vibration
- Larger knob for easier adjustment by hand
- Insertion force reduced by up to 30% (8 N) and removal force by up to 20% (5 N), with tube holding strength unchanged from the previous model
- 360° swivel piping (universal type), so the tube can leave in any direction after fitting
- Restrictor versions available as made-to-order (-X214, -X21)
Typical use
Fitted directly into the port of any air cylinder that needs a controlled extend or retract speed — clamps, stoppers, feeders and pick-and-place heads. The elbow body suits ports facing a frame or panel where a straight fitting would foul.
Ordering
Order by the full code AS1201F-M5-04A. In this series the first digits give the body size, the middle section gives the thread, and the last gives the tube O.D., so one character changes the part. Need another thread or tube size in the AS range? Send the code and quantity and we will quote it.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
