Description

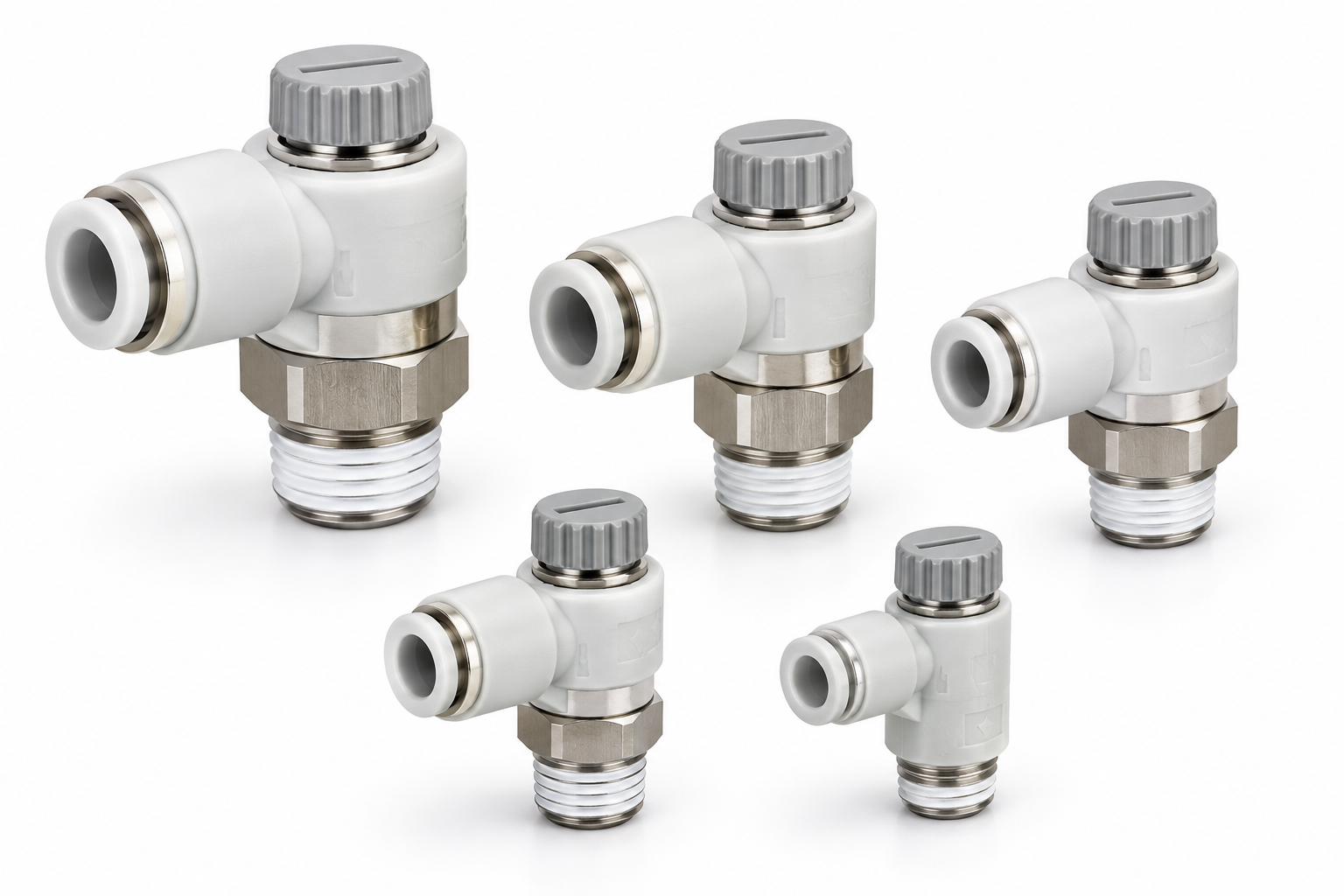

SMC AS1301F-M5-04A — AS series speed controller, body size 1, with a one-touch fitting and a 360° swivel elbow. Meter-out flow control set at the cylinder port, with the tube free to leave in any direction.
Specification — AS1301F-M5-04A
| Type |
Speed controller, universal elbow (360° swivel) |
| Body size |
1 |
| Thread |
M5 x 0.8 |
| Tube O.D. |
ø4 mm |
| Control |
Meter-out |
| Product weight |
6 g |
Features
- Stainless steel type
- Push-lock knob — set the speed, push to lock, and the setting holds against vibration
- Larger knob for easier adjustment by hand
- Insertion force reduced by up to 30% (8 N) and removal force by up to 20% (5 N), with tube holding strength unchanged from the previous model
- 360° swivel piping, so the tube can be routed after the fitting is tightened
- Restrictor versions available as made-to-order (-X214, -X21)
Typical use
Cylinder ports on crowded machines where the tube direction is decided at assembly, not at design. Clamps, stoppers, feeders and pick-and-place heads.
Ordering
Order by the full code AS1301F-M5-04A. The AS12 and AS13 prefixes look similar but give different bodies, and the middle and last sections give the thread and tube O.D., so one character changes the part. Need another thread or tube size in the AS range? Send the code and quantity and we will quote it.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
