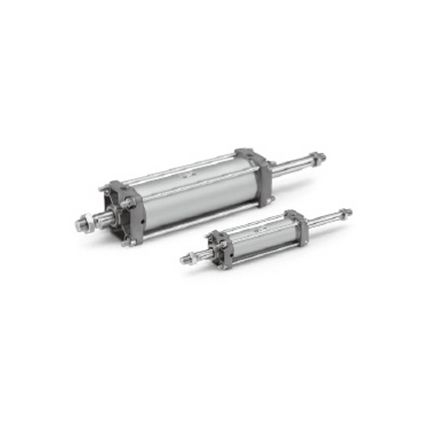

Name: SMC CA2W-Z Series Air Cylinder, Double Acting, Double Rod, CDA2WB63-100Z
Brand: SMC
SKU: CDA2WB63-100Z
Price: 159.78 USD
Availability: InStock

SMC CA2W-Z Series Air Cylinder, Double Acting, Double Rod, CDA2WB63-100Z

VendorSMC

Description

OVERVIEW

Mass reduction by up to 15%
Easy air cushion control
Mountable from small auto switches to magnetic field resistant auto switches
Set the rod end bracket and oscillation bracket attachment part number (reducing the trouble of ordering separately)
Attach auto switch (CDA2) Series: CDA2, CDA2W)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Basic type
tube material	-	aluminum tube
tube inner diameter	63	Bore size 63mm
Types of port screws	-	Rc
cylinder stroke	100	cylinder stroke 100mm
Cylinder additional symbol	-	No bellows, air cushion
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDA2WB63-100Z

Mounting	Basic
Bore	63mm
Port thread	Rc
Stroke	100mm
Auto switch	Without auto switch
Port size	3/8
Fluid	Air
Action	Double acting
Rod end male thread	M18X1.5
Min. operating pressure	0.08 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Weight	2,000 g

Specification values above are for model code CDA2WB63-100Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
