Description

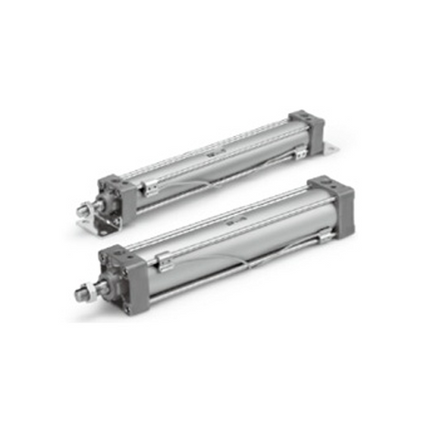

SMC MDBB50-400Z — MB-Z Series Tie-Rod Cylinder. Double Acting, Single Rod. This code specifies 50mm bore, 400mm stroke, double acting, without auto switch.
Specification — MDBB50-400Z
| Mounting |
Basic |
| Bore |
50mm |
| Port thread |
Rc |
| Stroke |
400mm |
| Auto switch |
Without auto switch |
| Port size |
1/4 |
| Fluid |
Air |
| Action |
Double acting |
| Rod end male thread |
M18X1.5 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Weight |
3,000 g |
Specification values above are for model code MDBB50-400Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MB-Z series
- Maximum weight reduced by 10% by changing the shape of the cover
- Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
- Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
