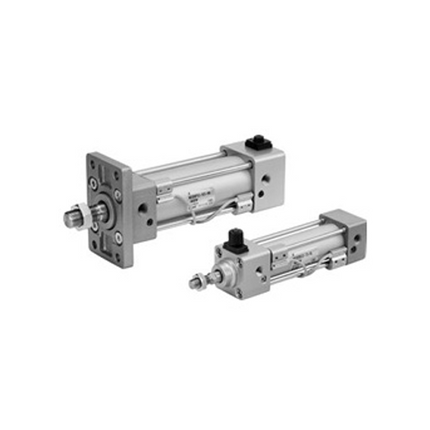

SMC MBB Series Tie-Rod Cylinder. End-Lock Type, MDBBF63-200-HN-Z73

Description

OVERVIEW


  •  Maximum weight reduced by 10% by changing the shape of the cover
  • Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
  • Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)



Specification item model symbol Specification information
With auto switch D With auto switch
installation support F Rod side flange type
tube inner diameter 63 Bore size 63mm
Types of port screws - Rc
cylinder stroke 200 cylinder stroke 200mm
Cylinder additional symbol - no bellows
Lock position H Head side lock
Format of manual release N Non-lock type
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Cylinder additional symbol 2 - no bellows
Lock position 2 - doesn't exist
Manual release format 2 - doesn't exist
auto switch Z73 Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Specification — MDBBF63-200-HN-Z73

Mounting Rod side flange
Bore 63mm
Port thread Rc
Stroke 200mm
Port size 3/8
Fluid Air
Action Double acting
Cushion Air cushion
Rod end male thread M18X1.5
Min. operating pressure 0.15 MPa
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Ambient temp. min -10 ℃
Ambient temp. max 60 ℃
Lubrication Non-lube
Piston speed min 50 mm/s
Weight 3,000 g

Specification values above are for model code MDBBF63-200-HN-Z73 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW  Maximum weight reduced by 10% by changing the shape of the cover Set the rod end bracket and swing... Read more

SKU: MDBBF63-200-HN-Z73

$235.51 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    •  Maximum weight reduced by 10% by changing the shape of the cover
    • Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
    • Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    installation support F Rod side flange type
    tube inner diameter 63 Bore size 63mm
    Types of port screws - Rc
    cylinder stroke 200 cylinder stroke 200mm
    Cylinder additional symbol - no bellows
    Lock position H Head side lock
    Format of manual release N Non-lock type
    dual stroke mark - No dual stroke mark
    cylinder stroke 2 - Cylinder stroke 2 None
    Cylinder additional symbol 2 - no bellows
    Lock position 2 - doesn't exist
    Manual release format 2 - doesn't exist
    auto switch Z73 Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard

    Specification — MDBBF63-200-HN-Z73

    Mounting Rod side flange
    Bore 63mm
    Port thread Rc
    Stroke 200mm
    Port size 3/8
    Fluid Air
    Action Double acting
    Cushion Air cushion
    Rod end male thread M18X1.5
    Min. operating pressure 0.15 MPa
    Max. operating pressure 1.0 MPa
    Proof pressure 1.5 MPa
    Ambient temp. min -10 ℃
    Ambient temp. max 60 ℃
    Lubrication Non-lube
    Piston speed min 50 mm/s
    Weight 3,000 g

    Specification values above are for model code MDBBF63-200-HN-Z73 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
