Description

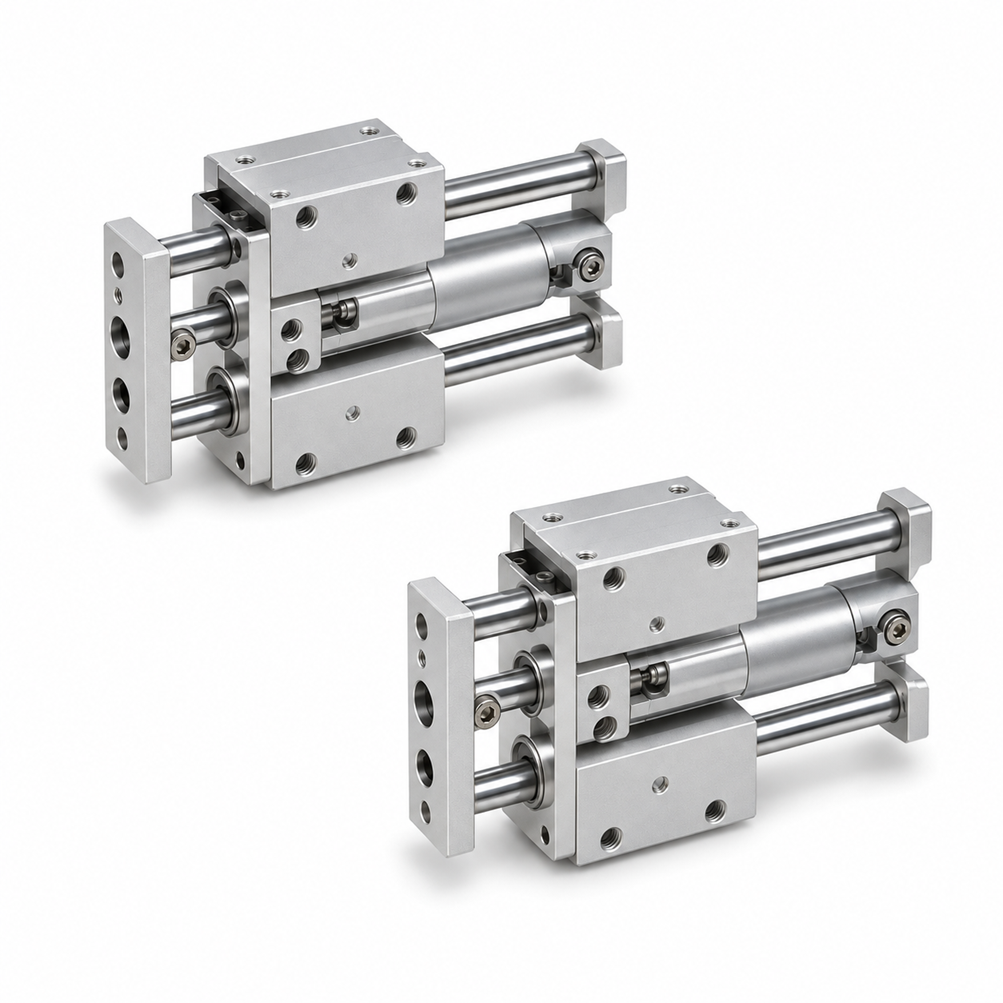

SMC MGCMB25-100-R — genuine SMC pneumatic cylinder from the MGC series.
Specification — MGCMB25-100-R
| Bore |
25mm |
| Port thread |
M5X0.8, Rc |
| Stroke |
100mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Air cushion |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Piston speed max |
750 mm/s |
| Rod diameter |
10 mm |
| Weight |
2,118 g |
This code is built from bore 25mm, port thread M5X0.8, Rc, stroke 100mm, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MGCMB25-100-R.
Supply from Korea
Korean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.
Related codes
Other variants we carry in this series: MGCMB25-250-R, MGCMB25-200-R. Send the code and quantity and we will confirm price and lead time.
