Description

Switching voltage	≤ 24VDC
Contact type	Normally Closed
Operation distance_OFF→ON	± 10 mm
Operation distance_ON→OFF	± 20 mm
Standard sensing target	Steel plate - a galvanized steel sheet 1.6t
Operating frequency	≤ 500 Hz
Material	Cover/Case: PC (915R)
Protection structure	IP67(IEC standard)
Environment_Ambient temperature	-10 to 65 ℃, storage: -10 to 70 ℃ (no freezing or condensation)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation resistance	≥ 1,000 MΩ (500 VDC megger)
Dielectric strength	500VAC~ 50/60Hz for 1 min.
Vibration	1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours
Shock	100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
Applied REED SWITCH	Model : ORD324-10-15 (STANDEX MEDER)
Weight	≈ 107 g (≈ 147.2 g)

Product form

Switching voltage ≤ 24VDC Contact type Normally Closed Operation distance_OFF→ON ± 10 mm Operation distance_ON→OFF ± 20 mm Standard sensing... Read more

SKU: MU-1B-30-E

$22.81 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Switching voltage	≤ 24VDC
Contact type	Normally Closed
Operation distance_OFF→ON	± 10 mm
Operation distance_ON→OFF	± 20 mm
Standard sensing target	Steel plate - a galvanized steel sheet 1.6t
Operating frequency	≤ 500 Hz
Material	Cover/Case: PC (915R)
Protection structure	IP67(IEC standard)
Environment_Ambient temperature	-10 to 65 ℃, storage: -10 to 70 ℃ (no freezing or condensation)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation resistance	≥ 1,000 MΩ (500 VDC megger)
Dielectric strength	500VAC~ 50/60Hz for 1 min.
Vibration	1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours
Shock	100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
Applied REED SWITCH	Model : ORD324-10-15 (STANDEX MEDER)
Weight	≈ 107 g (≈ 147.2 g)

Reviews

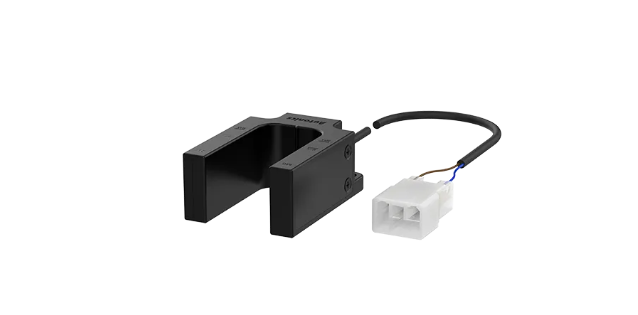

Name: Autonics Proximity Sensor Proximity Sensor MU-1B-30-E
