Description

Wire type and power	AC 2-wire type 100-240VAC~
Sensing side size	Frame size 25mm
Sensing distance	8mm
Standard sensing target	25×25×1mm(iron)
Response frequency	20Hz
Current specification	Leakage current: Max. 2.5mA
Control output	Normally Closed
Sensing type	Upper sensing type
Material	Poly Phenylene Sulfide
Protection structure	IP67(IEC standard)
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual voltage	Max. 10V
Weight	Approx. 70g

Product form

Wire type and power AC 2-wire type100-240VAC~ Sensing side size Frame size 25mm Sensing distance 8mm Standard sensing target 25×25×1mm(iron)... Read more

SKU: PFI25-8AC

$21.87 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

Wire type and power	AC 2-wire type 100-240VAC~
Sensing side size	Frame size 25mm
Sensing distance	8mm
Standard sensing target	25×25×1mm(iron)
Response frequency	20Hz
Current specification	Leakage current: Max. 2.5mA
Control output	Normally Closed
Sensing type	Upper sensing type
Material	Poly Phenylene Sulfide
Protection structure	IP67(IEC standard)
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual voltage	Max. 10V
Weight	Approx. 70g

Reviews

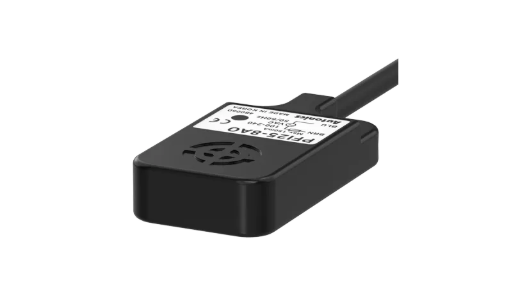

Name: Autonics Proximity Sensor Square Type Proximity Sensor AC 2-Wire PFI25-8AC
Brand: Autonics
SKU: PFI25-8AC
Price: 21.87 USD
Availability: InStock

Autonics Proximity Sensor Square Type Proximity Sensor AC 2-Wire PFI25-8AC
