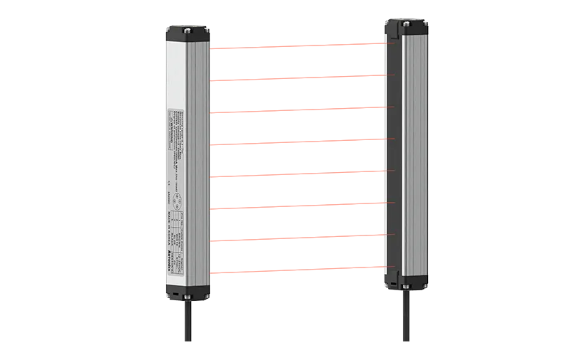

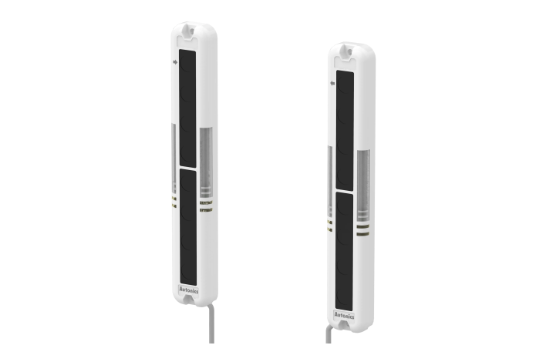

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 5m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 20 Sensing height/Total length 380/430mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø3.5, 3m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø30mm Response time Max. 6ms(frequency B selection is max. 7ms) Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) Weight Approx. 680g(approx. 430g)

Read more less

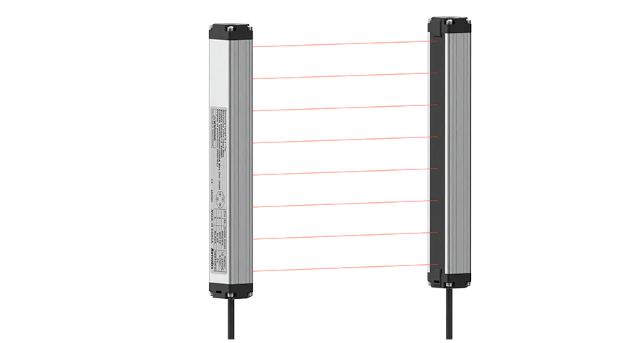

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 8 Sensing height/Total length 280/320mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 18 Sensing height/Total length 680/720mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)

Read more less

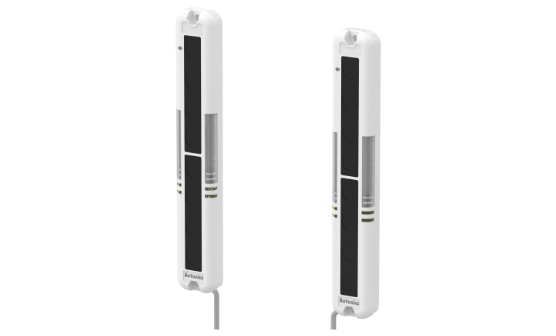

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 20 Sensing height/Total length 760/800mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)

Read more less

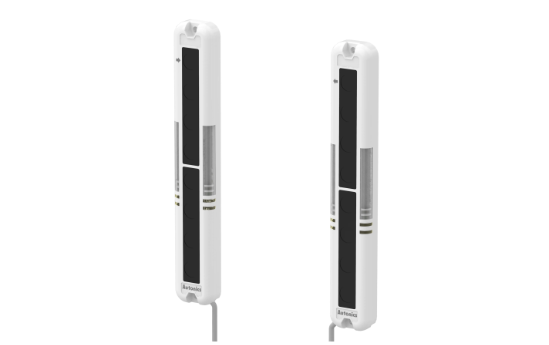

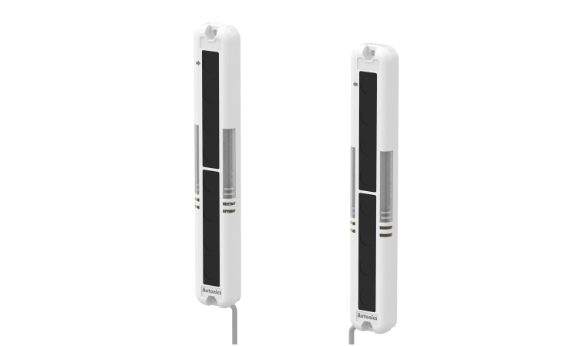

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 5m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 12 Sensing height/Total length 220/270mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø3.5, 3m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø30mm Response time Max. 6ms(frequency B selection is max. 7ms) Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) Weight Approx. 520g(approx. 320g)

Read more less

Sensing type Through-beam type(cross beam) Sensing distance 1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 4 Sensing height 120mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type(Ø5, 300mm, M12) Protection structure IP67(IEC standard) Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø50mm Response time Max. 50ms Material Case: Aluminum, Sensing part and indicator: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 5m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 8 Sensing height/Total length 140/190mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output PNP open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø3.5, 3m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø30mm Response time Max. 6ms(frequency B selection is max. 7ms) Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) Weight Approx. 480g(approx. 280g)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 5m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 12 Sensing height/Total length 220/270mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø3.5, 3m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø30mm Response time Max. 6ms(frequency B selection is max. 7ms) Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) Weight Approx. 520g(approx. 320g)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 4 Sensing height/Total length 120/160mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 6 Sensing height/Total length 200/240mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)

Read more less

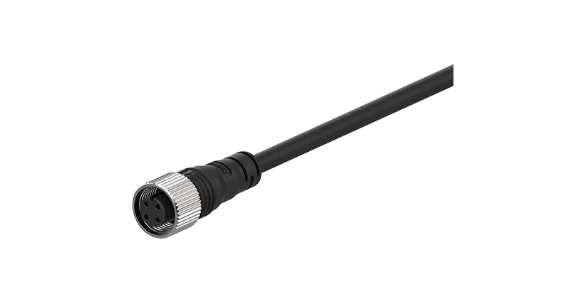

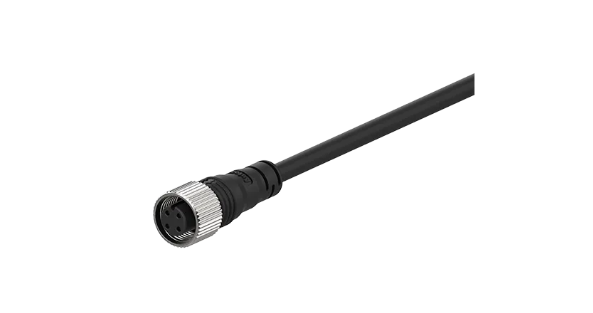

Power voltage DC voltage Connector 1 M12 (Socket-Female) Connector 2 4-wire Cable material PVC Cable length 7m Type Emitter

Read more less

Power voltage DC voltage Connector 1 M12 (Socket-Female) Connector 2 4-wire Cable material PVC Cable length 7m Type Receiver

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 12 Sensing height/Total length 440/480mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 8 Sensing height/Total length 140/160mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

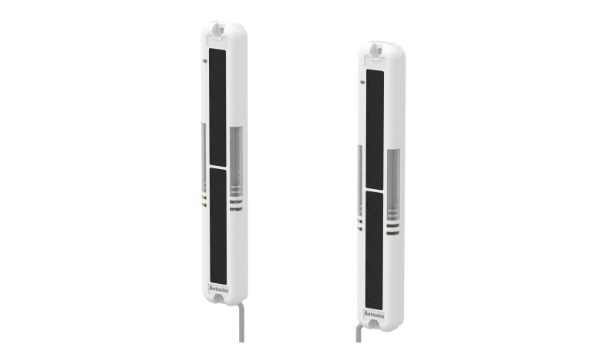

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 16 Sensing height/Total length 300/320mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 5m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 16 Sensing height/Total length 300/350mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø3.5, 3m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø30mm Response time Max. 6ms(frequency B selection is max. 7ms) Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) Weight Approx. 620g(approx. 360g)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 24 Sensing height/Total length 920/960mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 5m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 20 Sensing height/Total length 380/430mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø3.5, 3m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø30mm Response time Max. 6ms(frequency B selection is max. 7ms) Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) Weight Approx. 680g(approx. 430g)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 10 Sensing height/Total length 360/400mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)

Read more less

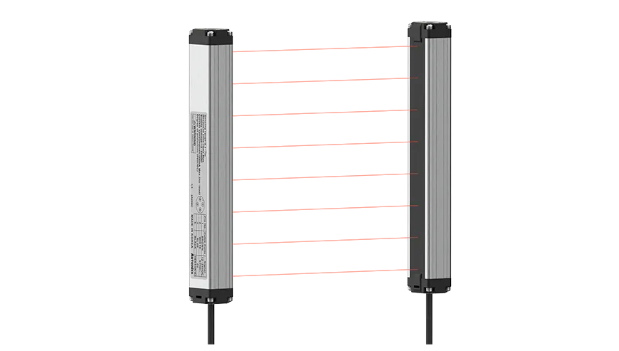

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 24 Sensing height/Total length 460/480mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø30mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW20-48: Approx. 2.1kg(approx. 1.4kg)

Read more less

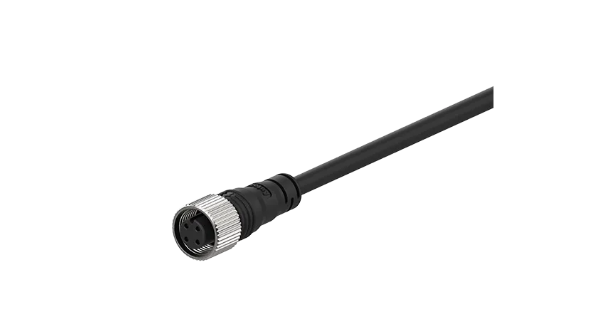

Power voltage DC voltage Connector 1 M12 (Socket-Female) Connector 2 4-wire Cable material PVC Cable length 10m Type Emitter

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 7m Light source Infrared LED(850nm modulated) Optical axis pitch 40mm Number of optical axes 14 Sensing height/Total length 520/560mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON Environment_Ambient illumination Ambient light: Max. 100,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable connector type Protection structure IP65(IEC standard) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Min. sensing target Opaque material of min. Ø50mm Response time Max. 10ms Material • Case: Aluminum• Front cover, sensing part: Acrylic Cable specification Ø5mm, 4-wire, 300mm, M12 connector Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8 Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)

Read more less

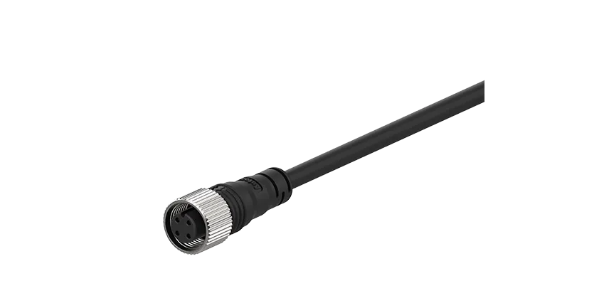

Power voltage DC voltage Connector 1 M12 (Socket-Female) Connector 2 4-wire Cable material PVC Cable length 3m Type Receiver

Read more less

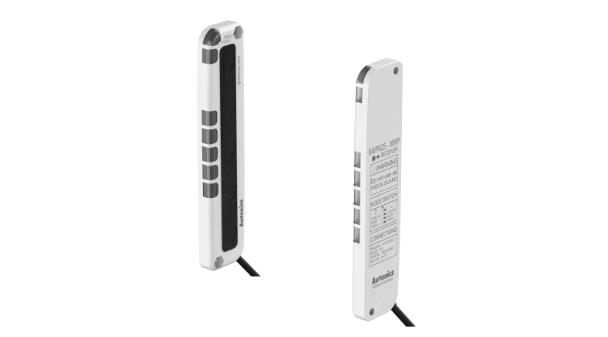

Sensing type Through-beam type(direct beam) Sensing distance Long distance mode: 0.1 to 3mShort distance mode: 0.05 to 1m Light source Infrared LED(850nm modulated) Optical axis pitch 25mm Number of optical axes 5 Sensing height 100mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø4, 2m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque materials of min. Ø35mm Response time Max. 30ms Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø4.0mm, 4-wire, 2m(emitter: Ø4.0mm, 3-wire, 2m)(AWG 22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm) Weight Approx. 220g(approx. 180g)

Read more less

Sensing type Through-beam type(direct beam) Sensing distance 0.1 to 5m Light source Infrared LED(850nm modulated) Optical axis pitch 20mm Number of optical axes 8 Sensing height/Total length 140/190mm Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%) Control output NPN open collector Operation mode Light ON/Dark ON(set by switch) Environment_Ambient illumination Sunlight: Max. 10,000lx(receiver illumination) Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃ Connection type Cable type(Ø3.5, 3m) Protection structure IP40 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Min. sensing target Opaque material of min. Ø30mm Response time Max. 6ms(frequency B selection is max. 7ms) Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) Weight Approx. 480g(approx. 280g)

Read more less

Power voltage DC voltage Connector 1 M12 (Socket-Female) Connector 2 4-wire Cable material PVC Cable length 5m Type Receiver

Read more less

Power voltage DC voltage Connector 1 M12 (Socket-Female) Connector 2 4-wire Cable material PVC Cable length 5m Type Emitter

Read more less

Power voltage DC voltage Connector 1 M12 (Socket-Female) Connector 2 4-wire Cable material PVC Cable length 10m Type Receiver

Read more less

Power voltage DC voltage Connector 1 M12 (Socket-Female) Connector 2 4-wire Cable material PVC Cable length 3m Type Emitter

Read more less

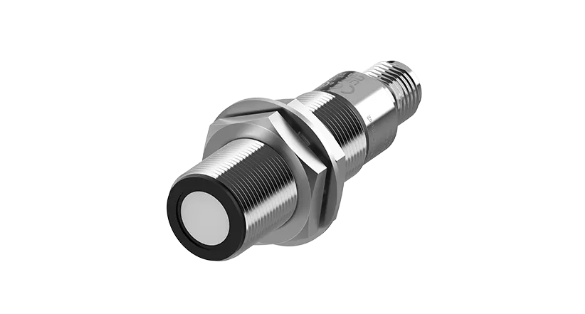

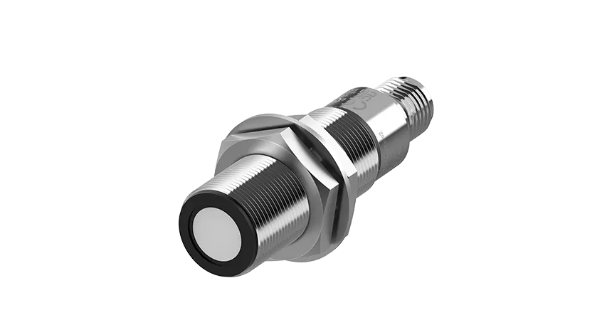

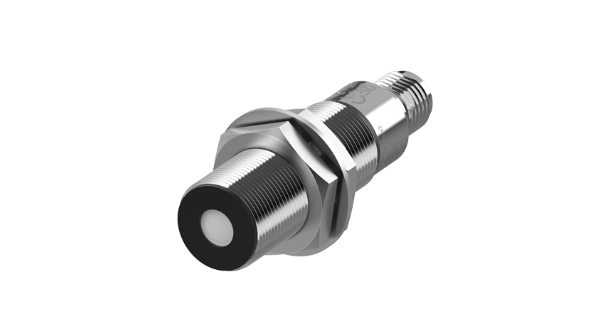

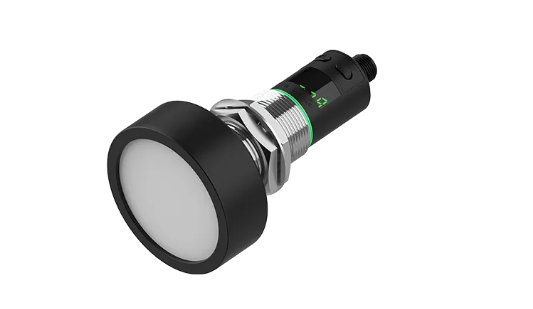

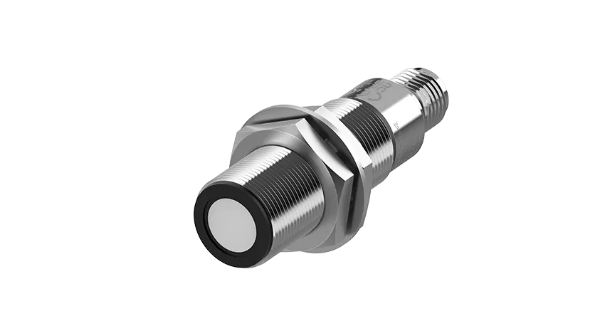

Sensing distance 120 to 1300 mm Blind zone 0 to 115 mm Foreground suppression 120 to 360 mm Max. setting zone 1300 mm Transducer frequency 200kHz Switching frequency ≥ 10 Hz Response time ≤ 100 ms Hysteresis 20mm Standard sensing target 200 × 200 mm Resolution ≥ 0.175 mm Power voltage 12 - 30 VDC (ripple P-P: ≤ 10 %) Current consumption ≤ 45 mA (no load) Digital output Push-pull Analog output [current output] DC 4 -20 mA Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) Protection structure IP66, IP67 (IEC standard), IP69K (DIN standard) Connection Connector models Connector type M12 5-pin plug connector Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass Unit weight (packaged weight) ≈ 32 g (≈ 90 g)

Read more less

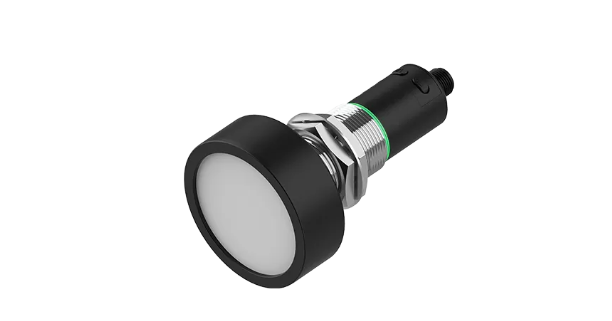

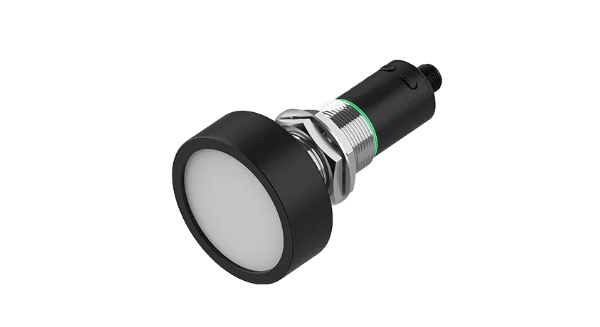

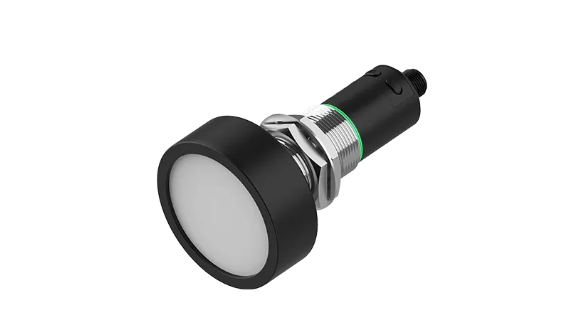

Sensing distance 600 to 8000 mm Blind zone 0 to 590 mm Foreground suppression 600 to 1800 mm Max. setting zone 8000 mm Transducer frequency 80 kHz Switching frequency ≥ 3 Hz Response time ≤ 300 ms Hysteresis 100mm Standard sensing target 500 × 500 mm Resolution ≥ 0.180 mm Power voltage 12 - 30 VDC (ripple P-P: ≤ 10 %) Current consumption ≤ 80 mA (no load) Digital output Push-pull Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) Protection structure IP66, IP67 (IEC standard) Connection Connector models Connector type M12 5-pin plug connector Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass Unit weight (packaged weight) ≈210g(≈330g)

Read more less

Sensing distance 600 to 8000 mm Blind zone 0 to 590 mm Foreground suppression 600 to 1800 mm Max. setting zone 8000 mm Transducer frequency 80 kHz Switching frequency ≥ 3 Hz Response time ≤ 300 ms Hysteresis 100mm Standard sensing target 500 × 500 mm Resolution ≥ 0.180 mm Power voltage 12 - 30 VDC (ripple P-P: ≤ 10 %) Current consumption ≤ 80 mA (no load) Digital output Push-pull Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) Protection structure IP66, IP67 (IEC standard) Connection Connector models Connector type M12 5-pin plug connector Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass Unit weight (packaged weight) ≈210g(≈330g)

Read more less

Sensing distance 600 to 8000 mm Blind zone 0 to 590 mm Foreground suppression 600 to 1800 mm Max. setting zone 8000 mm Transducer frequency 80 kHz Switching frequency ≥ 3 Hz Response time ≤ 300 ms Hysteresis 100mm Standard sensing target 500 × 500 mm Resolution ≥ 0.180 mm Power voltage 12 - 30 VDC (ripple P-P: ≤ 10 %) Current consumption ≤ 80 mA (no load) Digital output Push-pull Analog output [voltage output] DC 0 - 10 V, [current output] DC 4 - 20 mA Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) Protection structure IP66, IP67 (IEC standard) Connection Connector models Connector type M12 5-pin plug connector Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass Unit weight (packaged weight) ≈210g(≈330g)

Read more less

Sensing distance 600 to 8000 mm Blind zone 0 to 590 mm Foreground suppression 600 to 1800 mm Max. setting zone 8000 mm Transducer frequency 80 kHz Switching frequency ≥ 3 Hz Response time ≤ 300 ms Hysteresis 100mm Standard sensing target 500 × 500 mm Resolution ≥ 0.180 mm Power voltage 12 - 30 VDC (ripple P-P: ≤ 10 %) Current consumption ≤ 80 mA (no load) Digital output Push-pull Analog output [voltage output] DC 0 - 10 V, [current output] DC 4 - 20 mA Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) Protection structure IP66, IP67 (IEC standard) Connection Connector models Connector type M12 5-pin plug connector Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass Unit weight (packaged weight) ≈210g(≈330g)

Read more less

Sensing distance 120 to 1300 mm Blind zone 0 to 115 mm Foreground suppression 120 to 360 mm Max. setting zone 1300 mm Transducer frequency 200kHz Switching frequency ≥ 10 Hz Response time ≤ 100 ms Hysteresis 20mm Standard sensing target 200 × 200 mm Resolution ≥ 0.175 mm Power voltage 12 - 30 VDC (ripple P-P: ≤ 10 %) Current consumption ≤ 45 mA (no load) Digital output Push-pull Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) Protection structure IP66, IP67 (IEC standard), IP69K (DIN standard) Connection Connector models Connector type M12 5-pin plug connector Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass Unit weight (packaged weight) ≈ 32 g (≈ 90 g)

Read more less

Sensing distance 600 to 8000 mm Blind zone 0 to 590 mm Foreground suppression 600 to 1800 mm Max. setting zone 8000 mm Transducer frequency 80 kHz Switching frequency ≥ 3 Hz Response time ≤ 300 ms Hysteresis 100mm Standard sensing target 500 × 500 mm Resolution ≥ 0.180 mm Power voltage 12 - 30 VDC (ripple P-P: ≤ 10 %) Current consumption ≤ 80 mA (no load) Digital output Push-pull Analog output [voltage output] DC 0 - 10 V, [current output] DC 4 - 20 mA Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) Protection structure IP66, IP67 (IEC standard) Connection Connector models Connector type M12 5-pin plug connector Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass Unit weight (packaged weight) ≈210g(≈330g)

Read more less

Sensing distance 120 to 1300 mm Blind zone 0 to 115 mm Foreground suppression 120 to 360 mm Max. setting zone 1300 mm Transducer frequency 200kHz Switching frequency ≥ 10 Hz Response time ≤ 100 ms Hysteresis 20mm Standard sensing target 200 × 200 mm Resolution ≥ 0.175 mm Power voltage 12 - 30 VDC (ripple P-P: ≤ 10 %) Current consumption ≤ 45 mA (no load) Digital output Push-pull Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) Protection structure IP66, IP67 (IEC standard), IP69K (DIN standard) Connection Connector models Connector type M12 5-pin plug connector Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass Unit weight (packaged weight) ≈ 32 g (≈ 90 g)

Read more less

Sensing distance 65 to 600 mm Blind zone 0 to 59 mm Foreground suppression 65 to 195 mm Max. setting zone 600mm Transducer frequency 305 kHz Switching frequency ≥ 12.5 Hz Response time ≤ 64 ms Hysteresis 5mm Standard sensing target 200 × 200 mm Resolution ≥ 0.069 mm Power voltage 12 - 30 VDC (ripple P-P: ≤ 10 %) Current consumption ≤ 40 mA (no load) Digital output Push-pull Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) Protection structure IP66, IP67 (IEC standard), IP69K (DIN standard), IP68 Connection Connector models Connector type M12 5-pin plug connector Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass Unit weight (packaged weight) ≈ 30 g (≈ 85 g )

Read more less

Sensing distance 120 to 1300 mm Blind zone 0 to 115 mm Foreground suppression 120 to 360 mm Max. setting zone 1300 mm Transducer frequency 200kHz Switching frequency ≥ 10 Hz Response time ≤ 100 ms Hysteresis 20mm Standard sensing target 200 × 200 mm Resolution ≥ 0.175 mm Power voltage 12 - 30 VDC (ripple P-P: ≤ 10 %) Current consumption ≤ 45 mA (no load) Digital output Push-pull Analog output [current output] DC 4 -20 mA Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection Insulation resistance ≥ 50 MΩ (500 VDC megger) Dielectric strength Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min Vibration 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times Ambient temperature -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) Protection structure IP66, IP67 (IEC standard), IP69K (DIN standard) Connection Connector models Connector type M12 5-pin plug connector Material Case: mount - SUS316L, body - PC, transducer: polyurethane foam, epoxy resin with glass Unit weight (packaged weight) ≈ 32 g (≈ 90 g)

Read more less

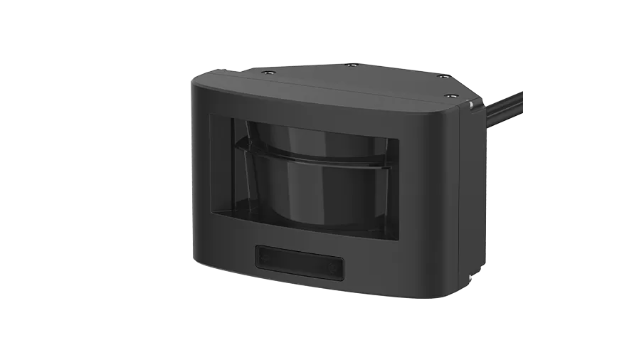

LSE3-4A5R2-ET Laser for detection emitting property : Infrared laser: 1 Emitting property_Laser class : CLASS 1 Emitting property_Wavelength band : 905nm Monitoring zone : 0.3×0.3 ~ 5.6×5.6 m Power voltage : 10 ~ 35 VDC  Laser for detection emitting property Infrared laser: 1 Emitting property_Laser class CLASS 1 Emitting property_Wavelength band 905nm Emitting property_Max. pulse output power 80W Laser for installation emitting property Visible light laser: 3 Emitting property_Laser class CLASS 3R Emitting property_Wavelength band 650 nm Emitting property_Max. pulse output power 4 mW Min. size of the scanning target Detection distance of 3m : 2.1×2.1×2.1 cm, Detection distance of 5m : 3.5×3.5×3.5 cm Scanning frequency 15 Hz Response time ≤ 20 to 80ms + monitoring time Monitoring zone 0.3×0.3 ~ 5.6×5.6 m Angular resolution 0.4° Aperture angle 90° Object reflectivity Min. 2% Korean Railway Standards KRS SG 0068 Weight ≈ 0.9 kg (≈ 1.1 kg) Power voltage 10 ~ 35 VDC  Power consumption ＜ 10 W Input Photocoupler input: 1H: ≥ 8 - 30 VDC, L: ≤ 3 VDC Output PhotoMOS relay output: 2Resistive load: 35 VDC/ 24 VAC~, ≤ 80 mA Vibration Max. 2G (18.7m/s²) Shock 30G/18ms Environment_Ambient illumination ≤ 100,000 lx Environment_Ambient temperature -30 to 60 ℃, storage: -30 ~ 70 ℃ (no freezing or condensation) Environment_Ambient humidity 0 to 95 %RH, storage: 0 to 95 %RH (no freezing or condensation) Protection structure IP67(IEC standard) Cable_Power, I/O Ø 5 mm, 8-wire, 5 m Cable_Ethernet 5 mm, 4-wire, 3 m, shield cable, RJ45 connector Core AWG26 (0.16 mm, 7-core), insulator outer diameter: Ø 1 mm Material Case: AL, Window: PC Communication interface Ethernet Sold separately Main bracket: BK-LSE3, Sub bracket: BK-LSE2-SUB Component_PC program atLidar (laser scanner program)

Read more less

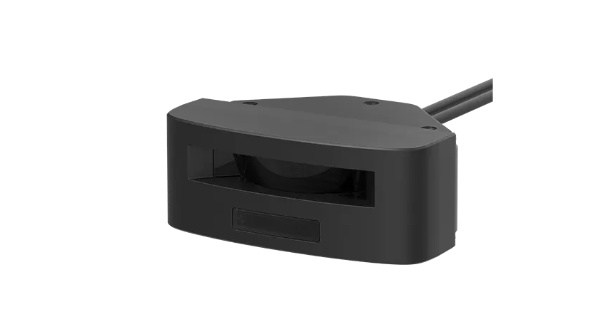

LSE2-A5R2-ET Laser for detection emitting property : Infrared laser: 1 Emitting property_Laser class : CLASS 1 Emitting property_Wavelength band : 905nm Emitting property_Max. pulse output power : 27W Power voltage : 24VDC

Read more less

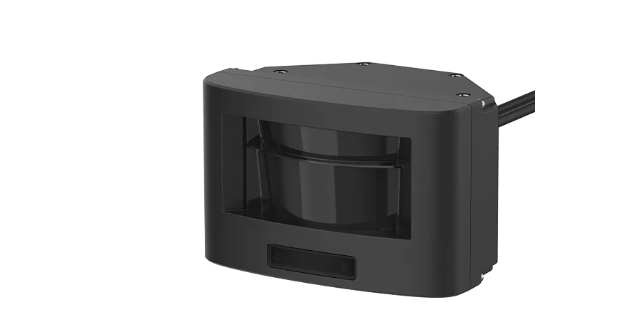

LSE3-4A10R2-ET Laser for detection emitting property : Infrared laser: 1 Emitting property_Laser class : CLASS 1 Emitting property_Wavelength band : 905nm Monitoring zone : 0.3×0.3 ~ 10×10 m Power voltage : 10 ~ 35 VDC  Laser for detection emitting property Infrared laser: 1 Emitting property_Laser class CLASS 1 Emitting property_Wavelength band 905nm Emitting property_Max. pulse output power 80W Laser for installation emitting property Visible light laser: 3 Emitting property_Laser class CLASS 3R Emitting property_Wavelength band 650 nm Emitting property_Max. pulse output power 4 mW Min. size of the scanning target Detection distance of 3m : 2.1×2.1×2.1 cm, Detection distance of 5m : 3.5×3.5×3.5 cm, Detection distance of 10m : 7.0×7.0×7.0 cm Scanning frequency 15 Hz Response time ≤ 20 to 80ms + monitoring time Monitoring zone 0.3×0.3 ~ 10×10 m Angular resolution 0.4° Aperture angle 90° Object reflectivity Min. 2% Korean Railway Standards KRS SG 0068 Weight ≈ 0.9 kg (≈ 1.1 kg) Power voltage 10 ~ 35 VDC  Power consumption ＜ 10 W Input Photocoupler input: 1H: ≥ 8 - 30 VDC, L: ≤ 3 VDC Output PhotoMOS relay output: 2Resistive load: 35 VDC/ 24 VAC~, ≤ 80 mA Vibration Max. 2G (18.7m/s²) Shock 30G/18ms Environment_Ambient illumination ≤ 100,000 lx Environment_Ambient temperature -30 to 60 ℃, storage: -30 ~ 70 ℃ (no freezing or condensation) Environment_Ambient humidity 0 to 95 %RH, storage: 0 to 95 %RH (no freezing or condensation) Protection structure IP67(IEC standard) Cable_Power, I/O Ø 5 mm, 8-wire, 5 m Cable_Ethernet 5 mm, 4-wire, 3 m, shield cable, RJ45 connector Core AWG26 (0.16 mm, 7-core), insulator outer diameter: Ø 1 mm Material Case: AL, Window: PC Communication interface Ethernet Sold separately Main bracket: BK-LSE3, Sub bracket: BK-LSE2-SUB Component_PC program atLidar (laser scanner program)

Read more less

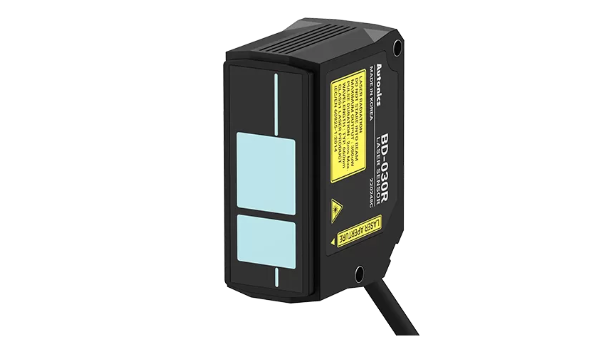

BD-030R Spot diameter : Near: ≈ 100×100 ㎛Reference: ≈ 100×100 ㎛Far: ≈ 100×100 ㎛ Resolution : 1㎛ Reference distance : 27.3 mm Max. measurement range : 24.9 to 29.7 mm Linearity : ± 0.1% of F.S. Spot diameter Near: ≈ 100×100 ㎛Reference: ≈ 100×100 ㎛Far: ≈ 100×100 ㎛ Resolution 1㎛ Reference distance 27.3 mm Max. measurement range 24.9 to 29.7 mm Linearity ± 0.1% of F.S. Temperature Characteristics ± 0.05% of F.S./℃ Power voltage Using power from the amplifier unit. Light source Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) Light Source_Optical method Regular reflection Light Source_Laser class Class 1 (IEC/EN), Class I (FDA(CDRH) CFR Part 1002) Laser Pulse duration Max. 2ms Light Source_Output Max. 300㎼ Operation indicator Power indicator: red LED, Laser emission indicator: green LED,NEAR/FAR indicator: green LED Insulation resistance ≥ 20 MΩ (500 VDC megger) Noise immunity Square shaped noise by noise simulator (pulse width: 1㎲) ±500V Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Max. Incandescent lamp 10,000 lx Environment_Ambient temperature -10 to 50 ℃, Storage: -15 to 60 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Protection structure IP67 (IEC Standards, except connector of extension cable) Material Case: Polycarbonate, Sensing part: Glass, Cable: Polyvinyl chloride Amplifier unit compatibility BD Series amplifier unit: 1 Weight ≈ 55 g (≈ 205 g)

Read more less

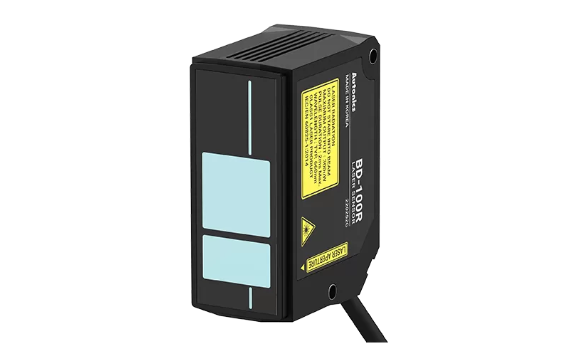

BD-100R Spot diameter : Near: ≈ 200×200 ㎛Reference: ≈ 220×220 ㎛Far: ≈ 240×240 ㎛ Resolution : 4㎛ Reference distance : 98.3 mm Max. measurement range : 86.3 to 110.3 mm Linearity : ± 0.15% of F.S. Spot diameter Near: ≈ 200×200 ㎛Reference: ≈ 220×220 ㎛Far: ≈ 240×240 ㎛ Resolution 4㎛ Reference distance 98.3 mm Max. measurement range 86.3 to 110.3 mm Linearity ± 0.15% of F.S. Temperature Characteristics ± 0.06% of F.S./℃ Power voltage Using power from the amplifier unit. Light source Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) Light Source_Optical method Regular reflection Light Source_Laser class Class 1 (IEC/EN), Class I (FDA(CDRH) CFR Part 1002) Laser Pulse duration Max. 2ms Light Source_Output Max. 300㎼ Operation indicator Power indicator: red LED, Laser emission indicator: green LED,NEAR/FAR indicator: green LED Insulation resistance ≥ 20 MΩ (500 VDC megger) Noise immunity Square shaped noise by noise simulator (pulse width: 1㎲) ±500V Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Max. Incandescent lamp 10,000 lx Environment_Ambient temperature -10 to 50 ℃, Storage: -15 to 60 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Protection structure IP67 (IEC Standards, except connector of extension cable) Material Case: Polycarbonate, Sensing part: Glass, Cable: Polyvinyl chloride Amplifier unit compatibility BD Series amplifier unit: 1 Weight ≈ 66 g (≈ 228 g)

Read more less

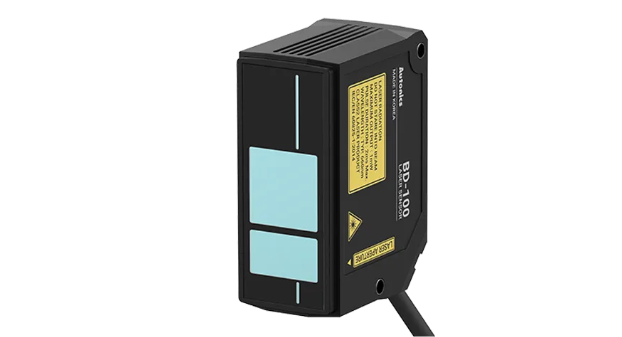

BD-100 Spot diameter : Near(80mm): Approx. 480×1870 ㎛Reference(100mm): Approx. 410×1330 ㎛Far(120mm): Approx. 330×950 ㎛ Resolution : 4㎛ Reference distance : 100mm Max. measurement range : 70 to 130mm Linearity : 0.15% F.S. (in 80 to 120mm) Spot diameter Near(80mm): Approx. 480×1870 ㎛Reference(100mm): Approx. 410×1330 ㎛Far(120mm): Approx. 330×950 ㎛ Resolution 4㎛ Reference distance 100mm Max. measurement range 70 to 130mm Linearity 0.15% F.S. (in 80 to 120mm) Temperature Characteristics 0.06% F.S./℃ Power voltage Using power from the amplifier unit. Light source Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) Light Source_Optical method Diffuse reflection Light Source_Laser class Class 2 (IEC/EN), Class II (FDA(CDRH) CFR Part 1002) Laser Pulse duration Max. 2ms Light Source_Output Max. 1㎽ Operation indicator Power indicator: red LED, Laser emission indicator: green LED,NEAR/FAR indicator: green LED Insulation resistance ≥ 20 MΩ (500 VDC megger) Noise immunity Square shaped noise by noise simulator (pulse width: 1㎲) ±500V Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Max. Incandescent lamp 10,000 lx Environment_Ambient temperature -10 to 50 ℃, Storage: -15 to 60 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Protection structure IP67 (IEC Standards, except connector of extension cable) Material Case: Polycarbonate, Sensing part: Glass, Cable: Polyvinyl chloride Amplifier unit compatibility BD Series amplifier unit: 1 Weight ≈ 68 g (≈ 233 g)

Read more less

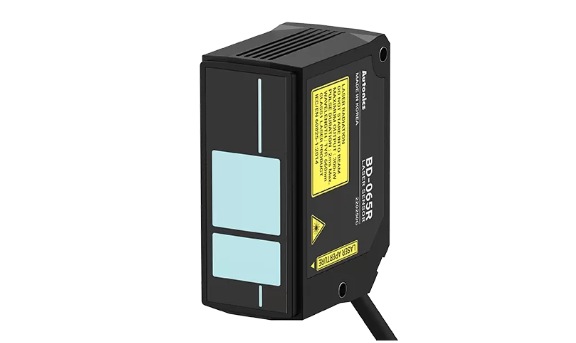

BD-065R Spot diameter : Near: ≈ 150×150 ㎛Reference: ≈ 150×150 ㎛Far: ≈ 150×150 ㎛ Resolution : 2㎛ Reference distance : 62.9 mm Max. measurement range : 56.9 to 68.9 mm Linearity : ± 0.1% of F.S. Spot diameter Near: ≈ 150×150 ㎛Reference: ≈ 150×150 ㎛Far: ≈ 150×150 ㎛ Resolution 2㎛ Reference distance 62.9 mm Max. measurement range 56.9 to 68.9 mm Linearity ± 0.1% of F.S. Temperature Characteristics ± 0.05% of F.S./℃ Power voltage Using power from the amplifier unit. Light source Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) Light Source_Optical method Regular reflection Light Source_Laser class Class 1 (IEC/EN), Class I (FDA(CDRH) CFR Part 1002) Laser Pulse duration Max. 2ms Light Source_Output Max. 300㎼ Operation indicator Power indicator: red LED, Laser emission indicator: green LED,NEAR/FAR indicator: green LED Insulation resistance ≥ 20 MΩ (500 VDC megger) Noise immunity Square shaped noise by noise simulator (pulse width: 1㎲) ±500V Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Max. Incandescent lamp 10,000 lx Environment_Ambient temperature -10 to 50 ℃, Storage: -15 to 60 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Protection structure IP67 (IEC Standards, except connector of extension cable) Material Case: Polycarbonate, Sensing part: Glass, Cable: Polyvinyl chloride Amplifier unit compatibility BD Series amplifier unit: 1 Weight ≈ 66 g (≈ 228 g)

Read more less

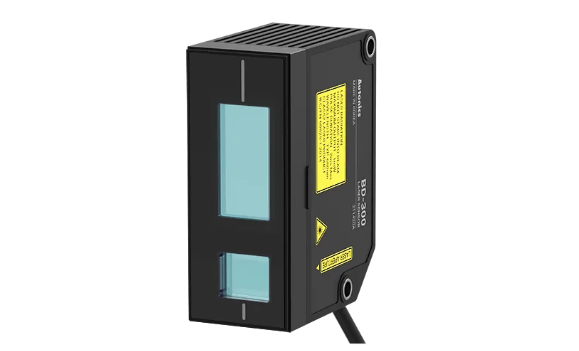

BD-300 Spot diameter : Near(160mm): ≈ 990×1,000 ㎛Reference(300mm): ≈ 490×510 ㎛Far(450mm): ≈ 365×355 ㎛ Resolution : 20 ㎛ Reference distance : 300mm Max. measurement range : 160 ~ 450 mm Linearity : ± 0.25% of F.S. Spot diameter Near(160mm): ≈ 990×1,000 ㎛Reference(300mm): ≈ 490×510 ㎛Far(450mm): ≈ 365×355 ㎛ Resolution 20 ㎛ Reference distance 300mm Max. measurement range 160 ~ 450 mm Linearity ± 0.25% of F.S. Temperature Characteristics 0.08% of F.S./℃ Power voltage Using power from the amplifier unit. Light source Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) Light Source_Optical method Diffuse reflection Light Source_Laser class Class 2 (IEC/EN), Class II (FDA (CDRH) CFR Part 1002) Light Source_Output ≤ 1 mW Laser Pulse duration Max. 2ms Operation indicator Power indicator: red LED, Laser emission indicator: green LED,NEAR/FAR indicator: green LED Insulation resistance ≥ 20 MΩ (500 VDC megger) Noise immunity Square shaped noise by noise simulator (pulse width: 1㎲) ±500V Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Max. Incandescent lamp 10,000 lx Environment_Ambient temperature -10 to 50℃, storage: -15 to 60℃ Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Protection structure IP67 (IEC Standards, except connector of extension cable) Material Front case: AL, Rear case: PC, Cable: PVC, Sensing part: Glass Amplifier unit compatibility BD Series amplifier unit: 1 Weight ≈ 151 g (≈ 330 g)

Read more less

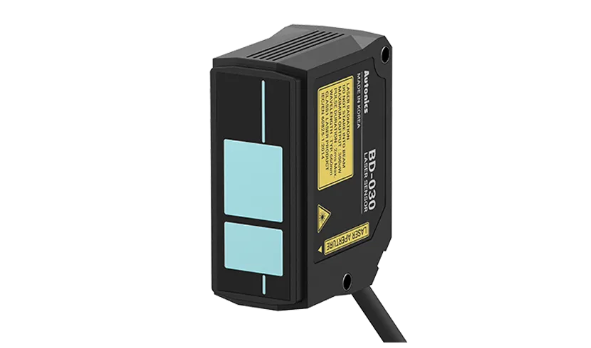

BD-030 Spot diameter : Near(25mm): Approx. 290×790 ㎛Reference(30mm): Approx. 240×660 ㎛Far(35mm): Approx. 190×450 ㎛ Resolution : 1㎛ Reference distance : 30mm Max. measurement range : 20 to 40mm Linearity : 0.1% F.S. (in 25 to 35mm) Spot diameter Near(25mm): Approx. 290×790 ㎛Reference(30mm): Approx. 240×660 ㎛Far(35mm): Approx. 190×450 ㎛ Resolution 1㎛ Reference distance 30mm Max. measurement range 20 to 40mm Linearity 0.1% F.S. (in 25 to 35mm) Temperature Characteristics 0.05% F.S./℃ Power voltage Using power from the amplifier unit. Light source Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) Light Source_Optical method Diffuse reflection Light Source_Laser class Class 1 (IEC/EN), Class I (FDA(CDRH) CFR Part 1002) Laser Pulse duration Max. 2ms Light Source_Output Max. 300㎼ Operation indicator Power indicator: red LED, Laser emission indicator: green LED,NEAR/FAR indicator: green LED Insulation resistance ≥ 20 MΩ (500 VDC megger) Noise immunity Square shaped noise by noise simulator (pulse width: 1㎲) ±500V Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Max. Incandescent lamp 10,000 lx Environment_Ambient temperature -10 to 50 ℃, Storage: -15 to 60 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Protection structure IP67 (IEC Standards, except connector of extension cable) Material Case: Polycarbonate, Sensing part: Glass, Cable: Polyvinyl chloride Amplifier unit compatibility BD Series amplifier unit: 1 Weight ≈ 56 g (≈ 209 g)

Read more less
