Autonics

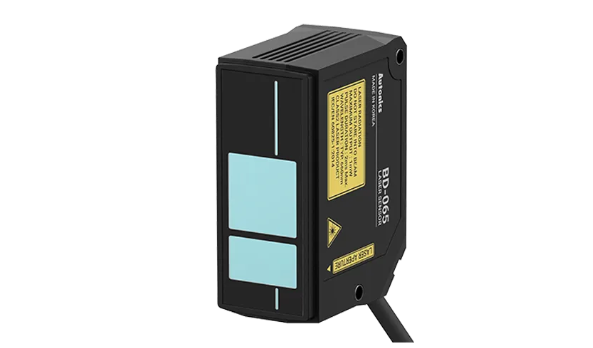

BD-065 Spot diameter : Near(55mm): Approx. 360×1590 ㎛Reference(65mm): Approx. 290×1180 ㎛Far(75mm): Approx. 210×830 ㎛ Resolution : 2㎛ Reference distance : 65mm Max. measurement range : 50 to 80mm Linearity : 0.1% F.S. (in 55 to 75mm) Spot diameter Near(55mm): Approx. 360×1590 ㎛Reference(65mm): Approx. 290×1180 ㎛Far(75mm): Approx. 210×830 ㎛ Resolution 2㎛ Reference distance 65mm Max. measurement range 50 to 80mm Linearity 0.1% F.S. (in 55 to 75mm) Temperature Characteristics 0.06% F.S./℃ Power voltage Using power from the amplifier unit. Light source Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) Light Source_Optical method Diffuse reflection Light Source_Laser class Class 2 (IEC/EN), Class II (FDA(CDRH) CFR Part 1002) Laser Pulse duration Max. 2ms Light Source_Output Max. 1㎽ Operation indicator Power indicator: red LED, Laser emission indicator: green LED,NEAR/FAR indicator: green LED Insulation resistance ≥ 20 MΩ (500 VDC megger) Noise immunity Square shaped noise by noise simulator (pulse width: 1㎲) ±500V Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Max. Incandescent lamp 10,000 lx Environment_Ambient temperature -10 to 50 ℃, Storage: -15 to 60 ℃ (no freezing or condensation) Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Protection structure IP67 (IEC Standards, except connector of extension cable) Material Case: Polycarbonate, Sensing part: Glass, Cable: Polyvinyl chloride Amplifier unit compatibility BD Series amplifier unit: 1 Weight ≈ 68 g (≈ 233 g)

Read more less

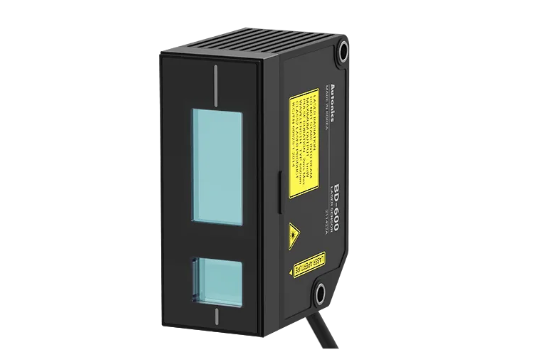

BD-600 Spot diameter : Near(250mm): ≈ 1,140×1,175 ㎛Reference(600mm): ≈ 860×830 ㎛Far(1,000mm): ≈ 800×775 ㎛ Resolution : 40 ㎛ Reference distance : 600mm Max. measurement range : 250 ~ 1,000 mm Linearity : ± 0.25% of F.S. (250 ~ 600 mm)± 0.5% of F.S. (600 ~ 1,000 mm) Spot diameter Near(250mm): ≈ 1,140×1,175 ㎛Reference(600mm): ≈ 860×830 ㎛Far(1,000mm): ≈ 800×775 ㎛ Resolution 40 ㎛ Reference distance 600mm Max. measurement range 250 ~ 1,000 mm Linearity ± 0.25% of F.S. (250 ~ 600 mm)± 0.5% of F.S. (600 ~ 1,000 mm) Temperature Characteristics 0.08% of F.S./℃ Power voltage Using power from the amplifier unit. Light source Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) Light Source_Optical method Diffuse reflection Light Source_Laser class Class 2 (IEC/EN), Class II (FDA (CDRH) CFR Part 1002) Light Source_Output ≤ 1 mW Laser Pulse duration Max. 2ms Operation indicator Power indicator: red LED, Laser emission indicator: green LED,NEAR/FAR indicator: green LED Insulation resistance ≥ 20 MΩ (500 VDC megger) Noise immunity Square shaped noise by noise simulator (pulse width: 1㎲) ±500V Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times Environment_Ambient illumination Max. Incandescent lamp 10,000 lx Environment_Ambient temperature -10 to 50℃, storage: -15 to 60℃ Environment_Ambient humidity 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) Protection structure IP67 (IEC Standards, except connector of extension cable) Material Front case: AL, Rear case: PC, Cable: PVC, Sensing part: Glass Amplifier unit compatibility BD Series amplifier unit: 1 Weight ≈ 153 g (≈ 332 g)

Read more less

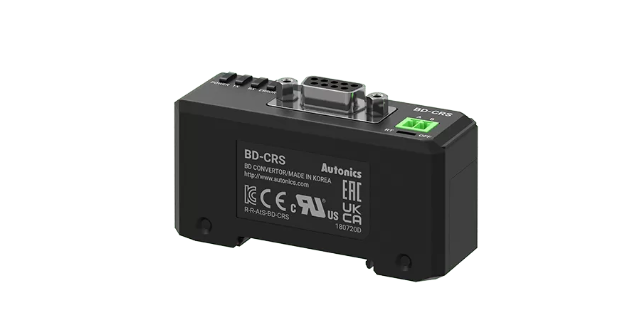

BD-CRS Power voltage : Using power from the amplifier unit. Power consumption : Max. 2.3W Communication function : RS-232C, RS-485 Communication speed : 9600, 19200, 38400, 115200bps (default) Indication : 4 LED status indicators Power voltage Using power from the amplifier unit. Power consumption Max. 2.3W Communication function RS-232C, RS-485 Communication speed 9600, 19200, 38400, 115200bps (default) Indication 4 LED status indicators Function • Real-time monitoring• Executes every BD-Series feature and sets parameter by external device (Master) Environment_Ambient temperature -10 to 50℃, storage: -15 to 60℃ Environment_Ambient humidity Under 85%RH, storage: under 85%RH Vibration 1.5mm amplitude at frequency of 10 to 50Hzin each X, Y, Z direction for 2 hours Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times Protection structure IP40 (IEC Standards) Material Case: Polycarbonate Accessories Side connector, Connector for RS485 Sold separately Communication converter (SCM-38I, SCM-US48I, SCM-WF48) Approval Weight※ Weight Approx. 91g (approx. 49g)

Read more less

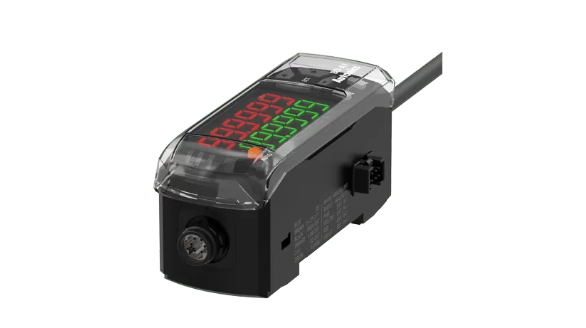

BD-A1 Power consumption : Max. 2800mW (30VDC) Control input : No-voltage input Judgment output : NPN or PNP open collector output (Load current: Max. 100mA) Alarm output : NPN or PNP open collector output (Load current: Max. 100mA) Analog voltage output : -5 - 5 V, 0 - 5 V, 1 - 5 V (resistance: 100 Ω, ± 0.05% F.S., at 10 V) Analog current output : ) 4 - 20 mA (load resistance: ≤ 350 Ω, ± 0.2% F.S., at 16 mA) Residual voltage : NPN: Max. 1.5V, PNP: Max. 2.5V Power voltage 10-30VDC ±10% (When connecting BD-C Series communication converter, 12-30VDC) Power consumption Max. 2800mW (30VDC) Control input No-voltage input Judgment output NPN or PNP open collector output (Load current: Max. 100mA) Alarm output NPN or PNP open collector output (Load current: Max. 100mA) Analog voltage output -5 - 5 V, 0 - 5 V, 1 - 5 V (resistance: 100 Ω, ± 0.05% F.S., at 10 V) Analog current output ) 4 - 20 mA (load resistance: ≤ 350 Ω, ± 0.2% F.S., at 16 mA) Residual voltage NPN: Max. 1.5V, PNP: Max. 2.5V Protection circuit Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit Response time 0.33, 0.5, 1, 2, 5 ms (5-step adjustment) Min. display unit [BD-030 / 065 / 100] 1 ㎛[BD-300 / 600] 10 ㎛ Display method Dual display by 6-digit, 11-segment LED Display range [BD-030 / 065 / 100] ± 99.999 to ± 99 mm (4-step paramete set)[BD-300 / 600] ± 999.99 to ± 999 mm (3-step parameter set) Display cycle Approx. 100ms Insulation resistance ≥ 20 MΩ (500 VDC megger) Noise immunity Square shaped noise by noise simulator (pulse width: 1 ㎲) ± 500 V Dielectric strength Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute Vibration 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times Environment_Ambient temperature -10 to 50 ℃, Storage: -15 to 60 ℃ (no freezing or condensation) Environment_Ambient humidity Under 85%RH, storage: under 85%RH Protection structure IP40 (IEC Standards) Material Case: Polycarbonate, Cover: Polycarbonate, Cable: Polyvinyl chloride Connection method Connector type Supported sensor head Sensor head (BD-□) Supported comunication converter Communication converter (BD-C) Weight 126 g (≈ 228 g)

Read more less

FT-320-05R Type : Standard type(bolt type) Sensing distance : 110mm Min. sensing target : Ø0.3mm Allowable bend radius : R1 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃ Type Standard type(bolt type) Sensing distance 110mm Min. sensing target Ø0.3mm Allowable bend radius R1 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type ※The sensing distance is a standard for BF5 Series.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Flexible optical fiber (Multi core): A large number of ultra-fine cores are all surrounded by cladding. Easy to install it in the many places as the change of the intensity of radiation by bending is small.Break-resistant optical fiber: The fiber units contain a large number of independent fine fibers, by ensuring a high degree of flexibility. It can be used for moving parts (robot hand) and it is not easily broken.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series.

Read more less

FT-320-06B Type : Standard type(bolt type) Sensing distance : 110mm Min. sensing target : Ø0.3mm Allowable bend radius : R5 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃   Type Standard type(bolt type) Sensing distance 110mm Min. sensing target Ø0.3mm Allowable bend radius R5 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type ※The sensing distance is a standard for BF5 Series.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Flexible optical fiber (Multi core): A large number of ultra-fine cores are all surrounded by cladding. Easy to install it in the many places as the change of the intensity of radiation by bending is small.Break-resistant optical fiber: The fiber units contain a large number of independent fine fibers, by ensuring a high degree of flexibility. It can be used for moving parts (robot hand) and it is not easily broken.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series.

Read more less

FT-420-10H Type : Standard type(bolt type) Sensing distance : 760mm Min. sensing target : Ø0.1mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -40 to 105℃ Type Standard type(bolt type) Sensing distance 760mm Min. sensing target Ø0.1mm Allowable bend radius R25 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 105℃ Sensing type Through-beam type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series.

Read more less

FTC-1520-06B Type : Cylinder type Sensing distance : 110mm Min. sensing target : Ø0.3mm Allowable bend radius : R5 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃   Type Cylinder type Sensing distance 110mm Min. sensing target Ø0.3mm Allowable bend radius R5 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Flexible optical fiber (Multi core): A large number of ultra-fine cores are all surrounded by cladding. Easy to install it in the many places as the change of the intensity of radiation by bending is small.Break-resistant optical fiber: The fiber units contain a large number of independent fine fibers, by ensuring a high degree of flexibility. It can be used for moving parts (robot hand) and it is not easily broken.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series.

Read more less

FTC-220-05R Type : Cylinder type Sensing distance : 110mm Min. sensing target : Ø0.3mm Allowable bend radius : R1 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃   Type Cylinder type Sensing distance 110mm Min. sensing target Ø0.3mm Allowable bend radius R1 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type ※The sensing distance is a standard for BF5 Series.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Flexible optical fiber (Multi core): A large number of ultra-fine cores are all surrounded by cladding. Easy to install it in the many places as the change of the intensity of radiation by bending is small.Break-resistant optical fiber: The fiber units contain a large number of independent fine fibers, by ensuring a high degree of flexibility. It can be used for moving parts (robot hand) and it is not easily broken.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series.

Read more less

FTC-320-10 Type : Cylinder type Sensing distance : 150mm Min. sensing target : Ø1mm Allowable bend radius : R30 Cable length : 2m Environment_Ambient temperature : -40 to 70℃ Type Cylinder type Sensing distance 150mm Min. sensing target Ø1mm Allowable bend radius R30 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series.

Read more less

FTCS-220-05 Type : Cylinder+SUS type(SUS length 15mm) Sensing distance : 150mm Min. sensing target : Ø0.5mm Allowable bend radius : R10(SUS part R10) Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃   Type Cylinder+SUS type(SUS length 15mm) Sensing distance 150mm Min. sensing target Ø0.5mm Allowable bend radius R10(SUS part R10) Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series.

Read more less

FTCSN-2520-05 Type : Ø2.47mm Side view Sensing distance : 120mm Min. sensing target : Ø0.0125mm Allowable bend radius : R15 Cable length : 2m Environment_Ambient temperature : -40 to 60℃   Type Ø2.47mm Side view Sensing distance 120mm Min. sensing target Ø0.0125mm Allowable bend radius R15 Cable length 2m Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type

Read more less

FTFU-210-05R Type : Flat type/Top view(up) Sensing distance : 110mm Min. sensing target : Ø0.04mm Allowable bend radius : R1 Cable length : 1m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃   Type Flat type/Top view(up) Sensing distance 110mm Min. sensing target Ø0.04mm Allowable bend radius R1 Cable length 1m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type

Read more less

FTLU-310-10R Type : L type/Top view(height 12.2mm) Sensing distance : 500mm Min. sensing target : Ø0.06mm Allowable bend radius : R1 Cable length : 1m Environment_Ambient temperature : -40 to 60℃   Type L type/Top view(height 12.2mm) Sensing distance 500mm Min. sensing target Ø0.06mm Allowable bend radius R1 Cable length 1m Free cut Free cut Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type ※The sensing distance is a standard for BF5 Series.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series. Downloads

Read more less

FTLU1-310-10R Type : L type/Top view(height 17.2mm) Sensing distance : 500mm Min. sensing target : Ø0.06mm Allowable bend radius : R1 Cable length : 1m Environment_Ambient temperature : -40 to 60℃   Type L type/Top view(height 17.2mm) Sensing distance 500mm Min. sensing target Ø0.06mm Allowable bend radius R1 Cable length 1m Free cut Free cut Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type

Read more less

FTS-320-05 Type : SUS type(SUS length 90mm) Sensing distance : 150mm Min. sensing target : Ø0.5mm Allowable bend radius : R10(SUS part R10) Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃   Type SUS type(SUS length 90mm) Sensing distance 150mm Min. sensing target Ø0.5mm Allowable bend radius R10(SUS part R10) Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series.

Read more less

FTS-420-10 Type : SUS type(SUS length 90mm) Sensing distance : 500mm Min. sensing target : Ø1mm Allowable bend radius : R30(SUS part 10R) Cable length : 2m Environment_Ambient temperature : -40 to 70℃   Type SUS type(SUS length 90mm) Sensing distance 500mm Min. sensing target Ø1mm Allowable bend radius R30(SUS part 10R) Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※FT-420-13 was discontinued. FT-420-13B is replacement.※Glass type is for BF5, BF4 Series.

Read more less

FTS1-320-05 Type : SUS type(SUS length 35mm) Sensing distance : 150mm Min. sensing target : Ø0.5mm Allowable bend radius : R10(SUS part R10) Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type SUS type(SUS length 35mm) Sensing distance 150mm Min. sensing target Ø0.5mm Allowable bend radius R10(SUS part R10) Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type

Read more less

FTS2-320-05 Type : SUS type(SUS length 45mm) Sensing distance : 150mm Min. sensing target : Ø0.5mm Allowable bend radius : R10(SUS part R10) Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type SUS type(SUS length 45mm) Sensing distance 150mm Min. sensing target Ø0.5mm Allowable bend radius R10(SUS part R10) Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Through-beam type

Read more less

FTW11-210-10R Type : Area type(sensing height 11mm) Sensing distance : 750mm Min. sensing target : Ø0.07mm Allowable bend radius : R2 Cable length : 1m Environment_Ambient temperature : -40 to 60℃ Type Area type(sensing height 11mm) Sensing distance 750mm Min. sensing target Ø0.07mm Allowable bend radius R2 Cable length 1m Free cut Free cut Environment_Ambient temperature -40 to 60℃ Sensing type Through-beam type

Read more less

GT-410-12V2 Type : Standard type(bolt type) Sensing distance : 340mm(FU-VA01)/420mm(FU-VA02) Min. sensing target : Ø0.1mm(FU-VA01)/Ø0.1mm(FU-VA02) Allowable bend radius : R25 Cable length : 1m Environment_Ambient temperature : -60 to 250℃   Type Standard type(bolt type) Sensing distance 340mm(FU-VA01)/420mm(FU-VA02) Min. sensing target Ø0.1mm(FU-VA01)/Ø0.1mm(FU-VA02) Allowable bend radius R25 Cable length 1m Environment_Ambient temperature -60 to 250℃ Sensing type Through-beam type

Read more less

GTL-410-12V2 Type : L type Sensing distance : 340mm(FU-VA01)/420mm(FU-VA02) Min. sensing target : Ø0.2mm(FU-VA01)/Ø0.15mm(FU-VA02) Allowable bend radius : R25 Cable length : 1m Environment_Ambient temperature : -60 to 250℃   Type L type Sensing distance 340mm(FU-VA01)/420mm(FU-VA02) Min. sensing target Ø0.2mm(FU-VA01)/Ø0.15mm(FU-VA02) Allowable bend radius R25 Cable length 1m Environment_Ambient temperature -60 to 250℃ Sensing type Through-beam type

Read more less

GTR-420-12H2 Type : Right-angle Sensing distance : 650mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -60 to 250℃ Type Right-angle Sensing distance 650mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -60 to 250℃ Sensing type Through-beam type

Read more less

GTL-420-12H3 Type : L type Sensing distance : 680mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -60 to 350℃ Type L type Sensing distance 680mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -60 to 350℃ Sensing type Through-beam type

Read more less

GTR-420-12H3 Type : Right-angle Sensing distance : 630mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -60 to 350℃ Type Right-angle Sensing distance 630mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Environment_Ambient temperature -60 to 350℃ Sensing type Through-beam type

Read more less

FD-320-06B Type : Standard type(bolt type) Sensing distance : 35mm Min. sensing target : Ø0.0125mm Allowable bend radius : R5 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃   Type Standard type(bolt type) Sensing distance 35mm Min. sensing target Ø0.0125mm Allowable bend radius R5 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Flexible optical fiber (Multi core): A large number of ultra-fine cores are all surrounded by cladding. Easy to install it in the many places as the change of the intensity of radiation by bending is small.Break-resistant optical fiber: The fiber units contain a large number of independent fine fibers, by ensuring a high degree of flexibility. It can be used for moving parts (robot hand) and it is not easily broken.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FD-320-F1 Type : Standard type(bolt type) Sensing distance : 60mm Min. sensing target : Ø0.03mm Allowable bend radius : R10 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃   Type Standard type(bolt type) Sensing distance 60mm Min. sensing target Ø0.03mm Allowable bend radius R10 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type

Read more less

FD-420-06B Type : Standard type(bolt type) Sensing distance : 35mm Min. sensing target : Ø0.0125mm Allowable bend radius : R5 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃ Type Standard type(bolt type) Sensing distance 35mm Min. sensing target Ø0.0125mm Allowable bend radius R5 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type

Read more less

FD-620-10H Type : Standard type(bolt type) Sensing distance : 300mm Min. sensing target : Ø0.08mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -40 to 105℃ Type Standard type(bolt type) Sensing distance 300mm Min. sensing target Ø0.08mm Allowable bend radius R25 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 105℃ Sensing type Diffuse reflective type

Read more less

FD-620-13B Type : Standard type(bolt type) Sensing distance : 100mm Min. sensing target : Ø0.0125mm Allowable bend radius : R5 Cable length : 2m Environment_Ambient temperature : -40 to 60℃ Type Standard type(bolt type) Sensing distance 100mm Min. sensing target Ø0.0125mm Allowable bend radius R5 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type

Read more less

FD-620-15H1 Type : Standard type(bolt type) Sensing distance : 275mm Min. sensing target : Ø0.08mm Allowable bend radius : R35 Cable length : 2m Environment_Ambient temperature : -40 to 150℃ Type Standard type(bolt type) Sensing distance 275mm Min. sensing target Ø0.08mm Allowable bend radius R35 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 150℃ Sensing type Diffuse reflective type

Read more less

FD-620-F2 Type : Standard type(bolt type) Sensing distance : 120mm Min. sensing target : Ø0.03mm Allowable bend radius : R30 Cable length : 2m Environment_Ambient temperature : -40 to 70℃ Type Standard type(bolt type) Sensing distance 120mm Min. sensing target Ø0.03mm Allowable bend radius R30 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDC-320-05 Type : Cylinder type Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : R15 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type Cylinder type Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius R15 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type

Read more less

FDC-320-06B Type : Cylinder type Sensing distance : 35mm Min. sensing target : Ø0.0125mm Allowable bend radius : R5 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃   Type Cylinder type Sensing distance 35mm Min. sensing target Ø0.0125mm Allowable bend radius R5 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Flexible optical fiber (Multi core): A large number of ultra-fine cores are all surrounded by cladding. Easy to install it in the many places as the change of the intensity of radiation by bending is small.Break-resistant optical fiber: The fiber units contain a large number of independent fine fibers, by ensuring a high degree of flexibility. It can be used for moving parts (robot hand) and it is not easily broken.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDF-210-05R Type : Flat type/Flat view Sensing distance : 30mm Min. sensing target : Ø0.0125mm Allowable bend radius : R1 Cable length : 1m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃ Type Flat type/Flat view Sensing distance 30mm Min. sensing target Ø0.0125mm Allowable bend radius R1 Cable length 1m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type

Read more less

FDFN-210-05R Type : Flat type/Side view Sensing distance : 30mm Min. sensing target : Ø0.0125mm Allowable bend radius : R1 Cable length : 1m Adapter : Adapter Environment_Ambient temperature : -40 to 60℃   Type Flat type/Side view Sensing distance 30mm Min. sensing target Ø0.0125mm Allowable bend radius R1 Cable length 1m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type

Read more less

FDP-320-10 Type : Plastic injection molding type Sensing distance : 120mm Min. sensing target : Ø0.03mm Allowable bend radius : R25 Cable length : 2m Environment_Ambient temperature : -40 to 70℃ Type Plastic injection molding type Sensing distance 120mm Min. sensing target Ø0.03mm Allowable bend radius R25 Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDPF-210-05R Type : Plastic injection molding type Sensing distance : 70mm Min. sensing target : Ø0.08mm Allowable bend radius : R1 Cable length : 1m Adapter : Adapter Environment_Ambient temperature : -30 to 70℃ Type Plastic injection molding type Sensing distance 70mm Min. sensing target Ø0.08mm Allowable bend radius R1 Cable length 1m Free cut Free cut Adapter Adapter Environment_Ambient temperature -30 to 70℃ Sensing type Diffuse reflective type

Read more less

FDR-610-10R Type : Right-angle Sensing distance : 120mm Min. sensing target : Ø0.04mm Allowable bend radius : R1 Cable length : 1m Environment_Ambient temperature : -40 to 60℃ Type Right-angle Sensing distance 120mm Min. sensing target Ø0.04mm Allowable bend radius R1 Cable length 1m Free cut Free cut Environment_Ambient temperature -40 to 60℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for BF5 Series.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDRT-420-02B Type : Right-angle Sensing distance : 230mm Min. sensing target : Ø0.08mm Allowable bend radius : R5 Cable length : 2m Environment_Ambient temperature : -30 to 70℃ Type Right-angle Sensing distance 230mm Min. sensing target Ø0.08mm Allowable bend radius R5 Cable length 2m Free cut Free cut Environment_Ambient temperature -30 to 70℃ Sensing type Diffuse reflective type

Read more less

FDS-420-05 Type : SUS type(SUS length 90mm) Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : 15R(SUS part 10R) Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type SUS type(SUS length 90mm) Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius 15R(SUS part 10R) Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDS2-420-05 Type : SUS type(SUS length 45mm) Sensing distance : 40mm Min. sensing target : Ø0.03mm Allowable bend radius : 15R(SUS part 10R) Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -40 to 70℃ Type SUS type(SUS length 45mm) Sensing distance 40mm Min. sensing target Ø0.03mm Allowable bend radius 15R(SUS part 10R) Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDS2-620-10 Type : SUS type(SUS length 45mm) Sensing distance : 120mm Min. sensing target : Ø0.03mm Allowable bend radius : R25(SUS part R10) Cable length : 2m Environment_Ambient temperature : -40 to 70℃ Type SUS type(SUS length 45mm) Sensing distance 120mm Min. sensing target Ø0.03mm Allowable bend radius R25(SUS part R10) Cable length 2m Free cut Free cut Environment_Ambient temperature -40 to 70℃ Sensing type Diffuse reflective type ※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]※Glass type is for BF5, BF4 Series.

Read more less

FDW10-320-02B Type : Area type Sensing distance : 230mm Min. sensing target : Ø0.08mm Allowable bend radius : R5 Cable length : 2m Environment_Ambient temperature : -30 to 70℃ Type Area type Sensing distance 230mm Min. sensing target Ø0.08mm Allowable bend radius R5 Cable length 2m Free cut Free cut Environment_Ambient temperature -30 to 70℃ Sensing type Diffuse reflective type

Read more less

FDW10T-320-02B Type : Area type Sensing distance : 230mm Min. sensing target : Ø0.08mm Allowable bend radius : R5 Cable length : 2m Environment_Ambient temperature : -30 to 70℃ Type Area type Sensing distance 230mm Min. sensing target Ø0.08mm Allowable bend radius R5 Cable length 2m Free cut Free cut Environment_Ambient temperature -30 to 70℃ Sensing type Diffuse reflective type

Read more less

FLF-310-10V Type : Flat type/Flat view Sensing distance : 60mm(FU-VA01)/70mm(FU-VA02) Min. sensing target : Ø3.9mm(FU-VA01)/Ø3.4mm(FU-VA02) Allowable bend radius : R25 Cable length : 1m Environment_Ambient temperature : -30 to 105℃ Type Flat type/Flat view Sensing distance 60mm(FU-VA01)/70mm(FU-VA02) Min. sensing target Ø3.9mm(FU-VA01)/Ø3.4mm(FU-VA02) Allowable bend radius R25 Cable length 1m Free cut Free cut Environment_Ambient temperature -30 to 105℃ Sensing type Convergent reflective type

Read more less

FLF-320-05 Type : Flat type/Flat view Sensing distance : 8mm Min. sensing target : Ø0.1mm Allowable bend radius : R15 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -30 to 70℃ Type Flat type/Flat view Sensing distance 8mm Min. sensing target Ø0.1mm Allowable bend radius R15 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -30 to 70℃ Sensing type Convergent reflective type

Read more less

FLF-320-05R Type : Flat type/Flat view Sensing distance : 7mm Min. sensing target : Ø0.08mm Allowable bend radius : R1 Cable length : 2m Adapter : Adapter Environment_Ambient temperature : -30 to 70℃ Type Flat type/Flat view Sensing distance 7mm Min. sensing target Ø0.08mm Allowable bend radius R1 Cable length 2m Free cut Free cut Adapter Adapter Environment_Ambient temperature -30 to 70℃ Sensing type Convergent reflective type

Read more less
