Description

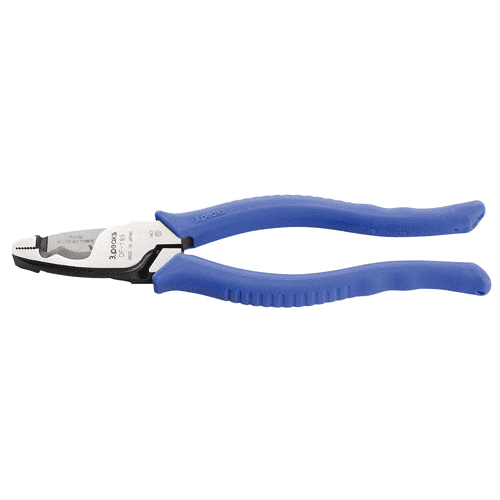

Decided version of VVF line cutting. Easily cut 4 cores (Φ 2.0 mm).
Grasp the cable wire with a long, sharp blade so it can cut 4 VVF cores at once.
With a comfortable sharpness, beautiful cuts can be obtained. We also added the ability to cut the iron wire in the back of the blade.
◦ Tip leading part: It keeps the limit as much as possible. Grab a thin object securely
◦ Handle: Easy to grip and easy to grip, Our unique narrow design
◦ Elastic elastomer resin grip which is familiar to hand
◦ Grip hole for falling prevention strap installation
material |
S58C |
Hardness (HRC) |
54 ~ 62 (blade part) |
Blade angle |
- - |
Product Code. |
Part number |
Nominal size |
grip |
weight |
Cutting Capacity (mm) |
(mm) |
Material |
Spring |
(g) |
Wire |
Copper Wire |
217-1551 |
DF-195 |
195 |
● |
- |
250 |
2.0 |
2.6 |
217-0127 |
DF-220 |
220 |
● |
- |
310 |
2.0 |
3.2 |
※ grip: ● = elastomer
