3.peaks Wire Clamp Cutters WCC

Description

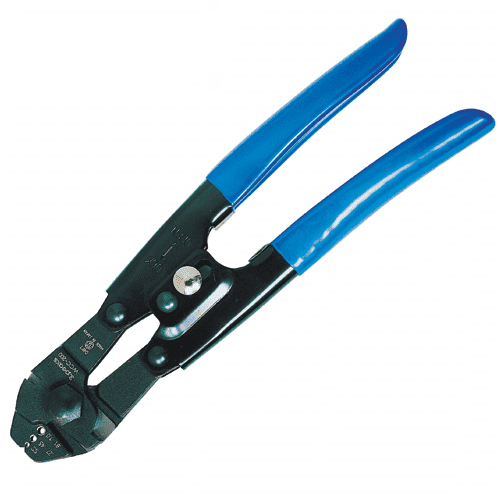

[3PEAKS] Wire Clamp Cutters WCC

Wire rope (3.0 mm) cuttable. Clamp tube crimping function included.

  Cut the wire rope with two blades on the left and right and crimp the various clamp pipes (oval sleeve, Dalma tube, Eight tube) with the tip hole.
  The cutting performance of the two blades is the same, and if it is used alternately, the consumption of the blade can be reduced.
◦ With handle lock
◦ Easy to purchase price, easy to grasp vinyl grip (※ WCC - 200, WCC - 250 - 2 H)
◦ Fall prevention strap mounting hole available (※ WCC - 250 only)
◦ Cutting edge (both ends) with adjustment screw: Corresponding spanner 13 mm

material Vanadium steel
Hardness (HRC) 60 ~ 65 (blade part)
Product Code. Part number Nominal size grip weight Cutting Capacity (mm) Clamping
（mm）  Material Spring （g） Wire mm
217-0604 WCC-200 200 ■  ○  285 1.5 SS.S.0.27~1.0
217-0613 WCC-250 250 ▲  ○  380 3.0 0.27~1.5

※ Grip: ■ = Vinyl ▲ = Steel ○ = Spring

Product form

Wire rope (3.0 mm) cuttable. Clamp tube crimping function included.  Cut the wire rope with two blades on the left... Read more

SKU: 217-0604

$55.75 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    [3PEAKS] Wire Clamp Cutters WCC

    Wire rope (3.0 mm) cuttable. Clamp tube crimping function included.

      Cut the wire rope with two blades on the left and right and crimp the various clamp pipes (oval sleeve, Dalma tube, Eight tube) with the tip hole.
      The cutting performance of the two blades is the same, and if it is used alternately, the consumption of the blade can be reduced.
    ◦ With handle lock
    ◦ Easy to purchase price, easy to grasp vinyl grip (※ WCC - 200, WCC - 250 - 2 H)
    ◦ Fall prevention strap mounting hole available (※ WCC - 250 only)
    ◦ Cutting edge (both ends) with adjustment screw: Corresponding spanner 13 mm

    material Vanadium steel
    Hardness (HRC) 60 ~ 65 (blade part)
    Product Code. Part number Nominal size grip weight Cutting Capacity (mm) Clamping
    （mm）  Material Spring （g） Wire mm
    217-0604 WCC-200 200 ■  ○  285 1.5 SS.S.0.27~1.0
    217-0613 WCC-250 250 ▲  ○  380 3.0 0.27~1.5

    ※ Grip: ■ = Vinyl ▲ = Steel ○ = Spring
