Description

Sensing type	Through-beam type
Sensing Channel	4-channel
Sensing distance	40mm
Sensing target	Opaquematerial of min. Ø4mm
Light source	Infrared LED(940nm)
Response time	Max. 1ms
Power voltage	18-35VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 50mA
Sensitivity adjustment	Fixed
Operation mode	Dark ON
Control output	NPN open collector(individual 4 outputs)
Connection type	Cable type(Ø6, 4m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 65℃, storage: -25 to 70℃
Protection structure	IP65
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case, Cover: ABS
Bracket	H03/H04(G02)
Weight	Approx. 1.5kg(approx. 500g)

Product form

Sensing type Through-beam type Sensing Channel 4-channel Sensing distance 40mm Sensing target Opaquematerial of min. Ø4mm Light source Infrared LED(940nm)... Read more

SKU: BUM4-40D-W-4M/B

$112.15 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

Sensing type	Through-beam type
Sensing Channel	4-channel
Sensing distance	40mm
Sensing target	Opaquematerial of min. Ø4mm
Light source	Infrared LED(940nm)
Response time	Max. 1ms
Power voltage	18-35VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 50mA
Sensitivity adjustment	Fixed
Operation mode	Dark ON
Control output	NPN open collector(individual 4 outputs)
Connection type	Cable type(Ø6, 4m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 65℃, storage: -25 to 70℃
Protection structure	IP65
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case, Cover: ABS
Bracket	H03/H04(G02)
Weight	Approx. 1.5kg(approx. 500g)

Reviews

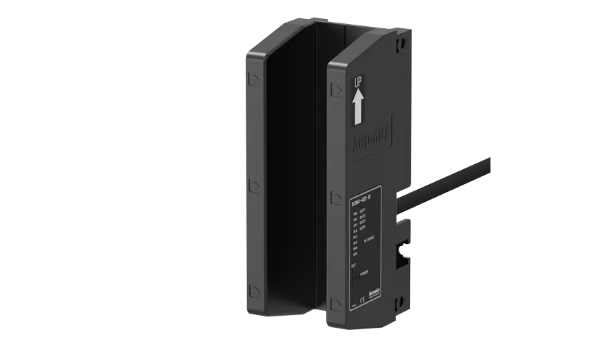

Name: Autonics Photoelectric Sensor, Photoelectric Type BUM4-40D-W-4M/B
Brand: Autonics
SKU: BUM4-40D-W-4M/B
Price: 112.15 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BUM4-40D-W-4M/B
