Description

Installation	Non-flush
Sensing side diameter	Ø30mm
Sensing distance	15mm
Hysteresis(distance)	Max. 10% of sensing distance
Standard sensing target	45×45×1mm(iron)
Response frequency	20Hz
Indicator	Operation indicator (red LED)
Unit weight (packaged weight)	≈ 182 g (≈ 194 g)
Power voltage	100 - 240 VAC~ 50 / 60 Hz, operating voltage: 85 - 264 VAC~
Current specification	Leakage current: Max. 2.5mA
Control output	5 to 200 mA
Residual voltage	Max. 10V
Protection circuit	Surge protection circuit
Insulation resistance	≥ 50 MΩ (500 VDC megger)
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)
Dielectric strength	2,500 VAC~ 50/60 Hz for 1 minute
Vibration	1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours
Shock	500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature	-25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation)
Environment_Ambient humidity	35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
Protection structure	IP67(IEC standard)
Connection	Connector models
Connector type	M12 Connector
Material	Case/Nut: nickel plated brass, washer: nickel plated iron, sensing side: PBT

Industrial proximity sensor for automation systems.

Product form

Installation Non-flush Sensing side diameter Ø30mm Sensing distance 15mm Hysteresis(distance) Max. 10% of sensing distance Standard sensing target 45×45×1mm(iron) Response... Read more

SKU: PRCML30-15AO

$33.68 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Installation	Non-flush
Sensing side diameter	Ø30mm
Sensing distance	15mm
Hysteresis(distance)	Max. 10% of sensing distance
Standard sensing target	45×45×1mm(iron)
Response frequency	20Hz
Indicator	Operation indicator (red LED)
Unit weight (packaged weight)	≈ 182 g (≈ 194 g)
Power voltage	100 - 240 VAC~ 50 / 60 Hz, operating voltage: 85 - 264 VAC~
Current specification	Leakage current: Max. 2.5mA
Control output	5 to 200 mA
Residual voltage	Max. 10V
Protection circuit	Surge protection circuit
Insulation resistance	≥ 50 MΩ (500 VDC megger)
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)
Dielectric strength	2,500 VAC~ 50/60 Hz for 1 minute
Vibration	1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours
Shock	500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature	-25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation)
Environment_Ambient humidity	35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
Protection structure	IP67(IEC standard)
Connection	Connector models
Connector type	M12 Connector
Material	Case/Nut: nickel plated brass, washer: nickel plated iron, sensing side: PBT

Industrial proximity sensor for automation systems.

Reviews

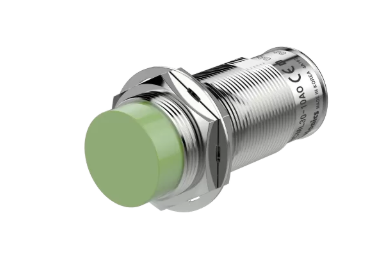

Name: Autonics Proximity Sensor Cylindrical Connector Type Proximity Sensor AC 2-Wire PRCML30-15AO
Brand: Autonics
SKU: PRCML30-15AO
Price: 33.68 USD
Availability: InStock

Autonics Proximity Sensor Cylindrical Connector Type Proximity Sensor AC 2-Wire PRCML30-15AO
