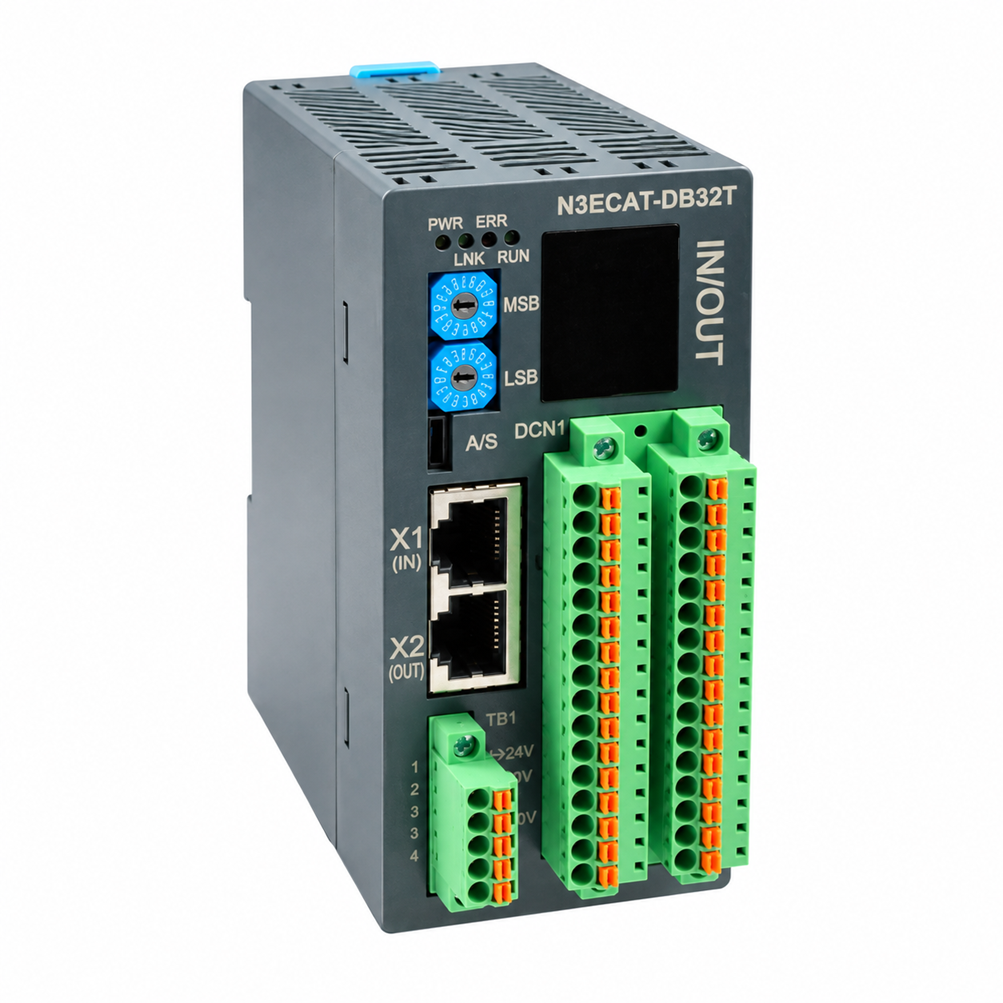

AJINEXTEK N3ECAT-DB32T EtherCAT Slave Digital I/O Module, 16 In / 16 Out, 24VDC

  • VendorAJINEXTEK

Description

The AJINEXTEK N3ECAT-DB32T is an EtherCAT slave module with 32 channels of 24VDC digital I/O: 16 inputs and 16 outputs. It mounts on a standard 35 mm DIN rail and has built-in status LEDs.

Key features

  • 16 digital inputs, photo-coupler isolated (min. 2 mA/ch, 24VDC level)
  • 16 digital outputs, photo-coupler + drive IC (max. 50 mA/ch, 24VDC level)
  • Slave ID set by two hexadecimal rotary switches (00h to FFh)
  • Two RJ45 ports for EtherCAT daisy-chain wiring
  • Status LEDs for power, link, error, run, inputs and outputs

Specifications

Model N3ECAT-DB32T
Network EtherCAT slave
Module function 16 ch digital input / 16 ch digital output
I/O level 24VDC
Input Photo-coupler isolation, min. 2 mA/ch
Output Photo-coupler + drive IC, max. 50 mA/ch
Slave ID setting Hexadecimal rotary switch x 2 (00h to FFh)
LED display Power (yellow), Link (green), Error (red), Run (green), Input (green), Output (red)
Communication connector RJ45 LAN x 2
I/O connector DINKLE 16P (ESC381VM-16P) or Phoenix 16P (MC 1,5/16-STF-3,81) x 2
Power connector DINKLE 5P (ECH350RM-05P) x 1
Power supply / consumption 24VDC / 250 mA
Mounting Standard 35 mm DIN rail
Operating temperature / humidity 0 to 55 °C / 5 to 90% RH (no condensation)
Storage temperature -20 to 70 °C
Dimensions 112 (H) x 90 (D) x 54 (W) mm
Weight 203 g
Product form

The AJINEXTEK N3ECAT-DB32T is an EtherCAT slave module with 32 channels of 24VDC digital I/O: 16 inputs and 16 outputs.... Read more

SKU: N3ECAT-DB32T

$302.51 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    The AJINEXTEK N3ECAT-DB32T is an EtherCAT slave module with 32 channels of 24VDC digital I/O: 16 inputs and 16 outputs. It mounts on a standard 35 mm DIN rail and has built-in status LEDs.

    Key features

    • 16 digital inputs, photo-coupler isolated (min. 2 mA/ch, 24VDC level)
    • 16 digital outputs, photo-coupler + drive IC (max. 50 mA/ch, 24VDC level)
    • Slave ID set by two hexadecimal rotary switches (00h to FFh)
    • Two RJ45 ports for EtherCAT daisy-chain wiring
    • Status LEDs for power, link, error, run, inputs and outputs

    Specifications

    Model N3ECAT-DB32T
    Network EtherCAT slave
    Module function 16 ch digital input / 16 ch digital output
    I/O level 24VDC
    Input Photo-coupler isolation, min. 2 mA/ch
    Output Photo-coupler + drive IC, max. 50 mA/ch
    Slave ID setting Hexadecimal rotary switch x 2 (00h to FFh)
    LED display Power (yellow), Link (green), Error (red), Run (green), Input (green), Output (red)
    Communication connector RJ45 LAN x 2
    I/O connector DINKLE 16P (ESC381VM-16P) or Phoenix 16P (MC 1,5/16-STF-3,81) x 2
    Power connector DINKLE 5P (ECH350RM-05P) x 1
    Power supply / consumption 24VDC / 250 mA
    Mounting Standard 35 mm DIN rail
    Operating temperature / humidity 0 to 55 °C / 5 to 90% RH (no condensation)
    Storage temperature -20 to 70 °C
    Dimensions 112 (H) x 90 (D) x 54 (W) mm
    Weight 203 g
