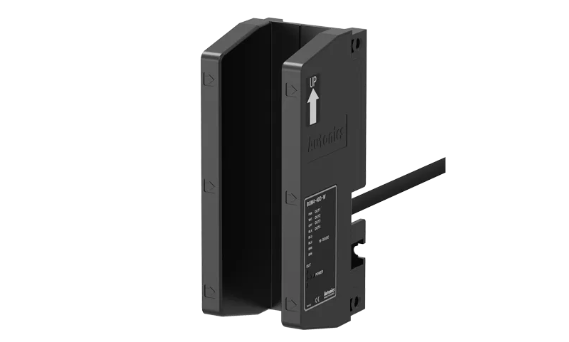

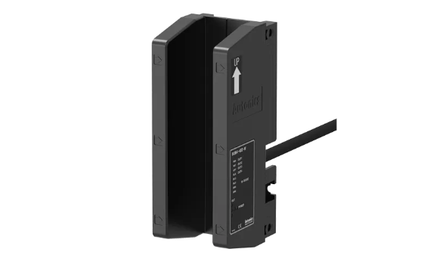

Autonics Photoelectric Sensor, Photoelectric Type BUM4-40D-W-3M/B

Description

Sensing type Through-beam type
Sensing Channel 4-channel
Sensing distance 40mm
Sensing target Opaquematerial of min. Ø4mm
Light source Infrared LED(940nm)
Response time Max. 1ms
Power voltage 18-35VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Max. 50mA
Sensitivity adjustment Fixed
Operation mode Dark ON
Control output NPN open collector(individual 4 outputs)
Connection type Cable type(Ø6, 3m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -25 to 65℃, storage: -25 to 70℃
Protection structure IP65
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case, Cover: ABS
Bracket H03/H04(G02)
Weight Approx. 1.5kg(approx. 500g)
Product form

Sensing type Through-beam type Sensing Channel 4-channel Sensing distance 40mm Sensing target Opaquematerial of min. Ø4mm Light source Infrared LED(940nm)... Read more

SKU: BUM4-40D-W-3M/B

$110.28 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    Sensing type Through-beam type
    Sensing Channel 4-channel
    Sensing distance 40mm
    Sensing target Opaquematerial of min. Ø4mm
    Light source Infrared LED(940nm)
    Response time Max. 1ms
    Power voltage 18-35VDC specialstring ±10%(ripple P-P: max. 10%)
    Current consumption Max. 50mA
    Sensitivity adjustment Fixed
    Operation mode Dark ON
    Control output NPN open collector(individual 4 outputs)
    Connection type Cable type(Ø6, 3m)
    Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature -25 to 65℃, storage: -25 to 70℃
    Protection structure IP65
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Case, Cover: ABS
    Bracket H03/H04(G02)
    Weight Approx. 1.5kg(approx. 500g)
