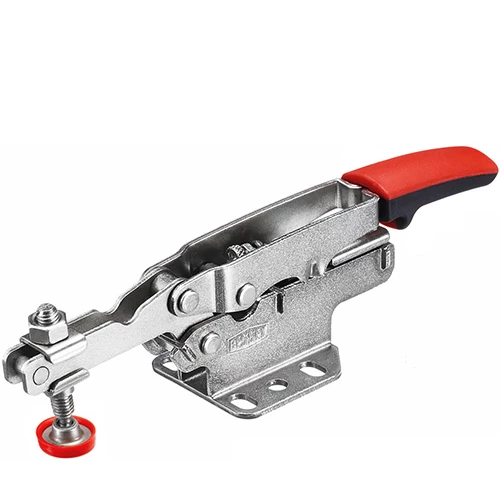

BESSEY Horizontal toggle clamp with open arm and horizontal base plate STC-HH

Description

Products Details

  • In the clamped position, the lever is horizontal
  • Automatic and infinitely variable adjustment of the clamping height up to 35 mm while clamping force remains unchanged – without having to make manual changes to the position of the pressure screws
  • Clamping force is variable up to 2,500 N depending on the adjustment of the set screw in the cantilevered joint
  • Sturdy, tempered metal sheets for a long service life
  • Hole pattern on the base plate designed to facilitate fast and secure clamping set-up for metric and imperial
  • High-quality oil resistant two-component plastic handle
    Reference no. Opening a (mm) Automatic adjustment (mm) Clamping pressure (appr.N) Weight approx. (kg)
    STC-HH20 35 20 1100 0.20
    STC-HH50 40 35 2500 0.38
    STC-HH70 60 35 2500 0.42



    Product form

    Products Details In the clamped position, the lever is horizontal Automatic and infinitely variable adjustment of the clamping height up... Read more

    SKU: 216-1679

    $37.89 Excl. VAT

      • Ships within 5–10 business days
      • Ships from South Korea
      • Export packing available
      • Worldwide shipping
      • Secure payments Paypal
      Need a bulk or multi-brand quotation?

      Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
      Korean brands at ProSource MRO — operated by the same team.

      Request a Bulk Quote →

      Description

      Products Details

      • In the clamped position, the lever is horizontal
      • Automatic and infinitely variable adjustment of the clamping height up to 35 mm while clamping force remains unchanged – without having to make manual changes to the position of the pressure screws
      • Clamping force is variable up to 2,500 N depending on the adjustment of the set screw in the cantilevered joint
      • Sturdy, tempered metal sheets for a long service life
      • Hole pattern on the base plate designed to facilitate fast and secure clamping set-up for metric and imperial
      • High-quality oil resistant two-component plastic handle
        Reference no. Opening a (mm) Automatic adjustment (mm) Clamping pressure (appr.N) Weight approx. (kg)
        STC-HH20 35 20 1100 0.20
        STC-HH50 40 35 2500 0.38
        STC-HH70 60 35 2500 0.42
