Description

Sensing type	Diffuse reflective type
Sensing distance	1m
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 35mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN, PNP open collector simultaneous output
Connection type	Cable type(Ø4, 2.1m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55℃, storage: -40 to 70℃
Protection structure	IP67
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% at rated sensing distance
Material	Case: Polycarbonates, LED indicator: Polycarbonates, Sensing part: Polymethyl methacrylate acrylic
Accessories_Common	Adjustment screwdriver, fixing bracket, M18 fixing nut, fixing cap, M3 bolt, M3 nut
Weight	Approx. 130g(approx. 60g)

Product form

Sensing type Diffuse reflective type Sensing distance 1m Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 12-24VDC ±10%(ripple P-P:... Read more

SKU: BH1M-DDT

$41.05 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Diffuse reflective type
Sensing distance	1m
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 35mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN, PNP open collector simultaneous output
Connection type	Cable type(Ø4, 2.1m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55℃, storage: -40 to 70℃
Protection structure	IP67
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% at rated sensing distance
Material	Case: Polycarbonates, LED indicator: Polycarbonates, Sensing part: Polymethyl methacrylate acrylic
Accessories_Common	Adjustment screwdriver, fixing bracket, M18 fixing nut, fixing cap, M3 bolt, M3 nut
Weight	Approx. 130g(approx. 60g)

Reviews

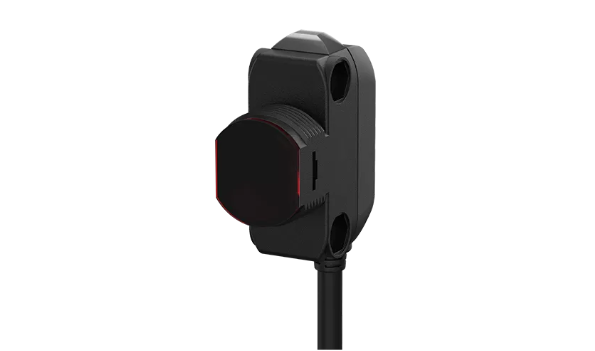

Name: Autonics Photoelectric Sensor, Photoelectric Type BH1M-DDT
Brand: Autonics
SKU: BH1M-DDT
Price: 41.05 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BH1M-DDT
