Description

Sensing type	Narrow beam reflective type
Sensing distance	70 to 130mm
Sensing target	Opaque, Translucent material(min. sensing target: min. Ø0.2mm(copper wire))
Light source	Red LED(650nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	PNP open collector
Connection type	Cable type(Ø3.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55℃, storage: -40 to 70℃
Protection structure	IP65
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% of sensing distance
Min. diameter of transmitting spot	Approx. Ø2.5mm
Material	Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories	Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Weight	Approx. 45g

Product form

Sensing type Narrow beam reflective type Sensing distance 70 to 130mm Sensing target Opaque, Translucent material(min. sensing target: min. Ø0.2mm(copper... Read more

SKU: BJN100-NDT-P

$33.68 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Narrow beam reflective type
Sensing distance	70 to 130mm
Sensing target	Opaque, Translucent material(min. sensing target: min. Ø0.2mm(copper wire))
Light source	Red LED(650nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	PNP open collector
Connection type	Cable type(Ø3.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55℃, storage: -40 to 70℃
Protection structure	IP65
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% of sensing distance
Min. diameter of transmitting spot	Approx. Ø2.5mm
Material	Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories	Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Weight	Approx. 45g

Reviews

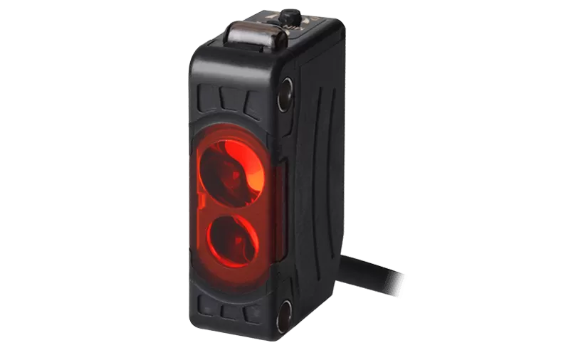

Name: Autonics Photoelectric Sensor, Photoelectric Type BJN100-NDT-P
Brand: Autonics
SKU: BJN100-NDT-P
Price: 33.68 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BJN100-NDT-P
