| Oil resistant/oil proof |
Oil proof type |
| Sensing type |

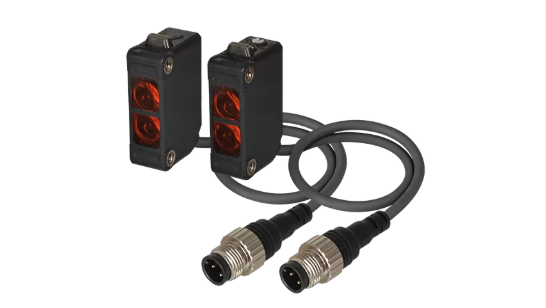

Through-beam type |
| Sensing distance |
10m |
| Sensing target |
Opaque material of min. Ø12mm |
| Light source |
Red LED(660nm) |
| Response time |
Max. 1ms |
| Power voltage |
10-30VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption |
Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment |
Sensitivity adjuster |
| Operation mode |
Light ON/Dark ON(set by switch) |
| Control output |
NPN open collector |
| Connection type |
Ø4mm, 3-wire, 300mm (emitter of through-beam type: Ø4mm, 2-wire, 300mm),
M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) |
| Environment_Ambient illumination |
Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature |
-25 to 60℃, storage: -40 to 70℃ |
| Protection structure |
IP67(IEC standard), IP67F(JEM standard) |
| Environment_Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Material |
Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic |
| Accessories_Common |
Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver |
| Weight |
Approx. 105g(approx. 55g) |
