Description

Oil resistant/oil proof	Oil resistant type
Sensing type	Through-beam type
Sensing distance	15m
Sensing target	Opaque material of min. Ø12mm
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 20mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	PNP open collector
Connection type	Ø4mm, 3-wire, 300mm (emitter of through-beam type: Ø4mm, 2-wire, 300mm), M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60℃, storage: -40 to 70℃
Protection structure	IP67 (IEC standard), IP67G (JEM standard)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic
Accessories_Common	Mounting bracket, M3 bolt: 4, adjustment screwdriver
Weight	Approx. 105g(approx. 55g)

Product form

Oil resistant/oil proof Oil resistant type Sensing type Through-beam type Sensing distance 15m Sensing target Opaque material of min. Ø12mm... Read more

SKU: BJR15M-TDT-W-P

$95.77 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Oil resistant/oil proof	Oil resistant type
Sensing type	Through-beam type
Sensing distance	15m
Sensing target	Opaque material of min. Ø12mm
Light source	Infrared LED(850nm)
Response time	Max. 1ms
Power voltage	10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 20mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	PNP open collector
Connection type	Ø4mm, 3-wire, 300mm (emitter of through-beam type: Ø4mm, 2-wire, 300mm), M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60℃, storage: -40 to 70℃
Protection structure	IP67 (IEC standard), IP67G (JEM standard)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic
Accessories_Common	Mounting bracket, M3 bolt: 4, adjustment screwdriver
Weight	Approx. 105g(approx. 55g)

Reviews

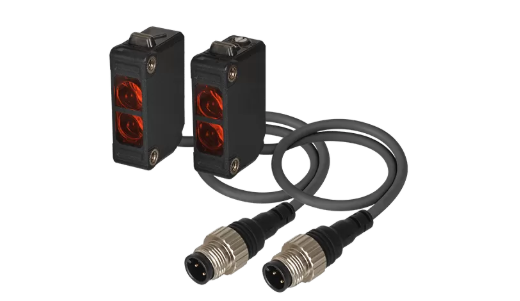

Name: Autonics Photoelectric Sensor, Photoelectric Type BJR15M-TDT-W-P
