Description

Oil resistant/oil proof	Oil proof type
Sensing type	Diffuse reflective type
Sensing distance	1m
Sensing target	Opaque, Translucent material
Light source	Red LED(660nm)
Response time	Max. 1ms
Power voltage	10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN open collector
Connection type	Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60℃, storage: -40 to 70℃
Protection structure	IP67(IEC standard), IP67F(JEM standard)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% at rated sensing distance
Material	Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic
Accessories_Common	Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Weight	Approx. 100g(approx. 50g)

Product form

Oil resistant/oil proof Oil proof type Sensing type Diffuse reflective type Sensing distance 1m Sensing target Opaque, Translucent material Light... Read more

SKU: BJR1M-DDT-F

$60.11 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Oil resistant/oil proof	Oil proof type
Sensing type	Diffuse reflective type
Sensing distance	1m
Sensing target	Opaque, Translucent material
Light source	Red LED(660nm)
Response time	Max. 1ms
Power voltage	10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN open collector
Connection type	Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60℃, storage: -40 to 70℃
Protection structure	IP67(IEC standard), IP67F(JEM standard)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% at rated sensing distance
Material	Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic
Accessories_Common	Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Weight	Approx. 100g(approx. 50g)

Reviews

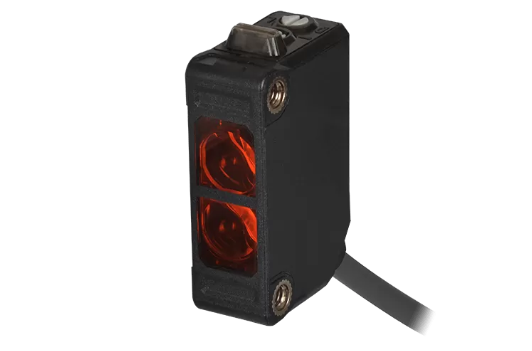

Name: Autonics Photoelectric Sensor, Photoelectric Type BJR1M-DDT-F
Brand: Autonics
SKU: BJR1M-DDT-F
Price: 60.11 USD
Availability: InStock

Autonics Photoelectric Sensor, Photoelectric Type BJR1M-DDT-F

0 out of 5 stars

This product has no reviews yet

Write a review
