Description

Sensing type	Through-beam type
Applicable pipe	Using binding band: Ø6 to 13mm, Using protection bracket: Ø12.7mm (1/2 inch) transparent pipe in 1mm thickness (FEP (fluoroplastic) or with equivalent transparency)
Standard sensing target	Liquid in a pipe
Light source	Infrared LED(950nm)
Response time	Max. 2ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Operation mode	Light ON/Dark ON(set by button)
Control output	NPN open collector
Connection type	Cable type(Ø2.5, 1m)
Environment_Ambient illumination	Sunlight/Incandescent lamp: Max. 3,000lx for each(received illumination)
Environment_Ambient temperature	10 to 55℃, storage: -25 to 65℃
Protection structure	IP64
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Polycarbonate
Accessories	Binding band: 2, Anti-slip tube: 2
Weight	Approx. 50g(approx. 13g)

Product form

Sensing type Through-beam type Applicable pipe Using binding band: Ø6 to 13mm,Using protection bracket: Ø12.7mm (1/2 inch) transparent pipe in... Read more

SKU: BL13-TDT

$53.44 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Through-beam type
Applicable pipe	Using binding band: Ø6 to 13mm, Using protection bracket: Ø12.7mm (1/2 inch) transparent pipe in 1mm thickness (FEP (fluoroplastic) or with equivalent transparency)
Standard sensing target	Liquid in a pipe
Light source	Infrared LED(950nm)
Response time	Max. 2ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Operation mode	Light ON/Dark ON(set by button)
Control output	NPN open collector
Connection type	Cable type(Ø2.5, 1m)
Environment_Ambient illumination	Sunlight/Incandescent lamp: Max. 3,000lx for each(received illumination)
Environment_Ambient temperature	10 to 55℃, storage: -25 to 65℃
Protection structure	IP64
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Polycarbonate
Accessories	Binding band: 2, Anti-slip tube: 2
Weight	Approx. 50g(approx. 13g)

Reviews

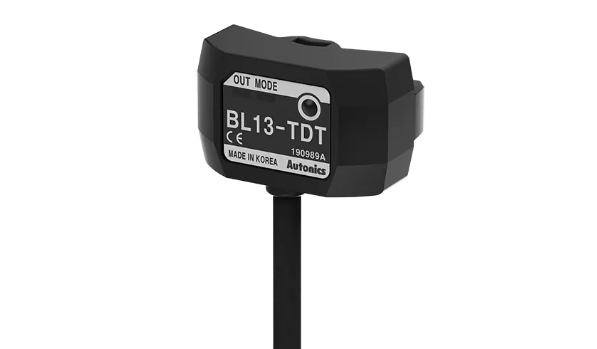

Name: Autonics Photoelectric Sensor, Photoelectric Type BL13-TDT
