Description

Sensing type	Through-beam type
Sensing distance	5m
Sensing target	Opaque material of min. Ø10mm
Light source	Infrared LED(940nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 50mA
Operation mode	Light ON/Dark ON(set by control wire)
Control output	PNP open collector
Connection type	Cable type(Ø5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-10 to 60℃, storage: -25 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Common	Fixing bracket, Bolts, Nuts
Weight	Approx. 180g

Product form

Sensing type Through-beam type Sensing distance 5m Sensing target Opaque material of min. Ø10mm Light source Infrared LED(940nm) Response time... Read more

SKU: BMS5M-TDT-P

$35.55 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

Sensing type	Through-beam type
Sensing distance	5m
Sensing target	Opaque material of min. Ø10mm
Light source	Infrared LED(940nm)
Response time	Max. 1ms
Power voltage	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 50mA
Operation mode	Light ON/Dark ON(set by control wire)
Control output	PNP open collector
Connection type	Cable type(Ø5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-10 to 60℃, storage: -25 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Common	Fixing bracket, Bolts, Nuts
Weight	Approx. 180g

Reviews

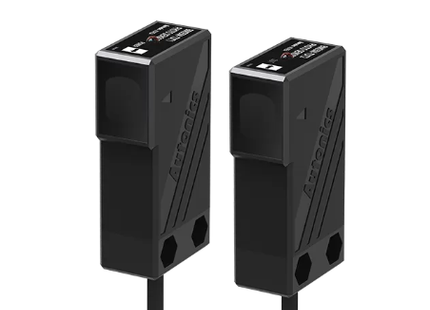

Name: Autonics Photoelectric Sensor, Photoelectric Type BMS5M-TDT-P
