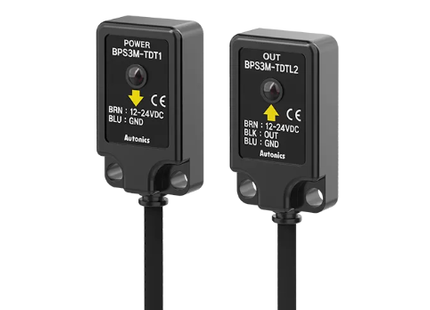

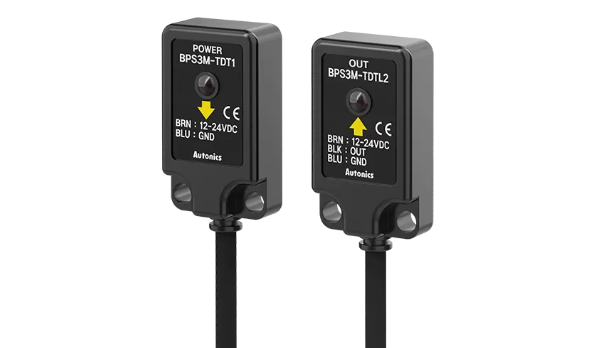

Autonics Photoelectric Sensor, Photoelectric Type BPS3M-TDT-P

Description

Sensing type Through-beam type
Sensing distance 3m
Sensing target Opaque material of min. Ø5mm
Light source Infrared LED(850nm)
Response time Max. 1ms
Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 20mA
Operation mode Dark ON
Control output PNP open collector
Connection type Cable type(Ø3, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -25 to 65℃, storage: -25 to 70℃
Protection structure IP67
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
Material Case: Polycarbonate, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Weight Approx. 66g
Product form

Sensing type Through-beam type Sensing distance 3m Sensing target Opaque material of min. Ø5mm Light source Infrared LED(850nm) Response time... Read more

SKU: BPS3M-TDT-P

$36.23 Excl. VAT

    • International express shipping
      (3–5 days, tracking included)
    • Shipping cost depends on destination & weight
    • Add 1 more item to reduce shipping cost per unit
    • Secure payments Paypal

      Description

      Sensing type Through-beam type
      Sensing distance 3m
      Sensing target Opaque material of min. Ø5mm
      Light source Infrared LED(850nm)
      Response time Max. 1ms
      Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
      Current consumption Emitter/Receiver: Max. 20mA
      Operation mode Dark ON
      Control output PNP open collector
      Connection type Cable type(Ø3, 2m)
      Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
      Environment_Ambient temperature -25 to 65℃, storage: -25 to 70℃
      Protection structure IP67
      Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
      Material Case: Polycarbonate, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
      Weight Approx. 66g
