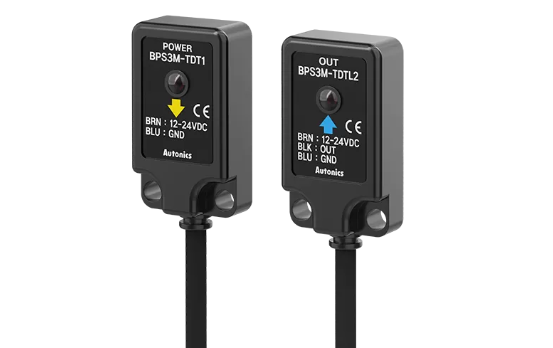

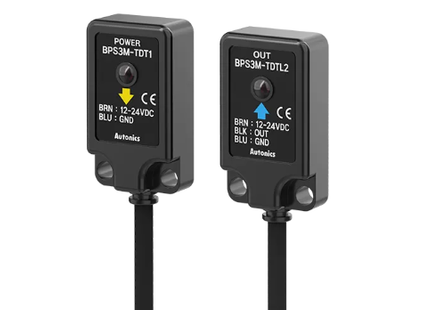

Autonics Photoelectric Sensor, Photoelectric Type BPS3M-TDTL-P

Description

Sensing type Through-beam type
Sensing distance 3m
Sensing target Opaque material of min. Ø5mm
Light source Infrared LED(850nm)
Response time Max. 1ms
Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 20mA
Operation mode Light ON
Control output PNP open collector
Connection type Cable type(Ø3, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -25 to 65℃, storage: -25 to 70℃
Protection structure IP67
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
Material Case: Polycarbonate, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Weight Approx. 66g
Product form

Sensing type Through-beam type Sensing distance 3m Sensing target Opaque material of min. Ø5mm Light source Infrared LED(850nm) Response time... Read more

SKU: BPS3M-TDTL-P

$40.00 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    Sensing type Through-beam type
    Sensing distance 3m
    Sensing target Opaque material of min. Ø5mm
    Light source Infrared LED(850nm)
    Response time Max. 1ms
    Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
    Current consumption Emitter/Receiver: Max. 20mA
    Operation mode Light ON
    Control output PNP open collector
    Connection type Cable type(Ø3, 2m)
    Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature -25 to 65℃, storage: -25 to 70℃
    Protection structure IP67
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
    Material Case: Polycarbonate, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
    Weight Approx. 66g
